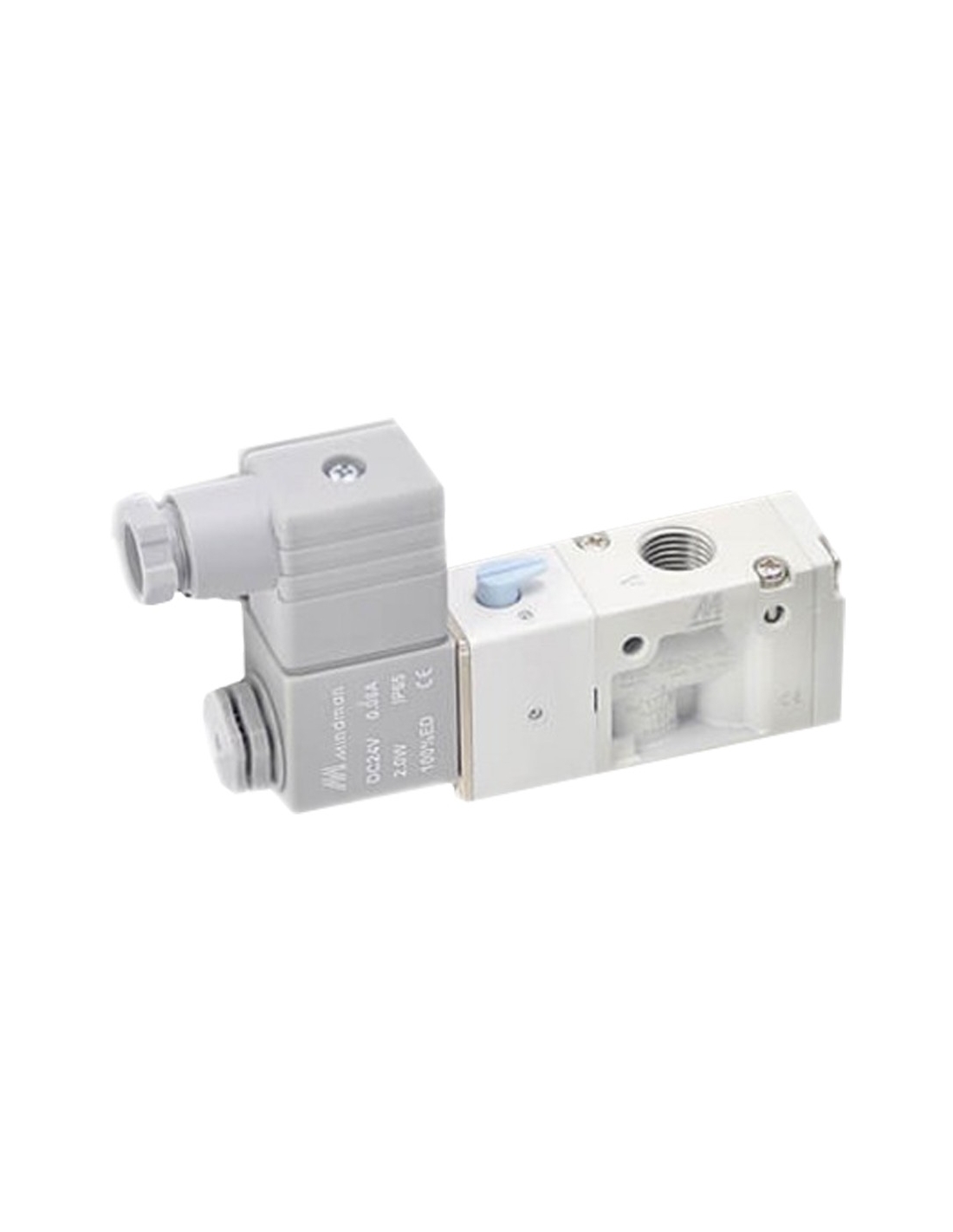

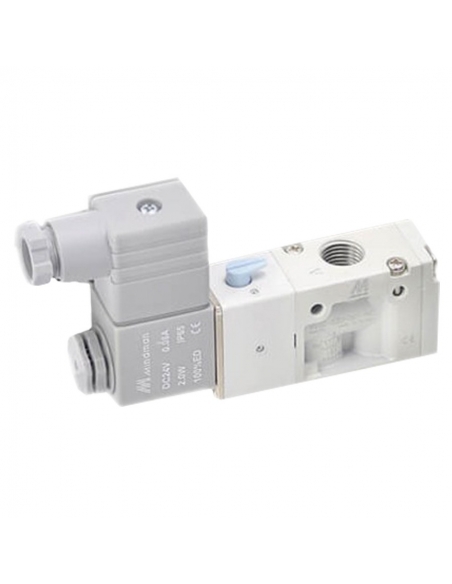

Solenoid valve 1/4 3-way monostable NC 24Vca - Mindman S.220

Delivery in 3 days
€39.33 Tax included

€32.50 tax excl.

1/4" 3-way monostable 3-way shut-down solenoid valve normally closed (NC),operating voltage of 24Vca.

Reference: 281MVSC2203E1NC4
Esquema neumático electroválvula 3 vias monoestable NC

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve of 1/4 3 ways monostable, with 24Vca coil. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

The supply of the solenoid valve includes:

  • Solenoid valve 1/4-3/2 monostable NC.
  • 1 Coil 24Vca
  • 1 x 22mm connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: 281MVSC2203E1NC4
  • Thread Type: G 1/4"
  • Coil voltage: 24Vca
  • Coil power: 4.1 VA
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 7 bar.
  • Minimum working pressure: 2 bar.
  • Working temperature: -10ºC to 60ºC.
  • Effective pitch diameter: 18mm2.
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1/8-3/2 mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
