€0.71 Tax included

€0.59 tax excl.

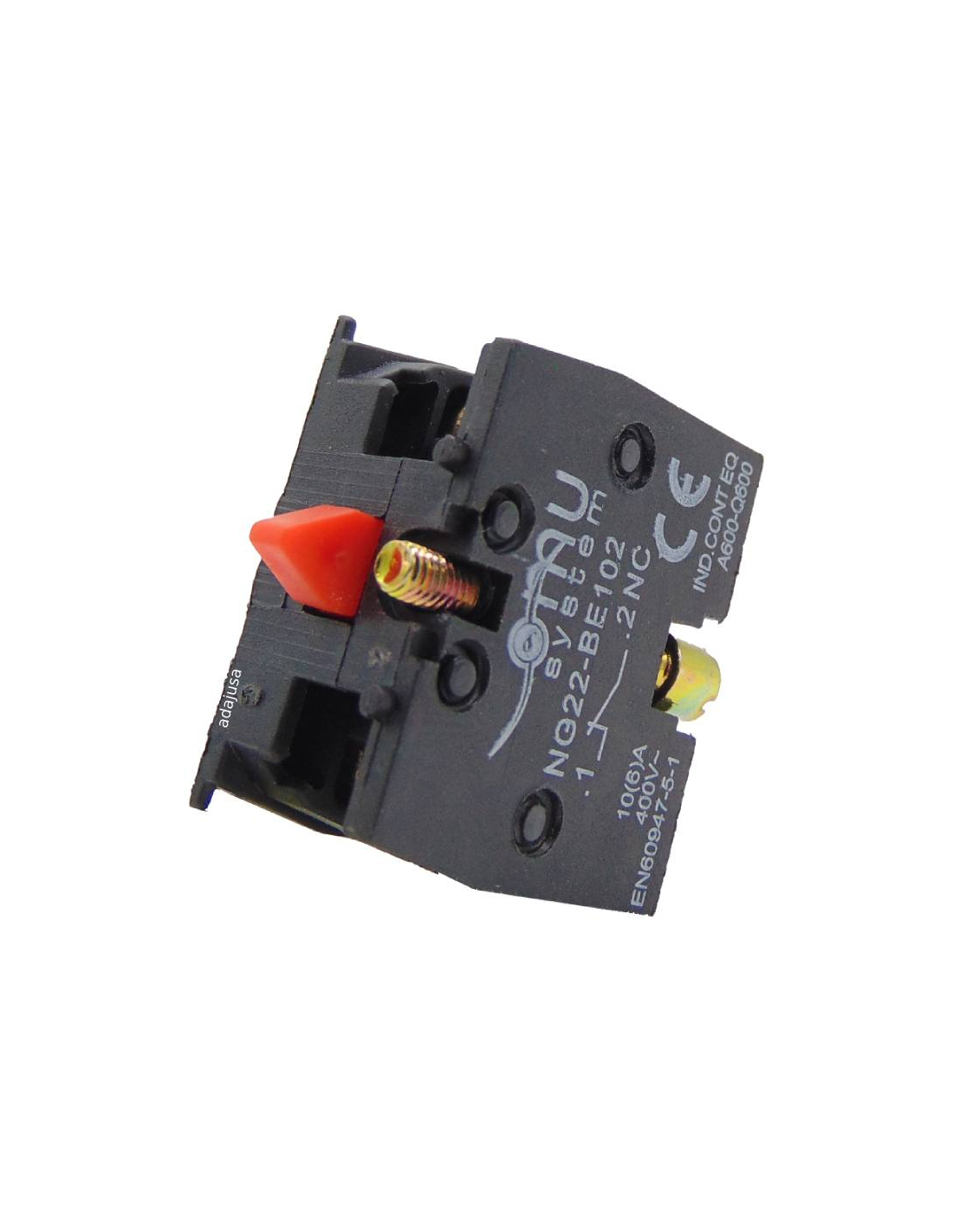

Closed Contact (NC). To be mounted on electric pushbuttons, both plastic and metal, XB2 series.

Reference: NG22-BE102

Closed contact electrical diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Closed contact (NC) to mount on pushbuttons, both plastic and metal. They are valid for the XB2 and HB2 series of pushbuttons.



Characteristics:

  • Manufacturer/Supplier: Mixvill
  • Reference: NG22-BE102
  • Rated working current (Ith): 10A.
  • Working intensity: 50/60Hz (48V): 8A.
    • 50/60Hz (110V): 6A.
    • 50/60Hz (220-240V): 4.5A.
    • 50/60Hz (380-415V): 2.5A.
    • DC13 (24V): 2.5A.
    • DC13 (48V): 1.3A.
    • DC13 (110V): 0.6A.
    • DC13 (220-240V): 0.3A.
  • Limit voltage supported in 1m: 2.5 Kv.
  • Contact resistance: 50 mOhm.
  • Number of electrical maneuvers:
    • Mounted on common and emergency buttons: 1.000.000
    • Mounted on illuminated pushbuttons: 300.000.
    • Others: 100,000
  • Number of mechanical maneuvers:
    • Common and emergency buttons: 500,000
    • Others: 100,000
  • Protection grade: IP20

Material for professional use, install in compliance with the regulations in force at the installation site.
