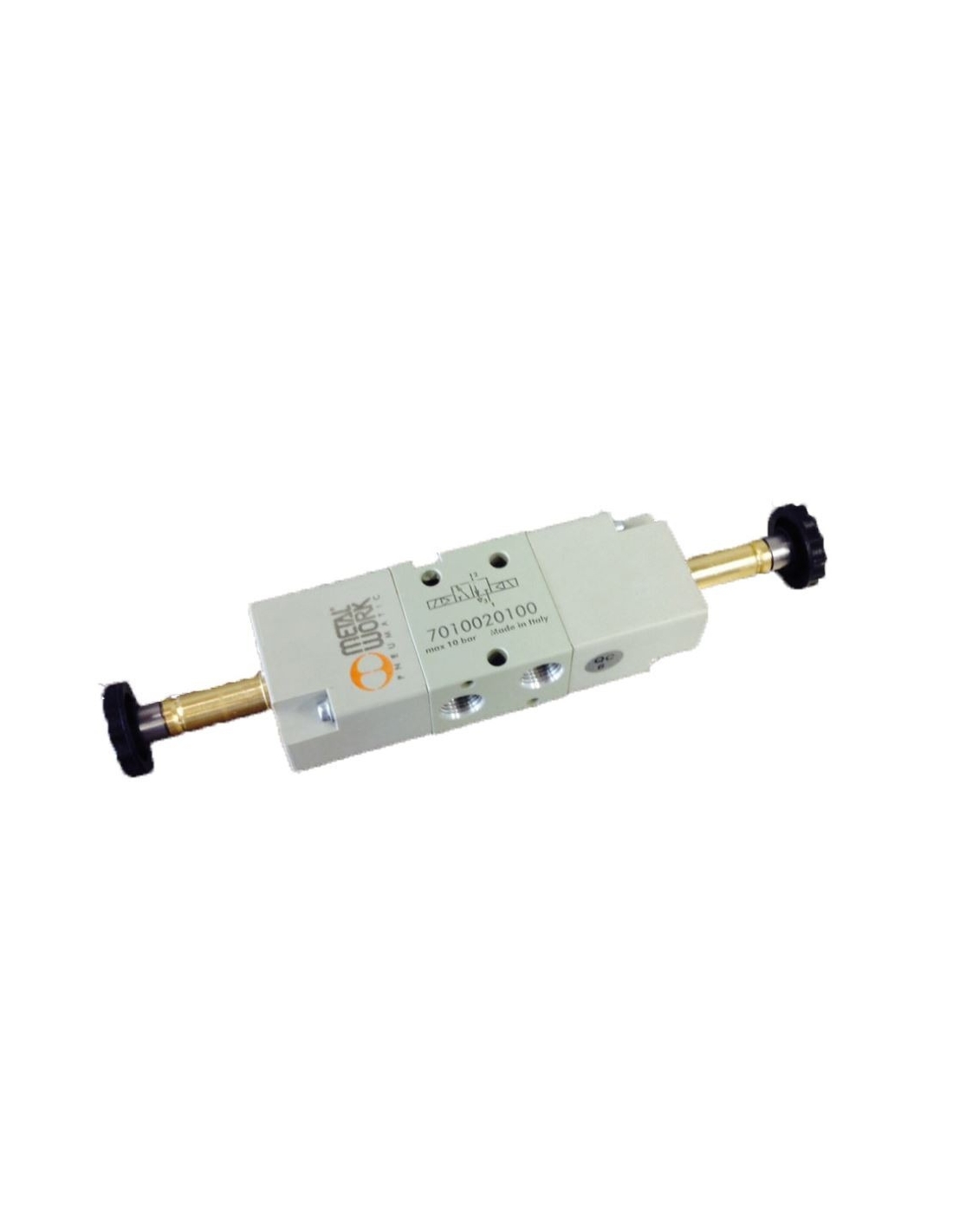

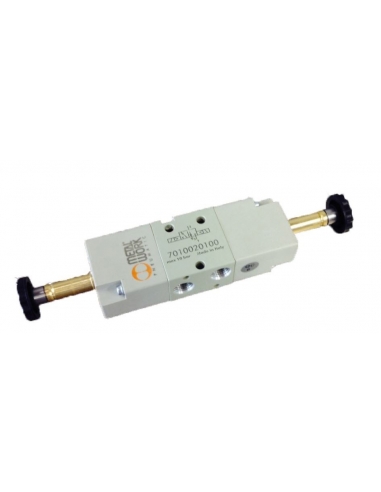

1/4 3-way bistable solenoid valve without coil - Metal Work - adajusa.es
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22

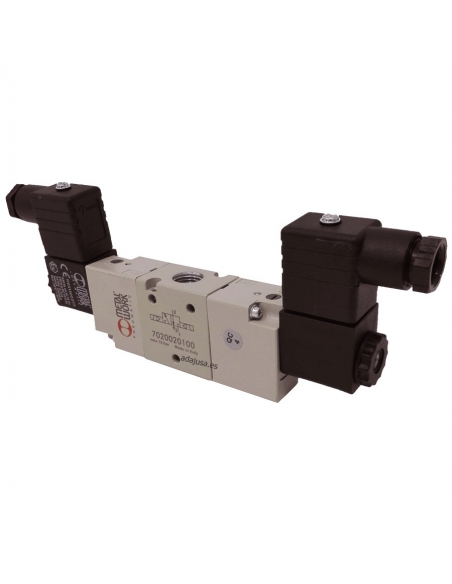

electrovalve 1/4 3-way bistable 110Vac 3,5VA - Metal Work - ADAJUSA

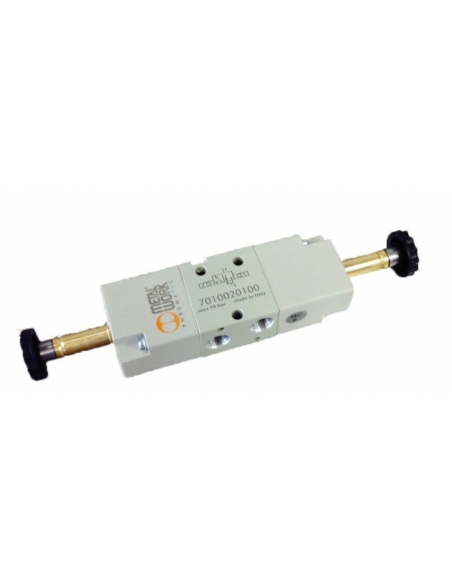

1/4 3-way bistable solenoid valve without coil - Metal Work - adajusa.es
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
electrovalve 1/4 3-way bistable 110Vac 3,5VA - Metal Work - ADAJUSA

Solenoid valve 1/4 3 vias bistable 110Vac 3.5VA - Metal Work

€100.64 Tax included

€83.17 tax excl.

1/4" 3-way bistable pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm
esquema neumatico electrovalvula 3 vias biestables

Logo-Metal-Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 3 bistable roads, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.

Made of aluminum, compact size and high airflow, short response time.

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm.

22mm plastic conetor

Supply includes:

  • 1 1/4 3-way bistable solenoid valve
  • 2 Coil 110Vac 2.5W
  • 2 Connector 22 mm

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: 7020020100 - SOV 33 SOB OO
  • Type: 1/4-5/2 Biestable
  • Thread: G 1/4"
  • Voltage: 110Vac
  • Consumption: 3.5VA
  • Operating pressure: 2.5 bar÷10 bar
  • Minimum working pressure: 2.5 bar
  • Working temperature: -10oC ÷ +60oC
  • Nominal diameter: 5mm.
  • Capacity at 6 bar P 0.5 bar: 400 Nl/min
  • Capacity at 6 bar P 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.152kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
