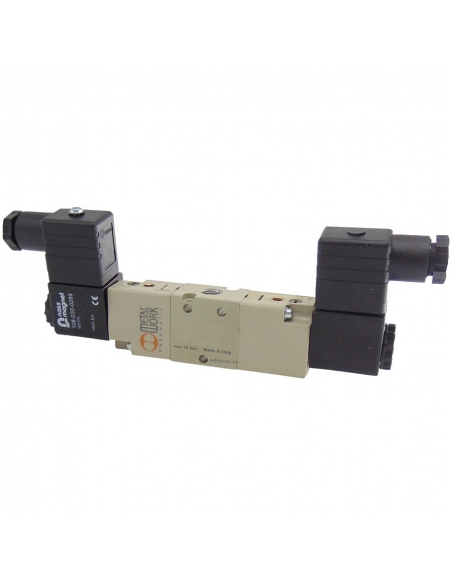

Solenoid valve 1/4 5/3 assisted bistable exhaust centers with coil - Metal Work

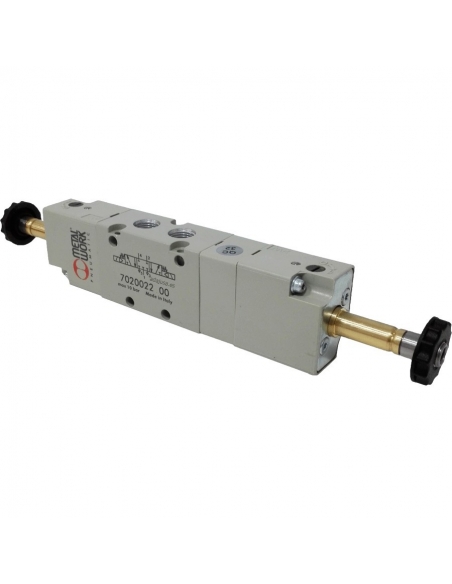

Solenoid valve 1/4 5/3 assisted closed bistable centers - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/4 5/3 assisted bistable exhaust centers with coil - Metal Work
Solenoid valve 1/4 5/3 assisted closed bistable centers - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22

Solenoid valve 1/4 5/3 assisted exhaust closures 110Vac - Metal Work

€135.37 Tax included

€111.88 tax excl.

Solenoid valves of 1/4" of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use. With 110Vac connectors and coils

Esquema electroválvula neumática 5/3 centros escape

Logo-Metal-Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valves of 1/4 " of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.



The supply includes:

  • Solenoid valve 1/4 5/3 assisted exhaust center
  • 2 coils 110 Vac 3.5VA
  • 2 T22 connectors



Characteristics:

  • Provider: Metal Work
  • Solenoid valve reference: 7020022500 - SOV 36 SES OC
  • Operating pressure: 1 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 7.5 mm
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min:1100
  • Monostable TRA/TRR at 6 bar ms: 19/45
  • Bistable TRA/TRR at 6 bar ms: 21/21
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15
  • Voltage: 110 Vac
  • Power: 3.5 VA

Material for professional use, install in compliance with the regulations in force at the place of installation.
