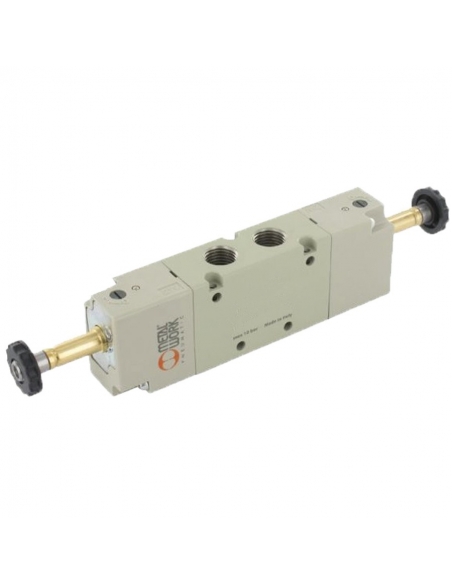

Double solenoid valve 1/4 3/2 assisted tracks NC 24Vdc - Metal Work

€133.72 Tax included

€110.51 tax excl.

Solenoid valve 1/4 3/2 way double output assisted NC (normally closed). With 24 Vdc connectors and coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Double pneumatic solenoid valve 1/4" 3/2 way NC assisted. The solenoid valve is normally closed (NC), i.e. no voltage on the coil, the inlet is not connected to the outlet, i.e. no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, there is air circulation between the inlet and outlet of the solenoid valve .

Delivery includes:
  • Double solenoid valve 1/4" 3/2 assisted NC
  • 2 Coils 24 Vdc 2 W
  • 2 Connectors T22

Technical characteristics:

      • Manufacturer Metal Work
      • Part number: Metal Work: SOV 38 SES NC Code: 7020023400
      • Thread type: G 1/4
      • Bistable bar: 2.5 ÷ 10
      • Minimum assistance pressure bar: 2.5
      • Operating temperature °C: -10 ÷ +60
      • Nominal diameter mm: 7.5
      • Conductance C Nl/min - bar: 264.26
      • Critical ratio b bar/bar: 0.27
      • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
      • Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
      • TRA/TRR monostable at 6 bar ms: 19/45
      • TRA/TRR bistable at 6 bar ms: 21/21
      • Tension tolerances %: -10 ÷ +15
      • Class of isolation: F 155
      • Voltage: 24 Vdc
      • Power: 2 W

    Equipment for professional use, install in compliance with the regulations in force at the place of installation.
