Motor single-phase 0.55Kw 0.75hp 230V 3000 rpm high starting torque, Flange B3 foot
Motor single-phase 0.55Kw 0.75hp 230V 3000 rpm high starting torque, Flange B3 foot

Single-phase motor 0.55Kw 0.75HP 230V 3000 rpm high starting torque, Flange B3 foot

€111.99 Tax included

€92.55 tax excl.

Single-phase electric motor 0.55kW (0.75HP) 230V 3000 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SL7122B3
  • Voltage: 230Vac 50Hz.
  • Power: 0.55Kw - 0.75HP
  • Type: High boot torque.
  • Number of poles: 2.
  • Revs: 3000 rpm.
  • Flange: B3 foot
  • Shaft diameter: 14mm.
  • Size: 71M2
  • Energy efficiency: IE1.

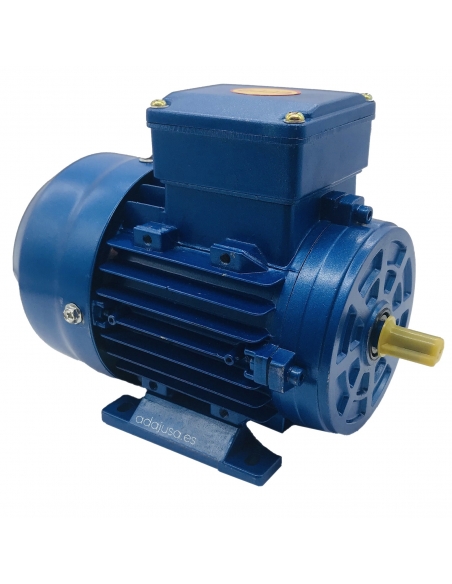

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Single-phase electric motor 0.55kw (0.75HP) 230Vac 50Hz , 2 poles (3000 rpm), B3-legged flange, high starting torque with centrifugal circuit breaker.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

The start-up system with centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.

Features:

  • Reference: SL7122B3
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0.55Kw (0.75HP).
  • High start torque.
  • Number of poles: 2 (3000 rpm).
  • Nominal intensity (In): 3.45A
  • Starting intensity (Ia): 20
  • Revs: 2790 rpm.
  • Yield: 73%
  • Power factor (Cos): 0.95
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 2.2
  • Permanent capacitor: 16uF/450V
  • Starter capacitor: 100uF/250V
  • Service: permanent S1
  • Degree of protection: IP55.
  • Fastening type: Flange B3 foot
  • Shaft Diameter: .14mm
  • Enclosure Size: 71(712)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 76.
  • Weight: 7.4 Kg.
  • CE marking.

Dimensiones motores monofasicos B3

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.
