Single-phase motor 3Kw 4HP 230V 3000 rpm high starting torque, Flange B3 foot

€309.13 Tax included

255.48 tax excl.

SL100L2B3

Single-phase electric motor 3kW (4HP) 230V 3000 rpm Flange B3 foot, high starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SL-100L-2 B3
  • Voltage: 230Vac 50Hz.
  • Power: 3Kw - 4HP
  • Type: High boot torque.
  • Number of poles: 2.
  • Revs: 3000 rpm.
  • Flange: B3 foot
  • Shaft diameter: 28mm.
  • Size: 100(100L)
  • Energy efficiency: IE1.

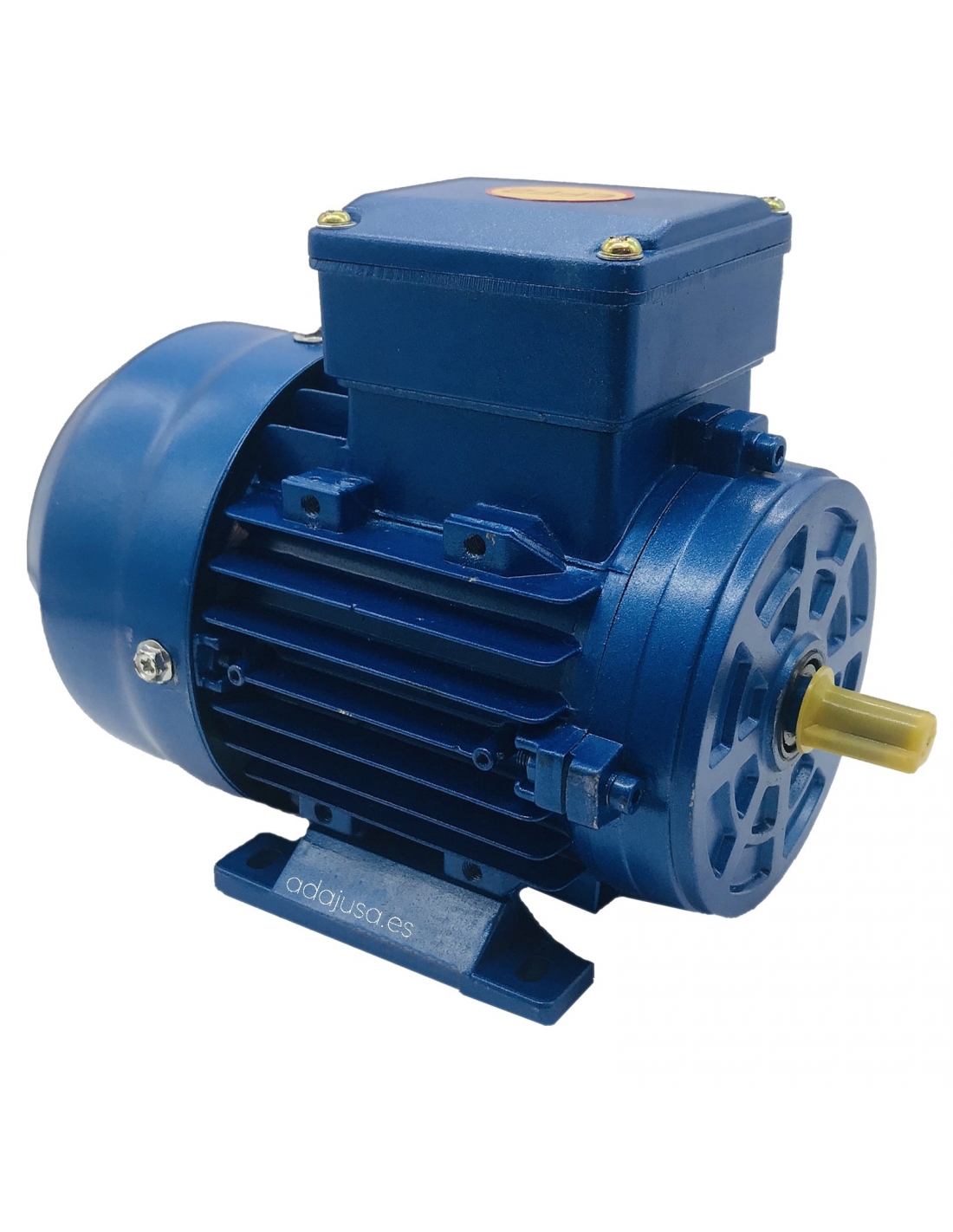

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Single-phase electric motor 3kw (4HP) 230Vac 50Hz , 2 poles (3000 rpm), B3-legged flange, high starting torque with centrifugal circuit breaker.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

The start-up system with centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SL-100L-2 B3
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 3Kw (4HP).
  • High start torque.
  • Number of poles: 2 (3000 rpm).
  • Nominal intensity (In): 16.6A
  • Starting intensity (Ia): 95
  • Revs: 2830 rpm
  • Yield: 80%
  • Power factor (Cos): 0.98
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.8
  • Starting torque / Nominal torque (Ts/Tn): 2.3
  • Permanent capacitor: 60uF/450V
  • Starter capacitor: 400uF/300V
  • Service: permanent S1
  • Degree of protection: IP55.
  • Fastening type: Flange B3 foot
  • Shaft Diameter: 28mm
  • Enclosure Size: 100(100L)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 88.
  • Weight: 25 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B3

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Brida B3 (Patas) a que se refiere con esto??? no entiendo
Answer

Buenos días,

Es el tipo de fijación, esta esta normalizada. Le recomiendo contacte con un tecnico para la sustitución de su motor.

Saludos

angel gallart defez on 08/11/2018 22:56:05
Question
Buenas tardes Me hacia falta saber medidas exteriores del motor, y si puede ser con brida b5 en vez de b3, Muchas gracias
Answer

Buenas tardes,

Este tipo de motores esta disponible en bridas B3 - B5  y B14, seleecionelo en la sección correspondiente.

Con relación a las dimensiones, puede usted descargarse desde la pagina de productos, la información técnica de motores, para esto situese en la parte inferior de la ficha y pulse sobre la opción: "Descargas", se iniciara la descarga de un fichero pdf.

Localice el tamaño de la carcasa y el tipo de brida, y tendrá todas las dimensiones del motor, son validas para los motores trifásicos y monofásicos normalizados IEC.

En concreto, para esta potencia de motor, le corresponde una carcasa tamaño 100.

Saludos

Joaquín Cobo on 12/27/2017 21:51:17
