Timer 0.1-30 sec. switch-off delay for contactors TR1D/TR1E Series

€13.94 Tax included

11.52 tax excl.

TR7DR2

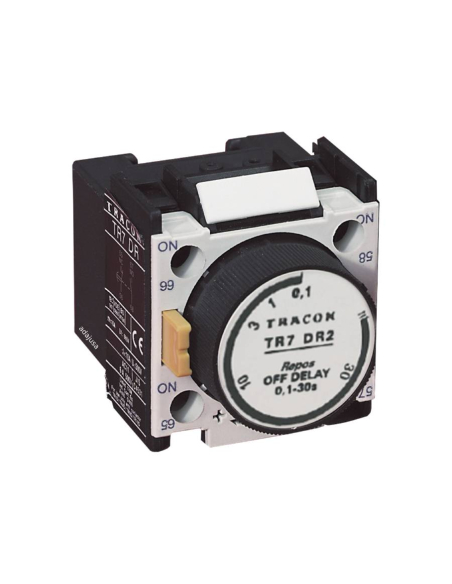

Block timer from 0.1 to 30 seconds for switch-off delay, front mounting on TR1D and TR1E series contactors.




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Block timer from 0.1 to 30 seconds for the switch-off delay. Front mounting on contactor, it has 1 open contact and 1 closed contact (1NO + 1NC).

Once the contactor is deactivated, the timer contact remains activated until the time "t" elapses.




This contact block is valid for TR1D and TR1E series contactors.



Characteristics:


  • Manufacturer/Supplier: Tracon
  • Setting range: 0.1 ... 30 sec.
  • Contacts1 open contact and 1 closed contact (1NO + 1NC)
  • Mounting mode: Front
  • Rated operating voltage (Ue): 660V
  • Rated insulation voltage (Ui): 690V
  • Rated thermal current (Ith): 10A
  • Nominal operating current (Ie): 2A
  • Working temperature: -25ºC to +50ºC
  • Degree of protection: IP20



Dimensions




Material for professional use, install in compliance with the regulations in force at the place of installation.
