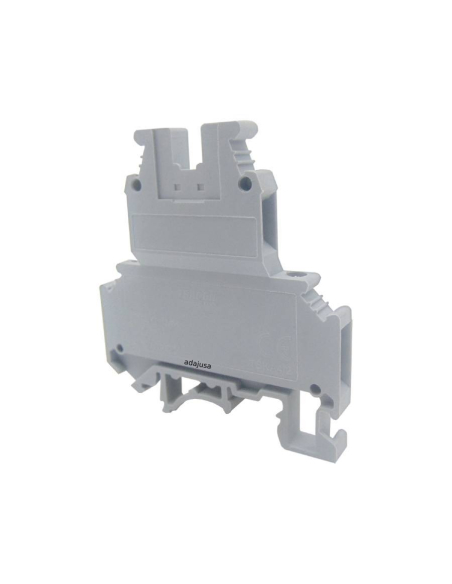

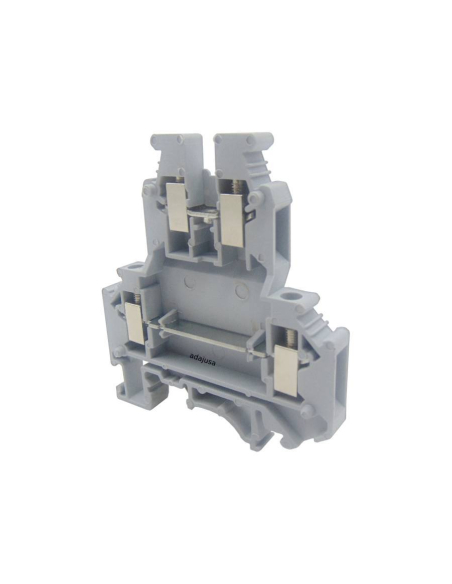

Terminal double-decker 2.5 mm gray TSKA Series
€1.46
Tax included
1.21 tax excl.
TSKA2,5/2
Terminal 2.5mm double-deck gray for DIN rail, screw connection and tightening by clamp. Quick installation and use for general applications.
Part number: TSKA2,5/2
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Terminal 2.5mm double-height electrical connection cable for DIN-rail mounting with lateral wiring in gray color. Screw connection and tightening by clamp. Suitable for general applications where high reliability and easy installation are required.
Compact size, highly heat-resistant, self-extinguishing polyamide plastic housing (according to UL94-V0).
Technical characteristics:
- Manufacturer/Supplier: Tracon
- Ordering Number: TSKA2,5/2
- Terminal color: Gray
- Maximum voltage: 500V
- Maximum current: 32A
- Thin conductor cross-section with terminal: 0.2 - 2.5mm²
- Solid conductor cross-section: 0.2 - 4mm²
- Connection type: Screw
- Material: Polyamide
- Standards: EN 60947-7-1, EN 60947-7-2
W: 5,5mm, L: 56,5mm, H: 62mm, M: M3
Material for professional use, install in compliance with the regulations in force at the place of installation.
Questions
Question
Admite puentes entre bornas? Ambos pisos? Según la fotografía parece que sólo el piso superior. Pueden confirmar si sólo uno o los dos o ninguno?
Answer
Estimado cliente,
Gracias por su consulta. En relación con la borna de doble piso de 2,5 mm en color gris, Serie TSKA, le confirmamos que solo el piso superior admite el uso de puentes entre bornas. El piso inferior no permite la inserción de puentes estándar.
Este diseño es habitual en bornas de doble nivel donde solo una sección está preparada para interconexión mediante puenteado.
Todos nuestros productos deben ser instalados por personal cualificado. Le recomendamos revisar las especificaciones técnicas del modelo antes de realizar el pedido.
Quedamos a su disposición para cualquier otra duda.
Atentamente,
Adajusa
hctor
on
07/09/2025 20:58:41
