Terminal 6 mm gray TSKA Series
Terminal 6 mm gray TSKA Series
Terminal 6 mm gray TSKA Series
Terminal 6 mm gray TSKA Series

Terminal 6 mm gray TSKA Series

€0.56 Tax included

€0.46 tax excl.

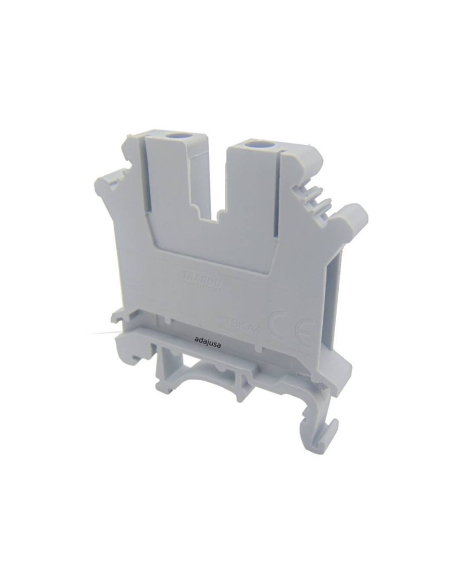

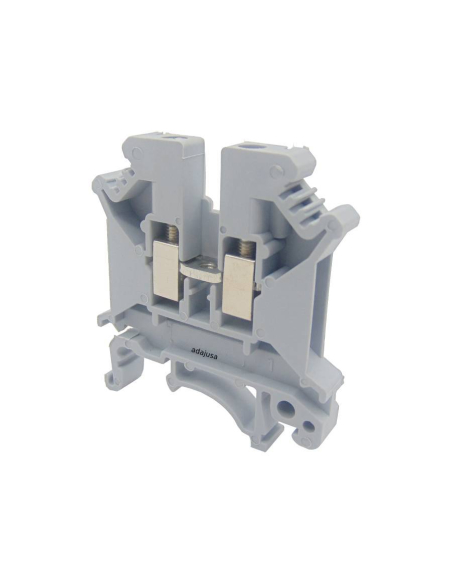

Terminal gray 6mm for DIN rail, screw connection and tightening by clamp. Quick installation and use for general applications.

Part number: TSKA6


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Terminal 6mm gray 6mm electrical connection for DIN rail mounting with lateral wiring. Screw connection and tightening by clamp. Suitable for general applications where high reliability and easy installation are required.

Compact size, housing made of highly heat-resistant, self-extinguishing polyamide plastic (according to UL94-V0).


Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: TSKA6
  • Terminal color: Gray
  • Maximum voltage: 800V
  • Maximum current: 57A
  • Thin conductor cross-section with ferrule: 0.2 - 6mm²
  • Solid conductor cross-section: 0.2 - 10mm²
  • Connection type: Screw
  • Material: Polyamide
  • Standards: EN 60947-7-1, EN 60947-7-2


W: 8.5mm, L: 43mm, H: 46mm, M: M4



Material for professional use, install in compliance with the regulations in force at the place of installation.
