€11.39 Tax included

€9.41 tax excl.

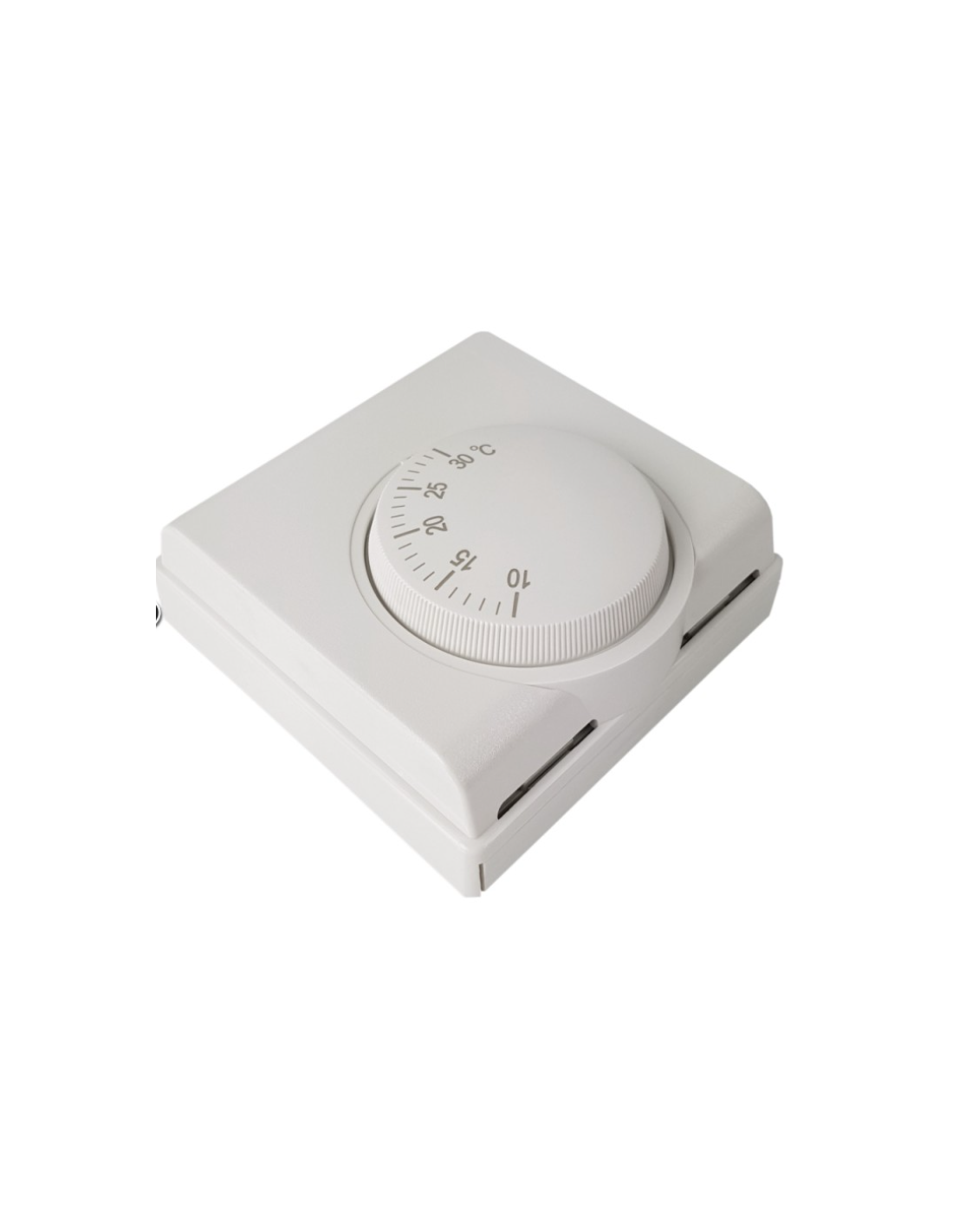

Mechanical ambient thermostat for the control and regulation of temperature in rooms and homes.

Reference: MT-2

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple room thermostat for temperature control and regulation in rooms and homes, surface mounting.

It is recommended to install it at an approximate height of 1.5 meters, in a room of habitual use. It must not be directly exposed to drafts or direct heat sources. Easy installation.

The thermostat measures the temperature of the room and is able to turn the contact on or off depending on the measurement taken. If the room temperature is below the set temperature, the thermostat closes the NO contact between 1 and 4 and opens the NC contact between 1 and 3. If the temperature is higher than the set temperature, the thermostat opens the contact between 1 and 3 and closes the contact between 1 and 4.


Specifications:

  • Supplier/Manufacturer: Mixvil
  • Reference: MT-2
  • Manual adjustment with rotary selector
  • Simple and precise temperature control
  • Adjustment range: 10oC to 30oC
  • Adjustment interval: 1orC
  • Switching temperature difference: -2orC to +20orC
  • Supply voltage: 230 VAC, 50Hz / 10(3)A
  • Dimensions: 83x83x36 mm
  • Degree of protection: IP20
  • Sensor Type: Gas Filled Silicone

Connection diagram:

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
Material for professional use, install in compliance with current regulations at the place of installation.
