Valve 1/2 5-way monostable - Metal Work

€147.57 Tax included

€121.96 tax excl.

Pneumatic valve 1/2 5 ways monostable.

Reference: 7030011100

Logotipo metal work

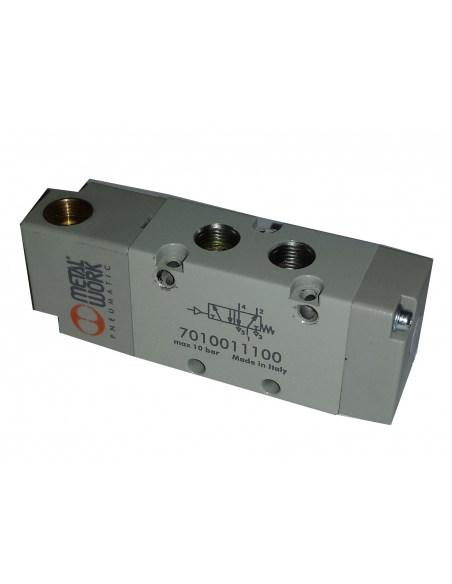

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve 1/2 5 ways monostable.

  • Manufacturer: Metal Work.
  • Reference: PNV45PNSOO Code: 7030011100
  • Operating pressure bar: Empty ÷ 10
  • Minimum monostable drive pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 15
  • Conductance C Nl/min · bar: 971.43
  • B bar/bar critical ratio: 0.43
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 3200
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 4600
  • Monostable TRA/TRR at 6 bar ms: 16/80
  • Bistable TRA/TRR at 6 bar ms: 25/25

For other models, consult.
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
