€124.23 Tax included

€102.67 tax excl.

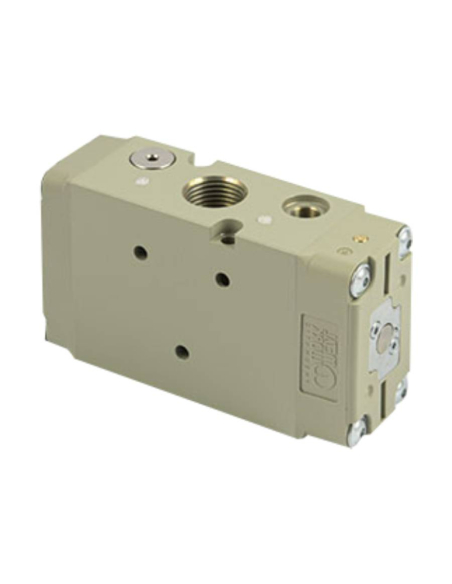

Pneumatic valve 1/2 3 ways monostable normally open (NO).

Reference: 7030010400

Logotipo metal work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Normally open 1/2 3-way monostable pneumatic valve (NO).

  • Manufacturer: Metal Work.
  • Reference: PNV45PNSNO Code: 7030010400.
  • Operating pressure bar: Empty ÷ 10
  • Minimum drive pressure monostable bar: 2.5
  • Operating temperature C: -10 ÷ +60
  • Nominal diameter mm: 15
  • Conductance C Nl/min ? bar: 971.43
  • Critical relationship b bar/bar: 0.43
  • Flow rate at 6 bar P 0.5 bar Nl/min: 3200
  • Flow rate at 6 bar P 1 bar Nl/min: 4600
  • TRA/TRR monostable at 6 bar ms: 16/80
  • TRA/TRR bistable at 6 bar ms: 25/25

For other models consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
