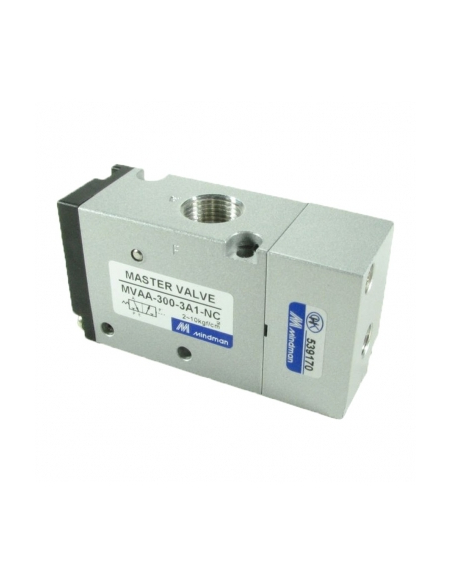

Pneumatic valve 1/2 3-way monostable normally open (NO)

Reference: 281MVAA4603A1NO

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

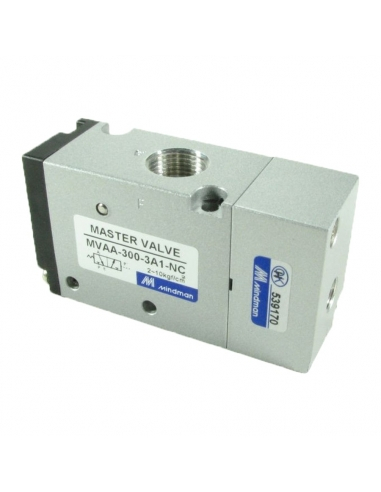

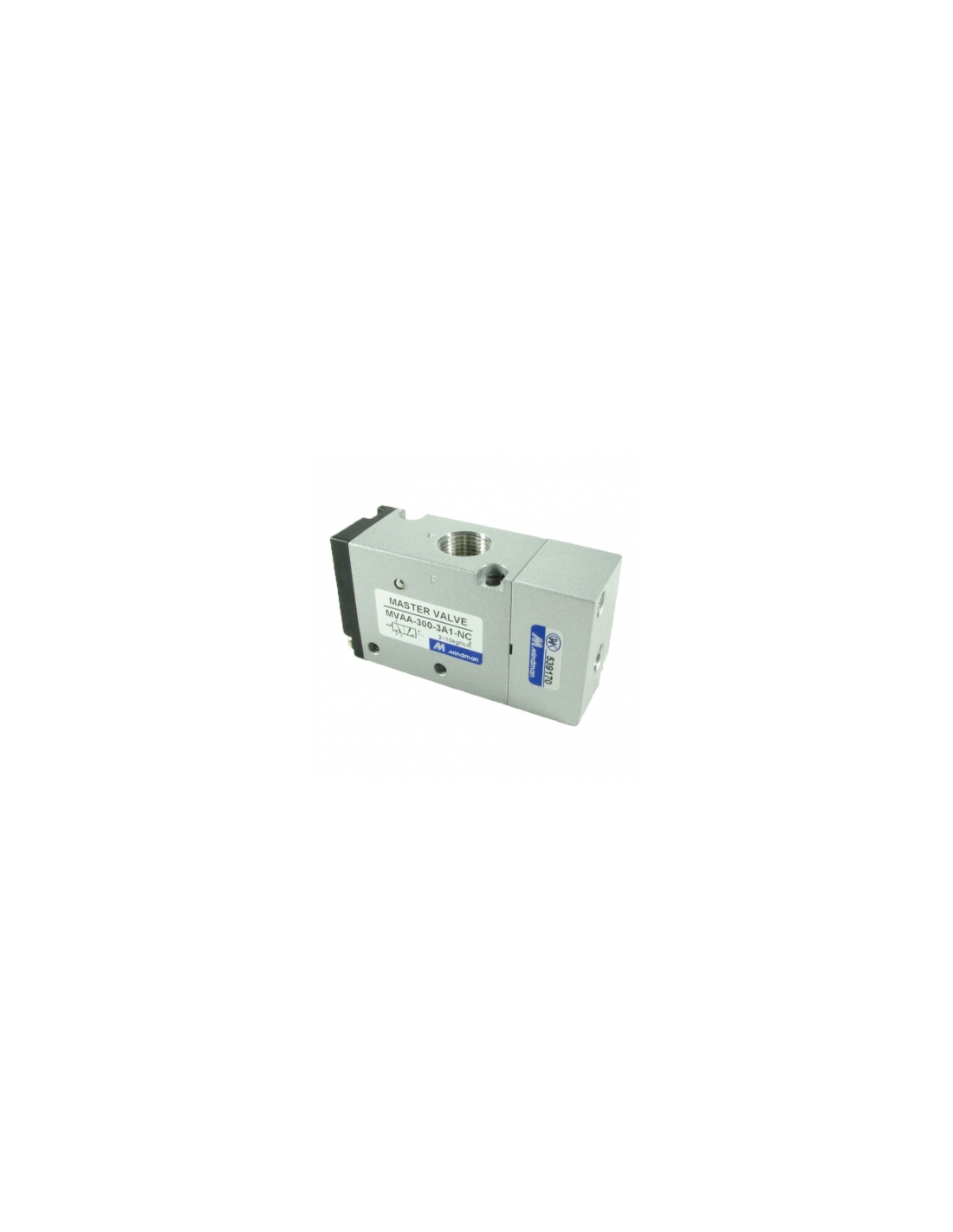

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve of 1/2 3 ways monostable, for general and industrial applications. The valve is normally open (NO), that is, with piloting pressure, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the pressure is removed by the piloting inlet, air circulation occurs between the inlet and the outlet.

Specifications:

  • Manufacturer: Mindman.
  • Manufacturer reference: MVAA-460-3A1-NO.
  • Valve type: 1/2-3/2 Monostable.
  • Thread type: G 1/2".
  • number of tracks: 3.
  • Positions: 2.
  • Fluid type: Pressurized air, with or without lubrication.
  • Working pressure: 0÷8 Kgr/cm².
  • Piloting pressure: 2÷7 Kgr/cm².
  • Maximum pressure: 10 Kgr/cm².
  • Effective pitch diameter: 50 mm2.
  • Working temperature: -5 to 60ºC.
  • Material: Aluminum and steel.

Dimensiones válvulas neumáticas 1/2-3/2 mindman


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
