Magnetic sensor reed 2 wires M8 connector and clamp 16 - Metal Work

Magnetic detector with cable included and clamp for pneumatic cylinders diameter 16 (ISO 6432).

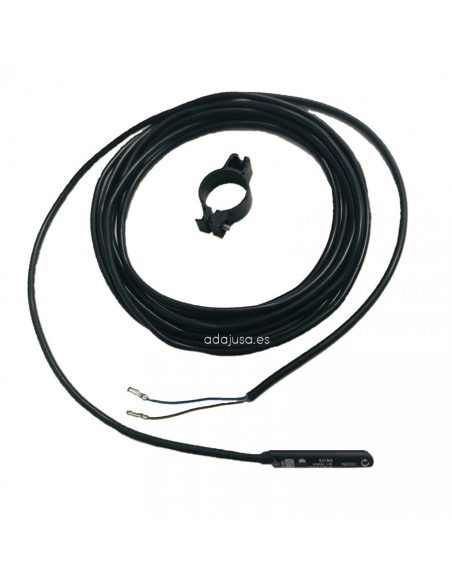

Shipping includes:

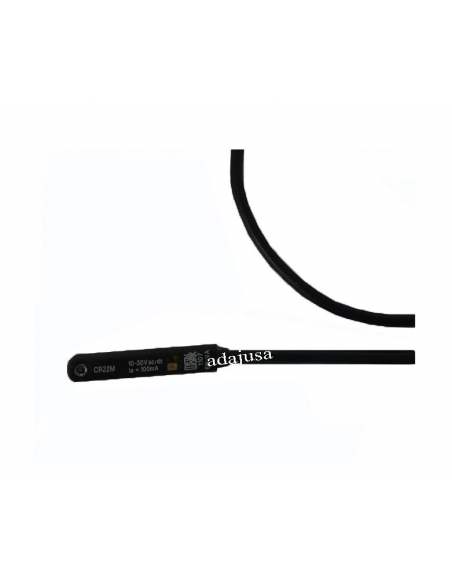

• 2-wire magnetic reed sensor with M8 connector

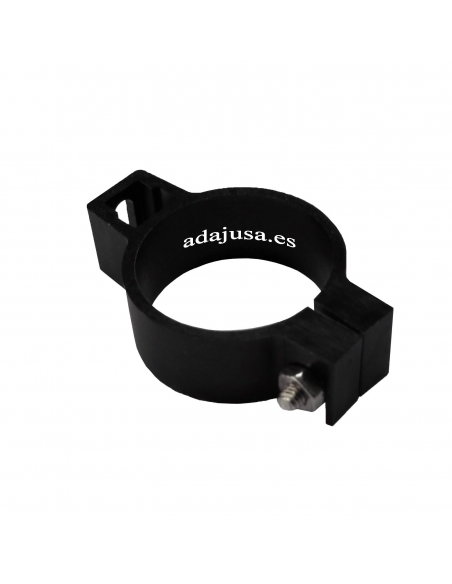

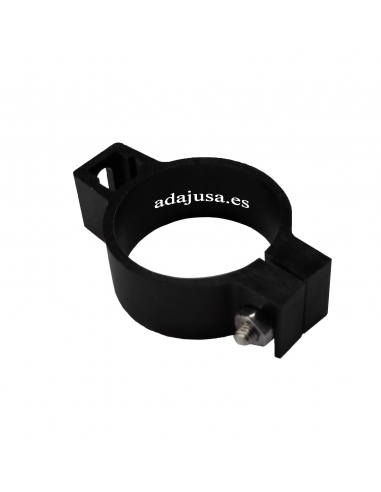

• Cylinder tensioner clamp 16.

Magnetic sensor with M8 connector for mounting on pneumatic cylinders. Type reed 2 threads. The detector has for connection a 30mm long output cable finished on an M8 Female connector.

This sensor has the feature of being able to be mounted on the cylinder slot from above, i.e. the cylinder racks do not need a through opening.

Fixed by a screw qaue press against the bottom of the T-slot, the fixing screw is for a 1.5mm allen wrench. The sensor, allows to be installed on any cylinder or component with traditional T-slots.

Magnetic Detector Features:

• Manufacturer: Metal Work.
• Contact ipo: Reed NO (Normally open).
• Supply voltage (Ub): 10 ÷ 30 Vac/dc.
• Power (W): 3.
• Peak power (W): 6.
• Output current (mA): ≤ 100.
• Switching frequency (Hz): ≤ 400.
• Short circuit protection: NO.
• Overload protection: NO.
• Regulations: EC, EN60947-5-2
• Color LED status indicator: Yellow.
• Magnetic sensitivity: 2.8mT±25%.
• Frequency: ≤ 0.1mT.
• Degree of protection (according to EN60529): IP67.
• Working temperature (oC): -25÷70.
• Sensor capsule material: PA66 + PA61/6T.
• Connector type: M8x1
• Connection cable type with M8x1: Polyurethane; 2 x 0.14 mm2
• Number of drivers: 2.
• measurement
  Length 34 mm.
  Width 7 mm.
  Height 4 mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
