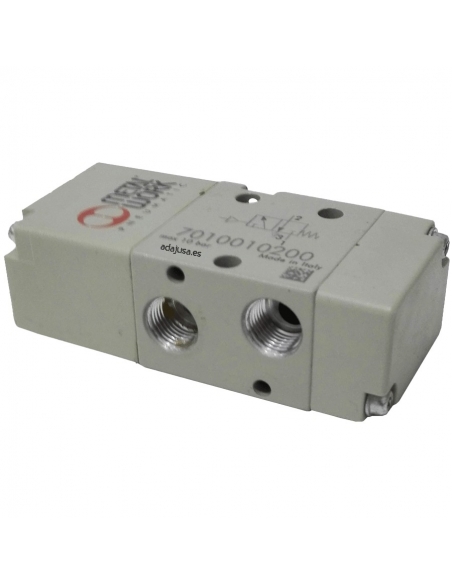

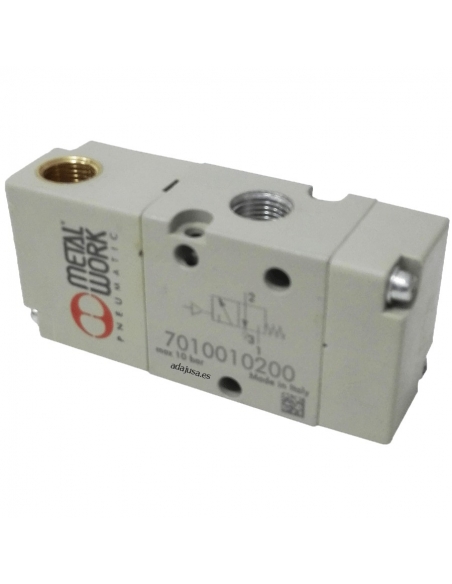

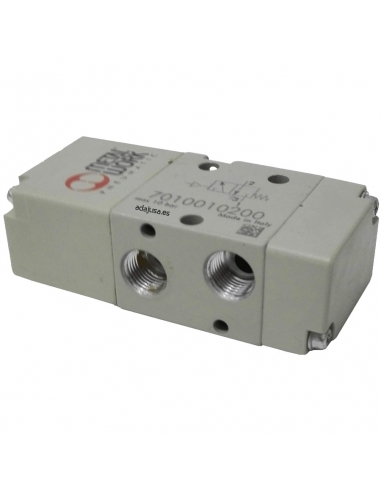

Pneumatic valve 1/8 3-way monostable closed NC - Metal Work

Pneumatic valve of 1/8 3 ways monostable, for general and industrial applications. The valve is normally closed (NC), that is, without piltotaje pressure, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust. When pressure is received from the piloting inlet, air circulation occurs between the inlet and outlet.

• Pneumatic valve 1/8 3 ways monostable standardally closed (NC).
• Manufacturer: Metal Work.
• Reference: PNV23PNSNC Code: 7010010200.
• Operating pressure bar: Empty ÷ 10
• Minimum monostable drive pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min · bar: 121.43
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• Monostable TRA/TRR at 6 bar ms: 6/15
• Bistable TRA/TRR at 6 bar ms: 7/7

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
