Metallic pressure regulator 3/8 04 bar New Deal - Metal Work

Name: Metallic pressure regulator 3/8 04 bar New Deal - Metal Work
Brand: Metal Work
SKU: 1302001
Price: 48.2064 EUR
Availability: PreOrder

€48.21 Tax included

€39.84 tax excl.

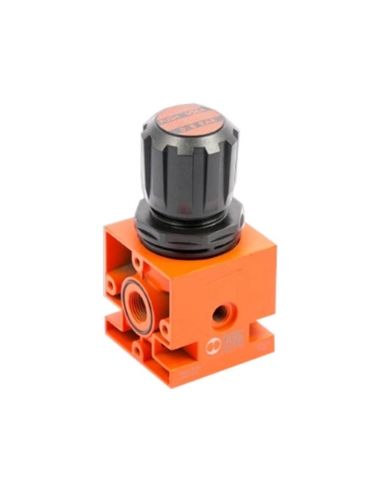

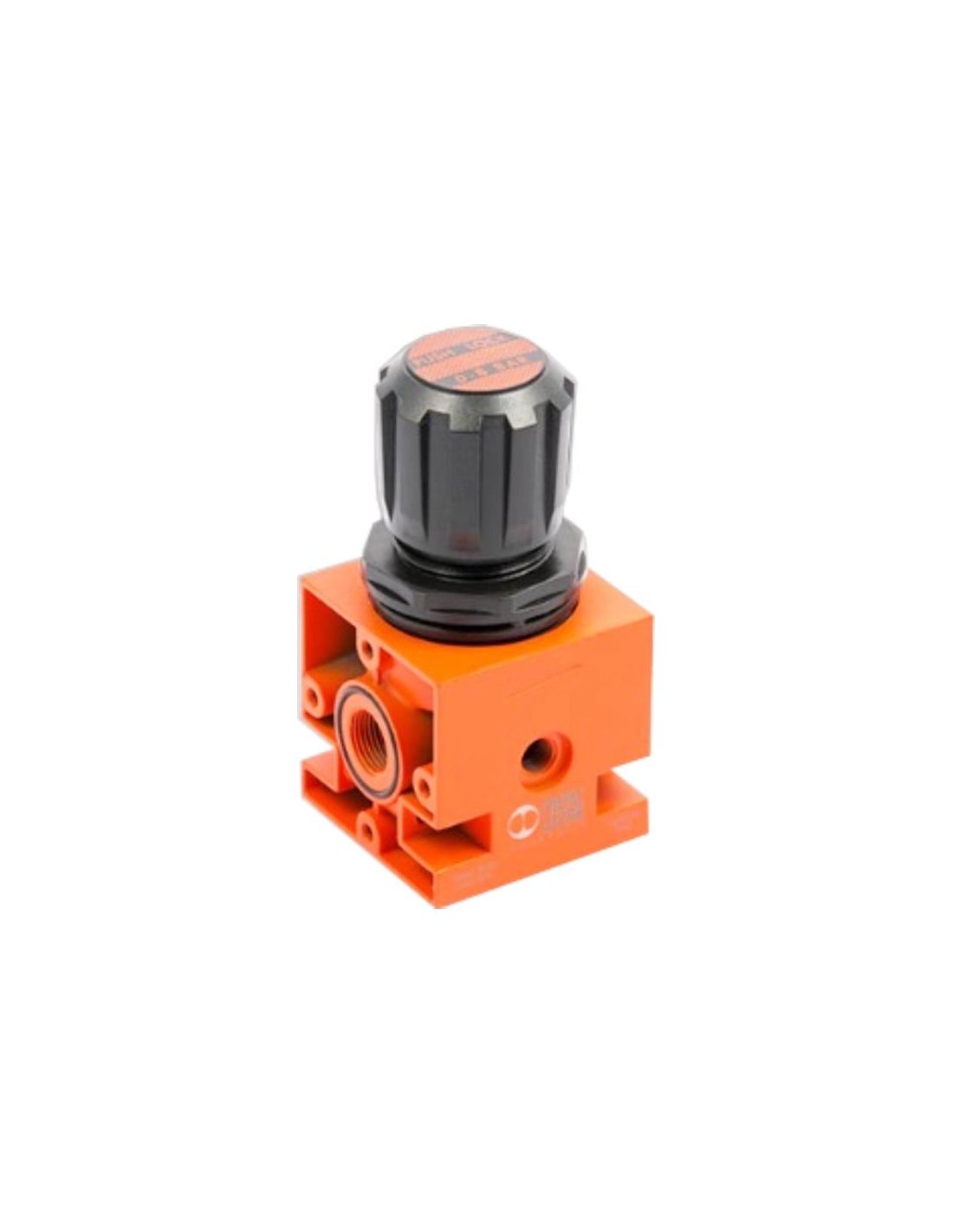

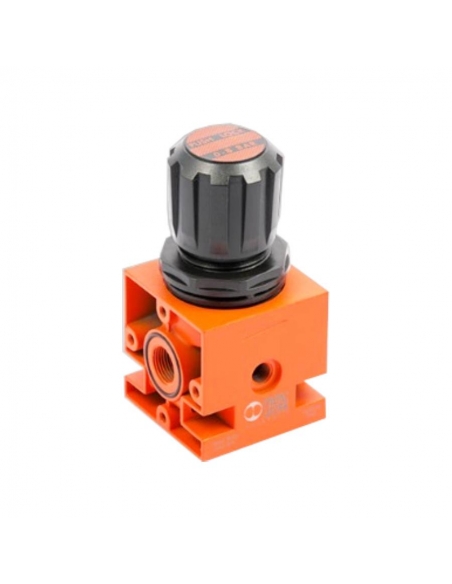

Pressure regulator of 3/8 regulation 0-4 Kg/cm2, with metal body, extremely reliable and robust. Allows stability of the output pressure at the preset pressure. Possibility of fixing through side holes. New Deal Group

Reference: 1302001

pneumatic pressure regulator symbol

metal work logo Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/8 pressure regulator , metal body, extremely reliable and robust. It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing through side holes.

Pressure gauge not included (can be ordered separately)

Technical characteristics.

Manufacturer: Metal Work
Reference: 1302001
Threaded connection size: 3/8".
Regulation range: 0-4 bar .
Maximum inlet pressure: 18 bar .
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1100
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 2500
Working temperature: -10 to +50ºC.
Mounting position: any position.
Fluid: Air filtering, with or without lubrication (continuous lubrication)
Wall fixing screws: M4x55.
Pressure gauge connection: 1/8".

For other models or sizes consult.

regulator dimensions new deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
