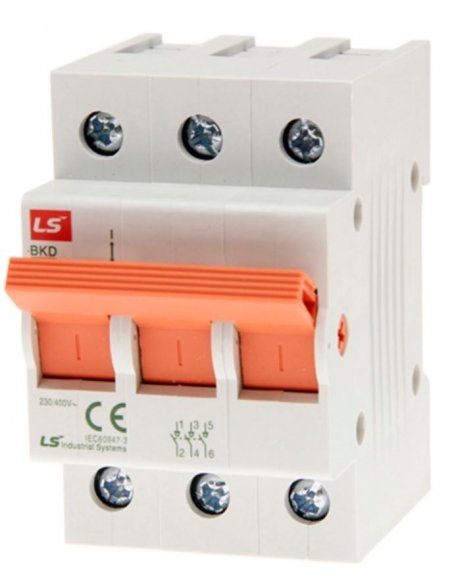

3-pole, 80A load break switch for disconnecting voltage from an electrical installation or machine. 52.5mm wide modular design for DIN rail mounting.
Characteristic:
- Manufacturer: LS (LG)
- Reference: BKD 3P 80A
- Number of poles: 3
- Rated voltage: 240/415Vac 50/60Hz
- Rated current: 80A
- Rated insulation voltage (Ui): 600V
- Rated impulse voltage (Uimp): 6kV
- Electrical life: 1500 operations
- Mechanical life: 10,000 operations
- Mounting: 35mm DIN rail
- Width: 17.5mm per pole (52.5mm)
- Standard: IEC60947-3
Attention: This component should not be confused with a magnetothermic , they are two different elements.
Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
