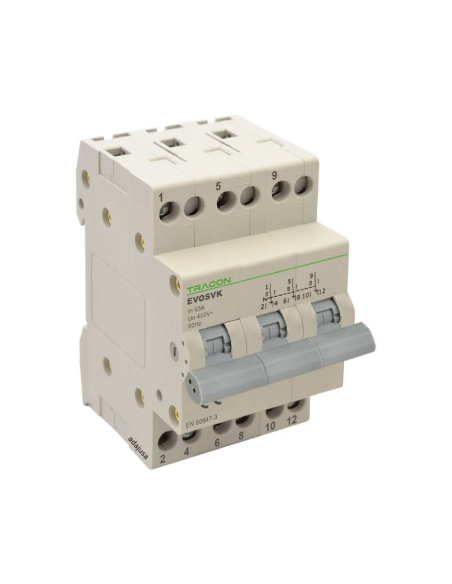

Change over switch 3 poles 32A - Tracon

Name: Change over switch 3 poles 32A - Tracon
Brand: TRACON
SKU: SVK3-32
Price: 22.3729 EUR
Availability: PreOrder

€22.37 Tax included

€18.49 tax excl.

32A 3-pole Change over switch , lever-operated with 3 fixed positions (I-0-II), 3 contacts.

Reference: SVK3-32

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Change over switch , electrical circuit selector, 3 poles 32A. The operation is carried out by means of a front lever, with 3 maintained positions (I-0-II). Three output contacts.

Technical characteristics:

Manufacturer/Supplier: Tracon
Reference: SVK3-32
Number of poles: 3
Control type: 3-position lever
Contact type: 3 C/O
Rated voltage: 230Vac 50/60Hz
Rated current: 32A
Rated insulation voltage (Ui): 690Vac
Rated impulse withstand voltage (Uimp): 6kV
Electrical life: > 10000 cycles
Mechanical life: > 30000 cycles
Operating temperature: -25ºC...+55ºC
Protection grade: IP20
Conductor section: 3 - 16mm²
Allows the use of pin-type connection combs
Sealable in position 0-I-II
Regulations: EN 60947-3, EN 60669-1

Dimensions:

Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Anexo instruções utilização elec

Download (414.22KB)

Annexe mode d'emploi elec.

Download (410.39KB)

Annex instructions for use elec.

Download (410.3KB)

Allegato istruzioni l'uso elec

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Download (412.12KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields
