2-position metal key selector with return 1 open contact (NO) complete

€5.71 Tax included

4.72 tax excl.

NYBG61KK

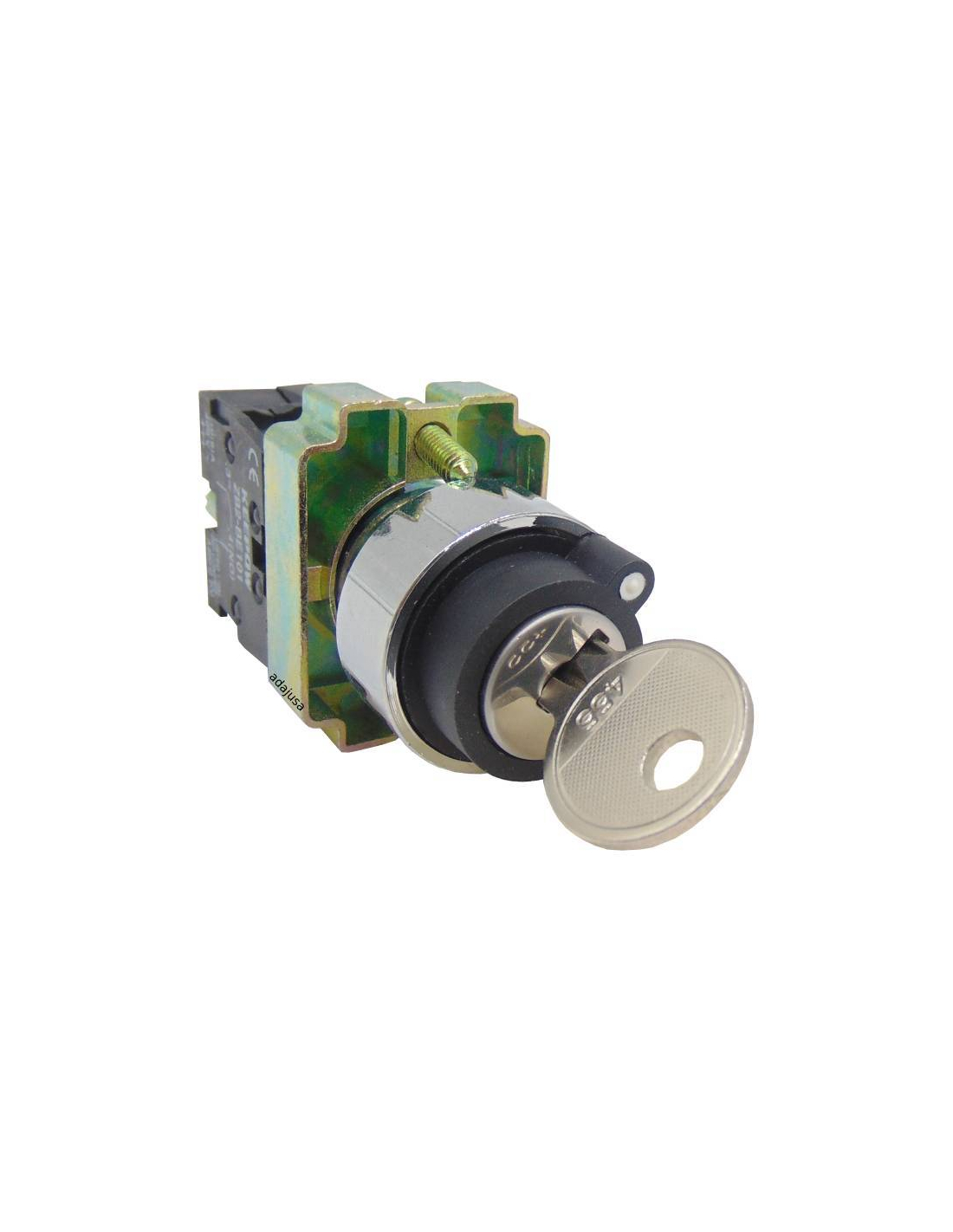

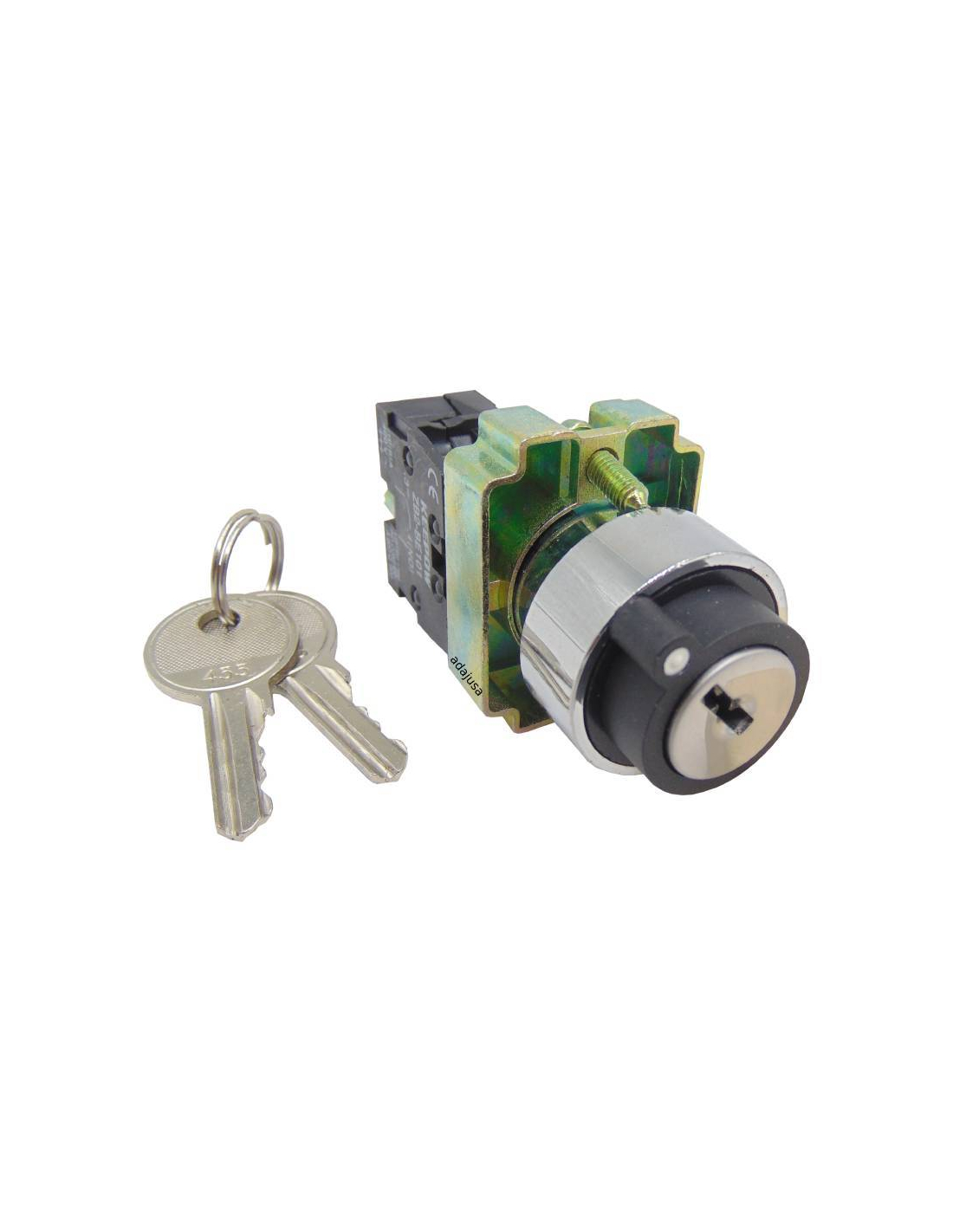

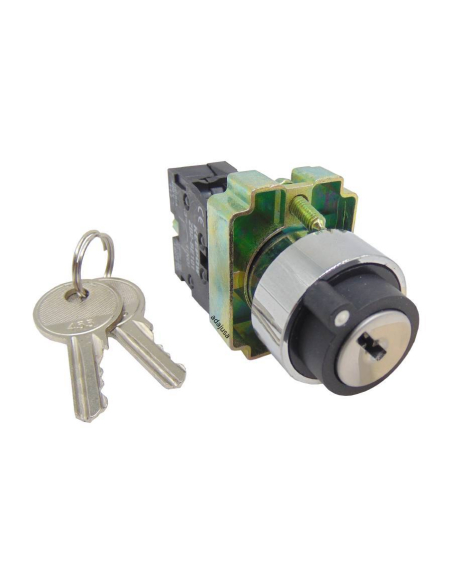

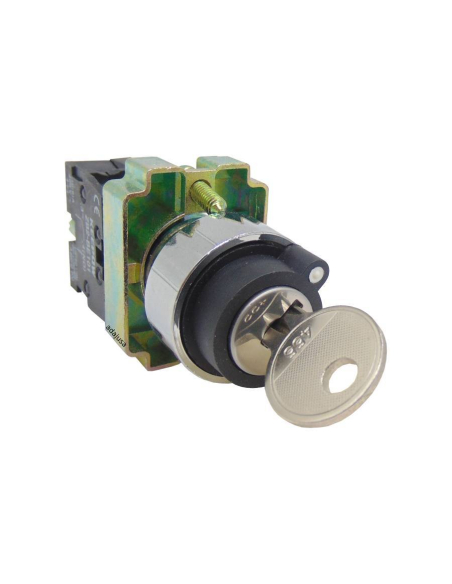

Key-operated metal selector, 2 positions with return, 1 open contact (NO).

The supply includes the complete selector with an open contact and key.

The key can be inserted or removed only in the Left "Off" position.

Reference: NYBG61KK



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Key-operated metal selector, 2 positions with return, open contact (NO), possibility of adding additional contacts. Drill diameter 22mm.

The key can only be inserted and removed in the "Off" position, without activating, left position.

The supply includes the complete selector with an open contact and key.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBG61KK
  • Color: black
  • Number of positions: 2 with return
  • Contact : 1 open contact (NO)
  • Material: metal
  • Ith intensity: 10(6A)
  • Intensity Ie (AC1, 230V): 6A
  • Intensity Ie (AC15, 230V): 3A
  • Intensity Ie )DC15, 250V): 0.27A
  • Ui voltage: 660V
  • Contact resistance: 50 mOhm
  • Protection grade: IP42
  • Regulations: EN 60947-1; EN60947-5-1
Key selector dimensions

Material for professional use, install respecting the regulations in force at the installation site

Questions

Question
este selector pode ser montado no exterior e se é seguro como se faz a aplicação na parede?

Obrigados
José Silva
Answer
Buenos días.

https://adajusa.pt/pt/selectores-electricos-o22mm-metalicos/4579-selector-2-posiciones-metalico-llave-con-retorno-1-contacto-abierto-na-completo-8435532845799.html

Nas características do produto, pode ver-se o que indica:

Grau de proteção: IP42



O grau de proteção IP42 refere-se à capacidade de um equipamento ou dispositivo resistir à entrada de partículas sólidas e ao contacto com líquidos. O código IP (Ingress Protection) é uma classificação reconhecida internacionalmente que descreve o nível de proteção fornecido pelo invólucro ou caixa de um dispositivo em função de dois números:

Primeiro dígito (4, neste caso): Indica a proteção contra sólidos, como poeiras e partículas.

Segundo dígito (2 neste caso): Indica a proteção contra líquidos, como a água.

No caso do IP42:

Primeiro dígito (4): Significa que o dispositivo tem uma proteção limitada contra a entrada de partículas sólidas. Deve oferecer uma proteção suficiente para impedir a entrada de objectos sólidos com um diâmetro superior a 1 mm. No entanto, não é totalmente estanque ao pó.

O segundo algarismo (2): significa que o dispositivo oferece uma proteção limitada contra a entrada de água. Isto indica geralmente que o dispositivo pode suportar salpicos de água ou quedas verticais, mas não é resistente a grandes quantidades de água ou à submersão.

Em resumo, um dispositivo com uma classificação IP42 está protegido contra a entrada de partículas sólidas relativamente grandes e pode suportar salpicos de água ou humidade, mas não deve ser exposto a imersão ou chuva forte. A interpretação exacta pode variar consoante o contexto e a conceção do dispositivo específico.


Quando um dispositivo se encontra no exterior, tem de ter uma classificação de proteção IP65, o que não é o caso, pelo que não seria adequado.

No entanto, verifique se o dispositivo cumpre as suas especificações.

Com os melhores cumprimentos

Adajusa
José Silva on 10/25/2023 21:30:33

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Metal selector 2 key positions 1 open contact (NA) complete Metal selector 2 key positions 1 open contact (NA) complete 2
Metal electric selectors

3-position metal selector key with return 2 open contacts (NO) complete

TRACON
NYBG73KK
€6.61 (€5.46 tax excl.)
Key-operated metal selector, 3 positions with return to the center position, 2 open contacts (NO). The supply includes the complete selector with an open contact and key. The key can be inserted or removed only in the "Off" (center) position.Reference: NYBG73KK Representative image for illustrative purposes, the item supplied will correspond to the...
HB2-BJ53 electric switch selector 3 positions long handle return 22 open NA metallic | ADAJUSA | price
Metal electric selectors

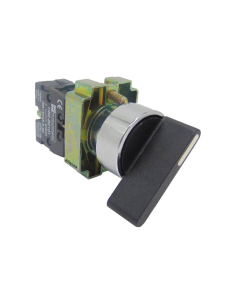

3-position metal selector with return 2 open contacts (NO) complete with long handle
