Metal selector 2 key positions 1 open contact (NA) complete
Metal selector 2 key positions 1 open contact (NA) complete
Metal selector 2 key positions 1 open contact (NA) complete
Metal selector 2 key positions 1 open contact (NA) complete

3-position metal selector key with return 2 open contacts (NO) complete

€4.94 Tax included

€4.08 tax excl.

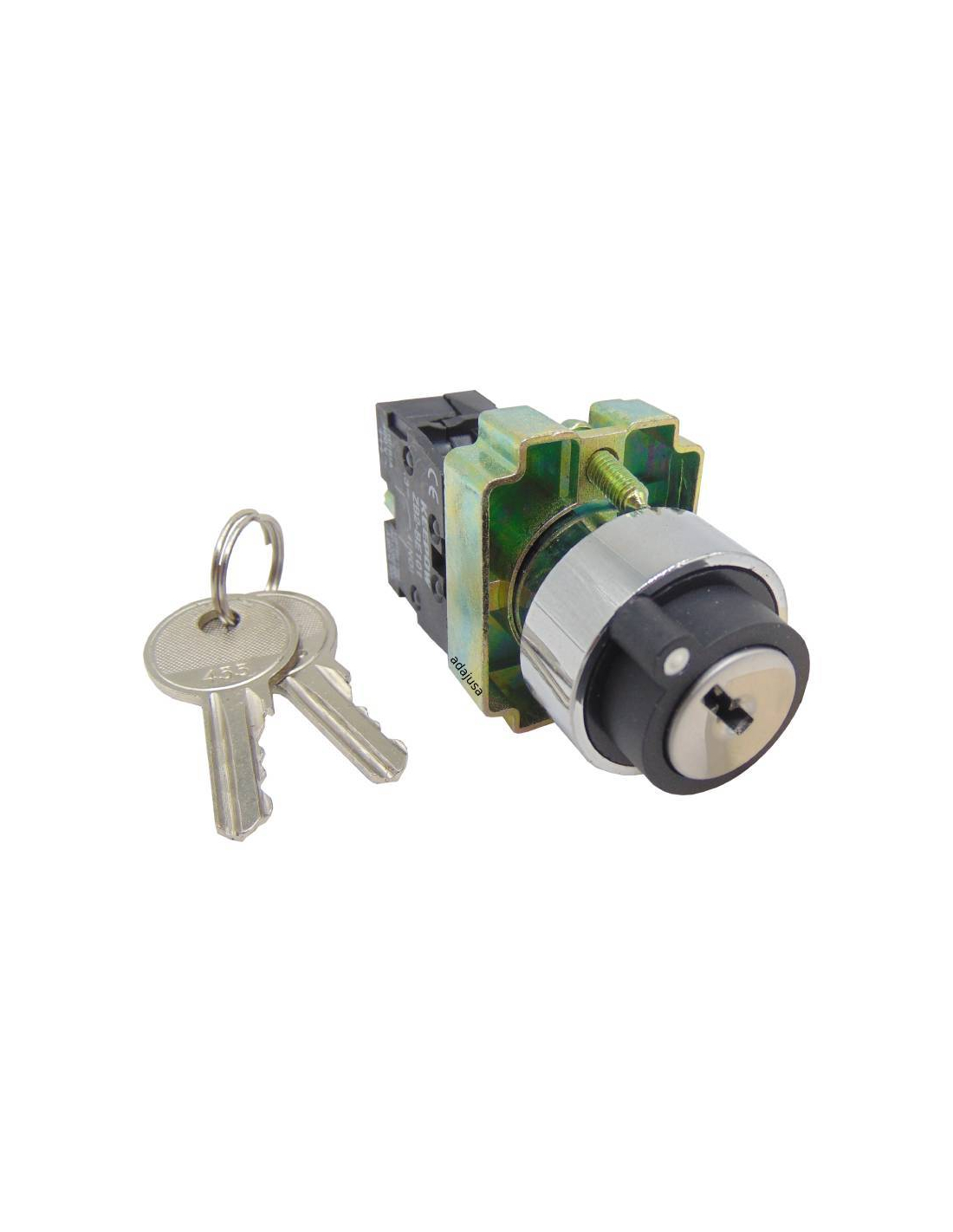

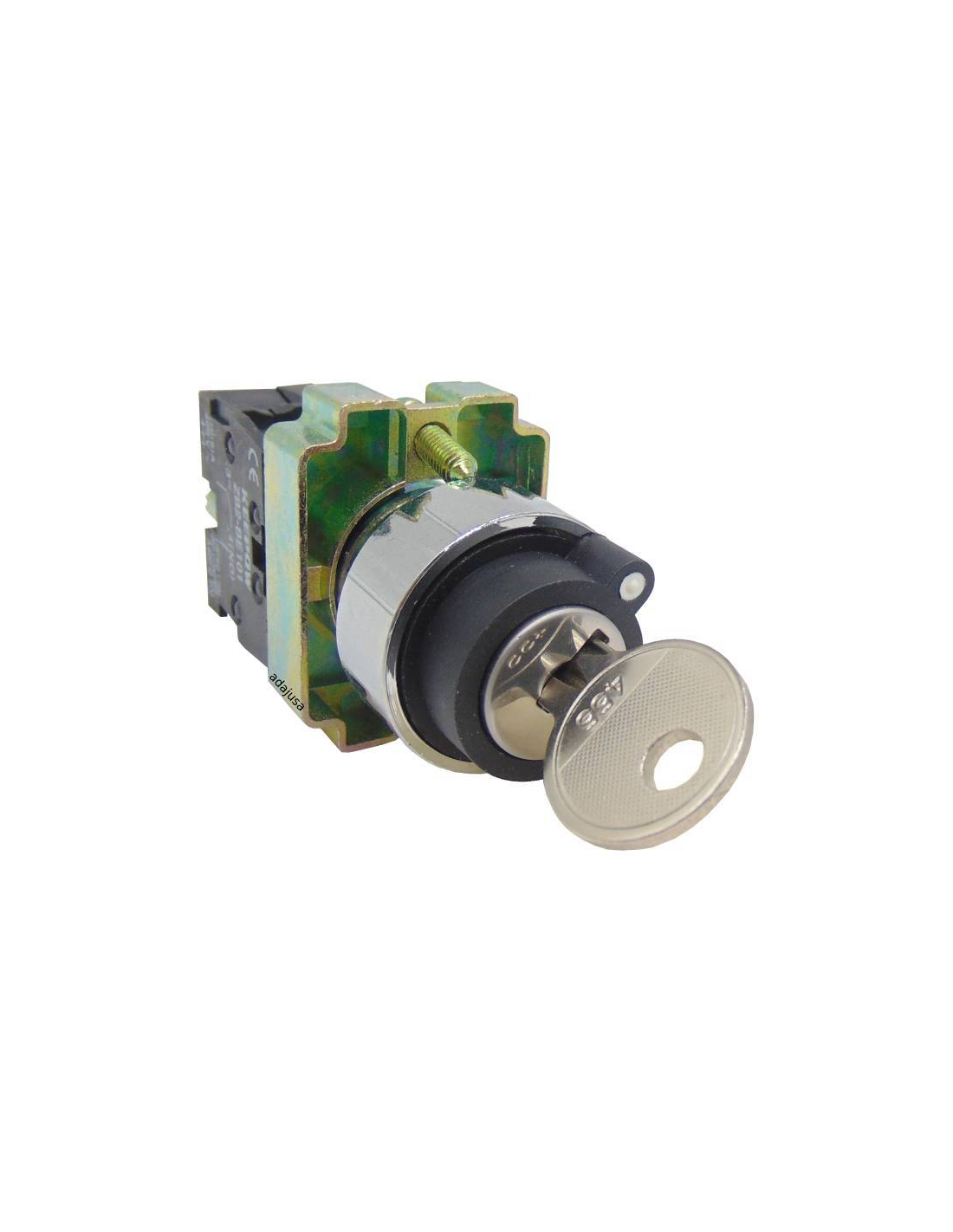

Key-operated metal selector, 3 positions with return to the center position, 2 open contacts (NO).

The supply includes the complete selector with an open contact and key.

The key can be inserted or removed only in the "Off" (center) position.

Reference: NYBG73KK

Electrical diagram of selector 2 NO with return

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Key-operated metal selector, 3 positions with return to the center position, 2 open contacts (NO), possibility of adding additional contacts. Drill diameter 22mm.

The key can only be inserted and removed in the "Off" position, without activating (center position)

The supply includes the complete selector with 2 open contacts and key.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBG73KK
  • Color: black
  • Number of positions: 3 with return
  • Contact : 2 open contacts (NO)
  • Material: metal
  • Ith intensity: 10(6A)
  • Intensity Ie (AC1, 230V): 6A
  • Intensity Ie (AC15, 230V): 3A
  • Intensity Ie )DC15, 250V): 0.27A
  • Ui voltage: 660V
  • Contact resistance: 50 mOhm
  • Protection grade: IP42
  • Regulations: EN 60947-1; EN60947-5-1
Key selector dimensions

Material for professional use, install respecting the regulations in force at the installation site
