2-position metal key selector OFF-ON 1 open...
2-position metal key selector OFF-ON 1 open...
2-position metal key selector OFF-ON 1 open contact (NA) complete
2-position metal key selector OFF-ON 1 open contact (NA) complete

2-position metal key selector OFF-ON 1 open contact (NA) complete

€4.92 Tax included

€4.07 tax excl.

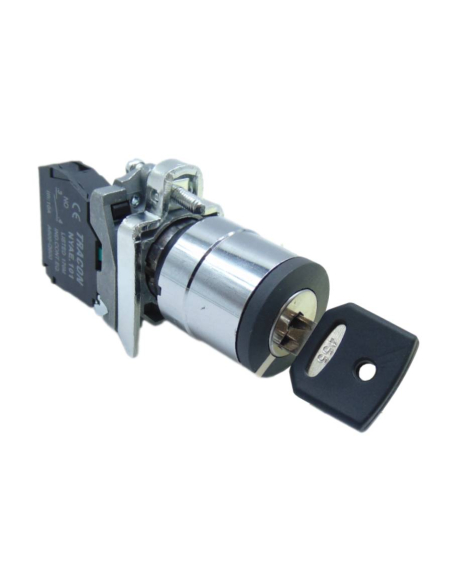

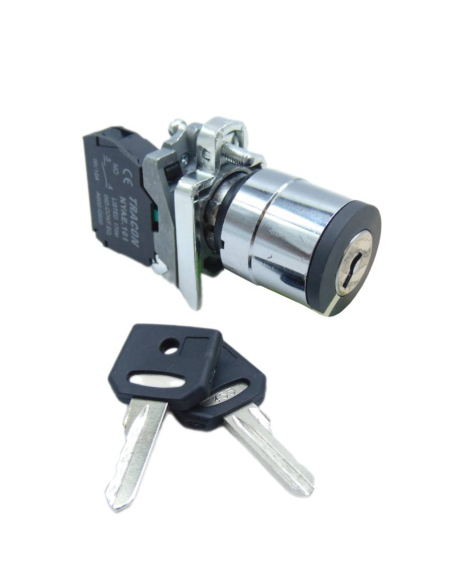

Key-operated metal selector switch, 2 maintained positions, 1 open contact (NO).

The supply includes the complete selector with an open contact and key.

The key can be inserted or removed in both positions.

Reference: NYBG41KK

Electrical diagram selector 1 contact2-position key selector pictogram

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Key-operated metal selector switch, 2 maintained positions, open contact (NO), possibility of adding additional contacts. Drill diameter 22 mm.

The key can be inserted or removed in both positions.

The supply includes the complete selector with an open contact and key.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBG41KK
  • Number of positions: 2 held
  • Contact : 1 open contact (1NA)
  • Material: Metallic
  • Maximum nominal voltage (Ue): 230Vac
  • Nominal insulation voltage (Ui): 660V
  • Nominal current (Ie) (AC 1, 230V): 6A
  • Rated current (Ie) (AC 15, 230V): 3A
  • Rated current (Ie) (DC 13, 250V):0.27A
  • Operating temperature: -25 to +70ºC
  • Protection class: IP42



Professional use material, install in compliance with the regulations in force at the installation site.
