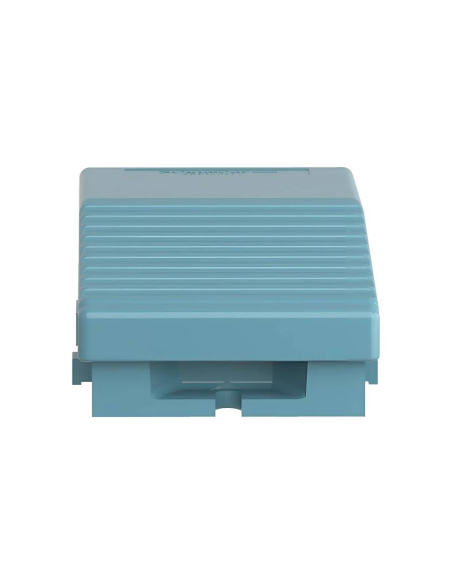

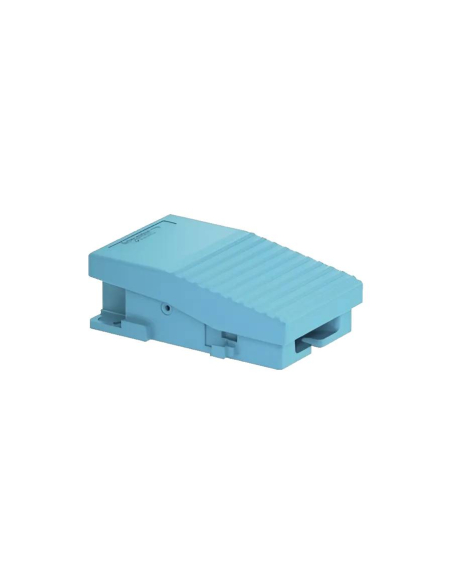

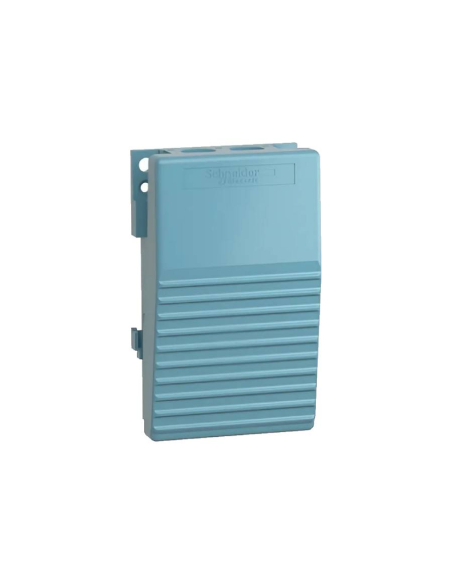

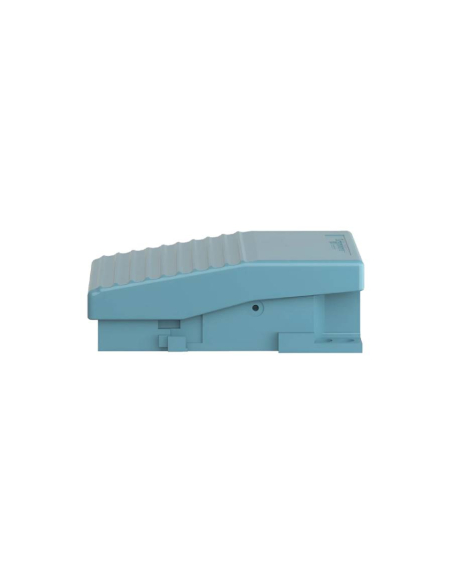

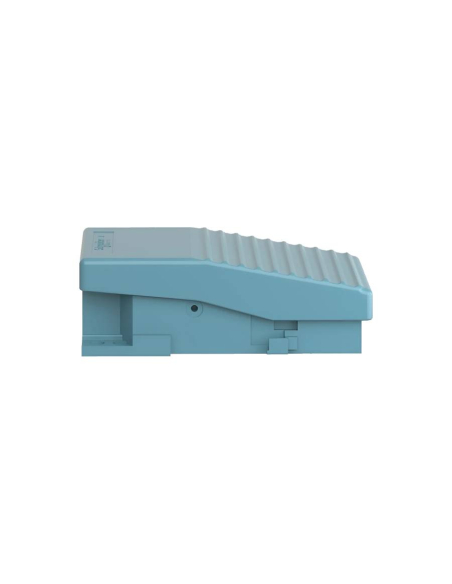

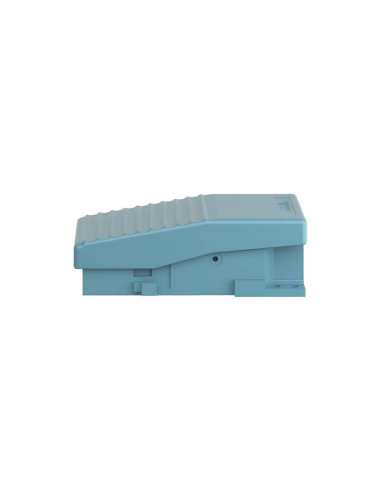

Instantaneous action single step pedal switch (push button) with 2 electrical contacts, one open (NO) and one closed (NC), with positive opening operation in accordance with EN/IEC 60947-5-1. Pedal without protective cap with high-resistance metal cover in blue, offers long life in demanding conditions thanks to its resistance to hydraulic oil and various greases.

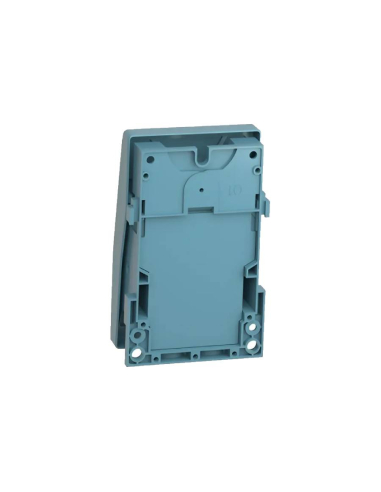

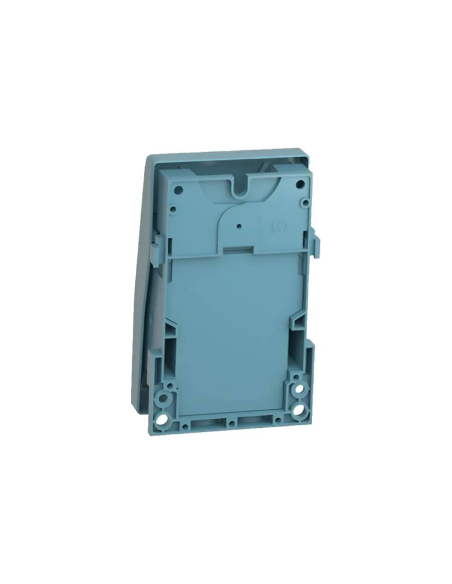

These types of elements are used as control switches in industrial applications and general purpose applications to control the start and stop of machinery. Pedal in compliance with current safety standards, suitable for low-risk applications and work. Its base has fixing holes to prevent slipping during use.
These pedal-operated foot switches incorporate a snap-acting NC + NO contact block with positive opening operation and are fully compliant with IEC 60947-5-1. The pedal is instant action, that is, the contacts are activated when the pedal is pressed with the foot and deactivated when the foot is removed.
Feature Summary:
- Manufacturer: SCHNEIDER
- Reference: XPEM110
- HARMONY XPE SERIES
- Material: Metal
- Color blue
- Contact operation: 1 step
- Contact type: NO+NC
- Positive opening: Chord EN/IEC 60947-5-1
- Nominal operating current (Ie): 3A at 240V, AC-15 / 0.27A at 250V, DC-13
- Rated insulation voltage (Ui): 500V
- Resistance to voltage spikes: 6kV
- Rated operating power:
- 10W DC-13, operating rate
- 4W DC-13, operating rate
- 7W DC-13, operating rate
- Operating temperature: -25…70°C
- Mechanical durability: 15000000 cycles
- Protection degree: IP66 in accordance with IEC 60529

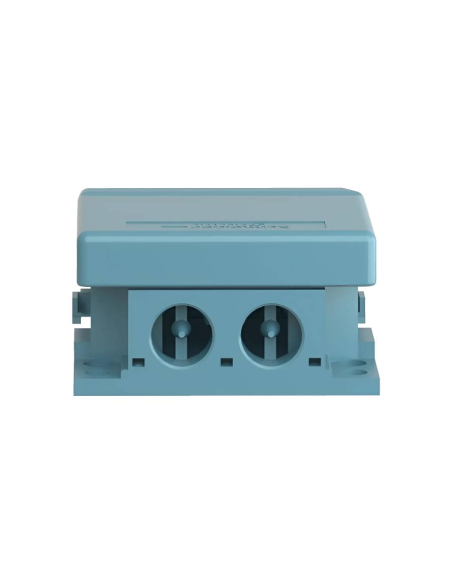

- Cable entry: 2 variable entries for 16 PG cable gland
- Dimensions: 104 x 172 x 59mm
- Weight: 1.2kg
- Regulations: EN/IEC 60947-5-1, VDE 0660-200
For more information, you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.
