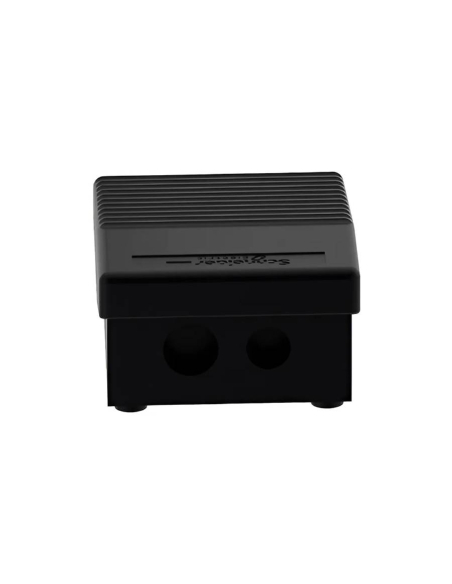

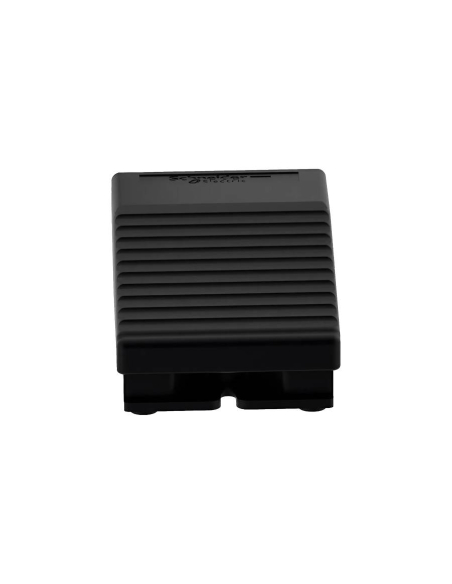

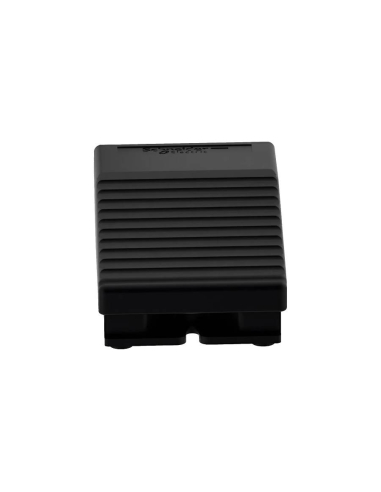

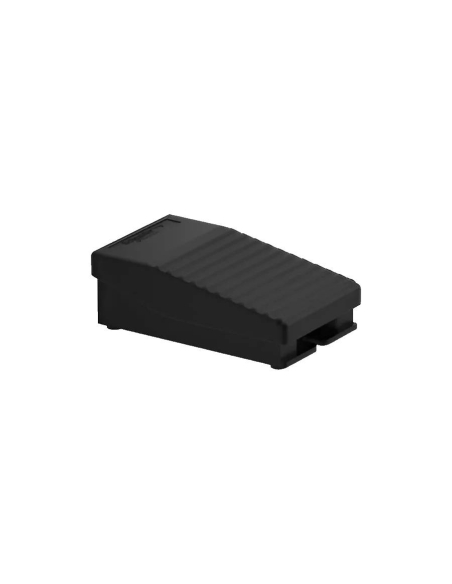

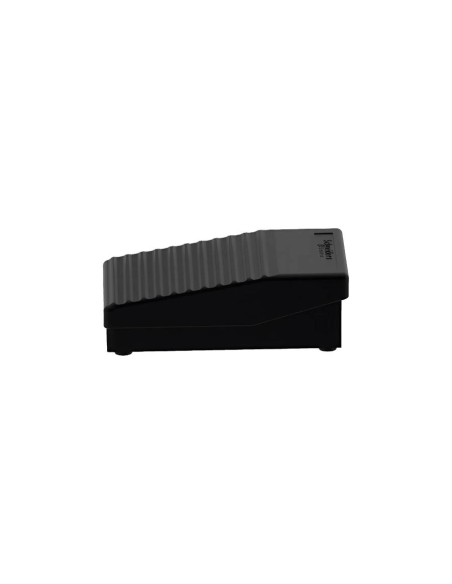

XPE-A foot switch without cap - SCHNEIDER

Instantaneous action single step pedal switch (push button) with 2 electrical contacts, one open (NO) and one closed (NC), with positive opening operation in accordance with IEC 60947-5-1 regulations. Pedal without protective cap with high resistance plastic cover in black, offers long life in demanding conditions thanks to its resistance to hydraulic oil and various greases.


These types of elements are used as control switches in industrial applications and general purpose applications to control the start and stop of machinery. Pedal in compliance with current safety standards, suitable for low-risk applications and work. Its base has rubber stops to prevent slipping during use.

These pedal-operated foot switches incorporate a snap-acting NC + NO contact block with positive opening operation and are fully compliant with IEC 60947-5-1. The pedal is instant action, that is, the contacts are activated when the pedal is pressed with the foot and deactivated when the foot is removed.

Feature Summary:

• Manufacturer: SCHNEIDER
• Reference: XPEA110
• HARMONY XPE SERIES
• Plastic material
• Color: Black
• Contact operation: 1 step
• Contact type: NO+NC
• Positive opening: According to IEC 60947-5-1
• Nominal operating current (Ie): 3A at 240V, AC-15 / 0.27A at 250V, DC-13
• Rated insulation voltage (Ui): 500V
• Resistance to voltage spikes: 6kV
• Rated operating power:
  • 10W DC-13, operating rate
  • 4W DC-13, operating rate
  • 7W DC-13, operating rate
• Operating temperature: -25…55°C
• Mechanical durability: 2000000 cycles
• Protection degree: IP43 in accordance with IEC 60529
• Cable entry: 1 plain hole for M20 cable gland / 1 plain hole for M16 cable gland
• Weight: 0.275kg
• Regulations: IEC 60947-5-1

Dimensions:

(1) One plain hole for ISO M20 or Pg 13.5 cable glands
(2) One plain hole for ISO M20 or Pg 11 cable glands
