Empty pendant push Button box 2 push buttons - SCHNEIDER
Empty pendant push Button box 2 push buttons - SCHNEIDER
Empty pendant push Button box 2 push buttons - SCHNEIDER
Empty pendant push Button box 2 push buttons - SCHNEIDER
Empty pendant push Button box 2 push buttons - SCHNEIDER

Empty pendant push Button box 2 push buttons - SCHNEIDER

€51.49 Tax included

€42.55 tax excl.

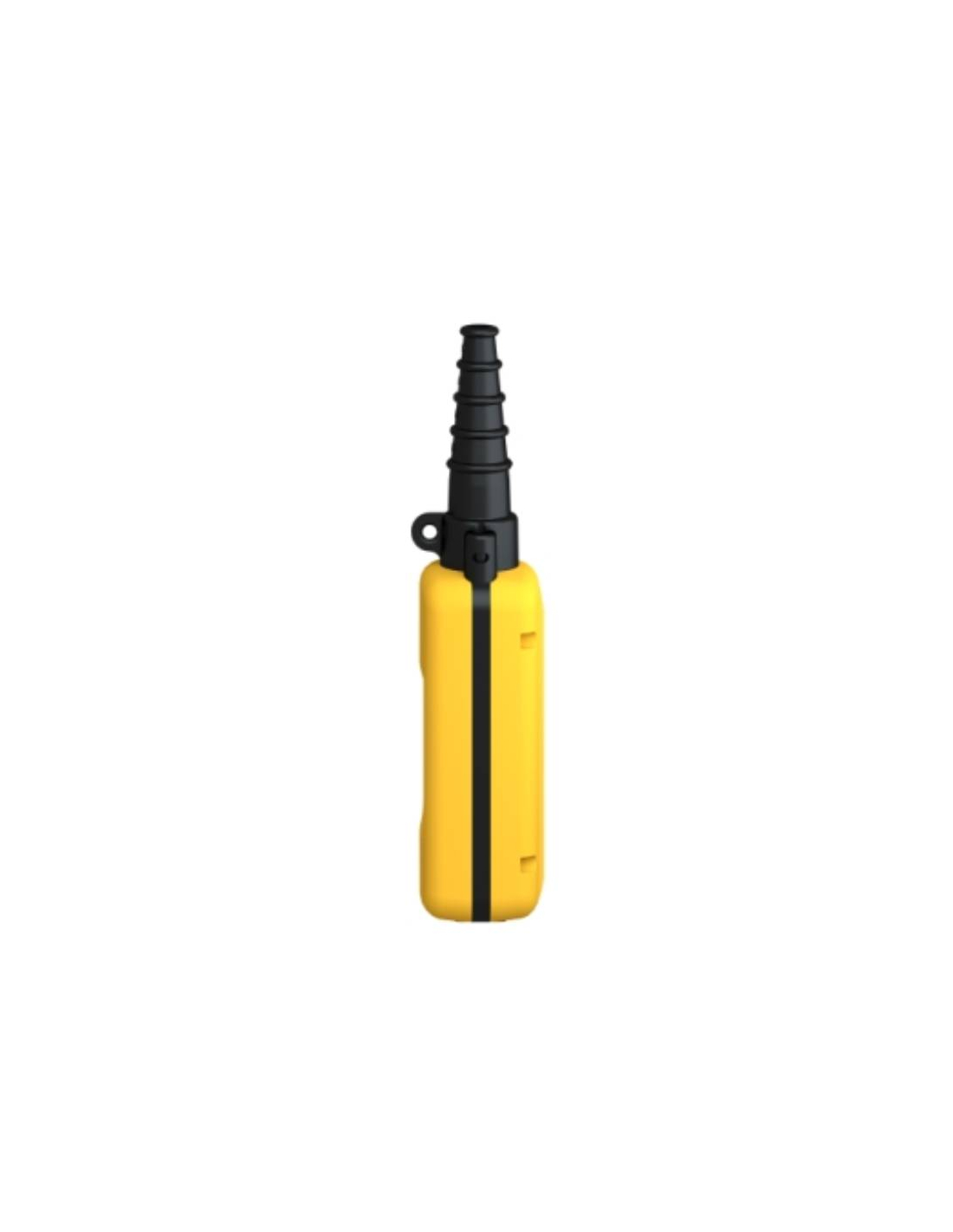

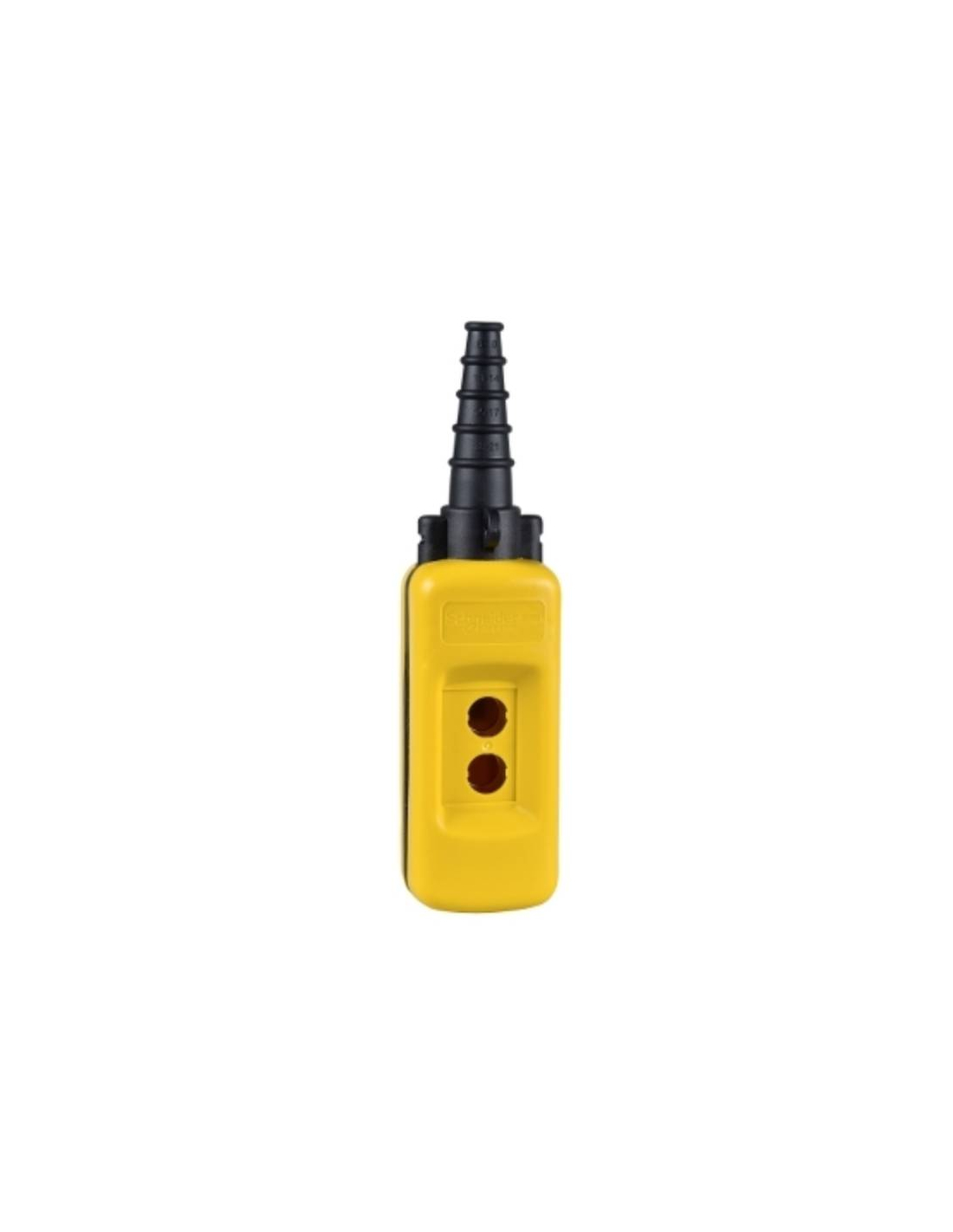

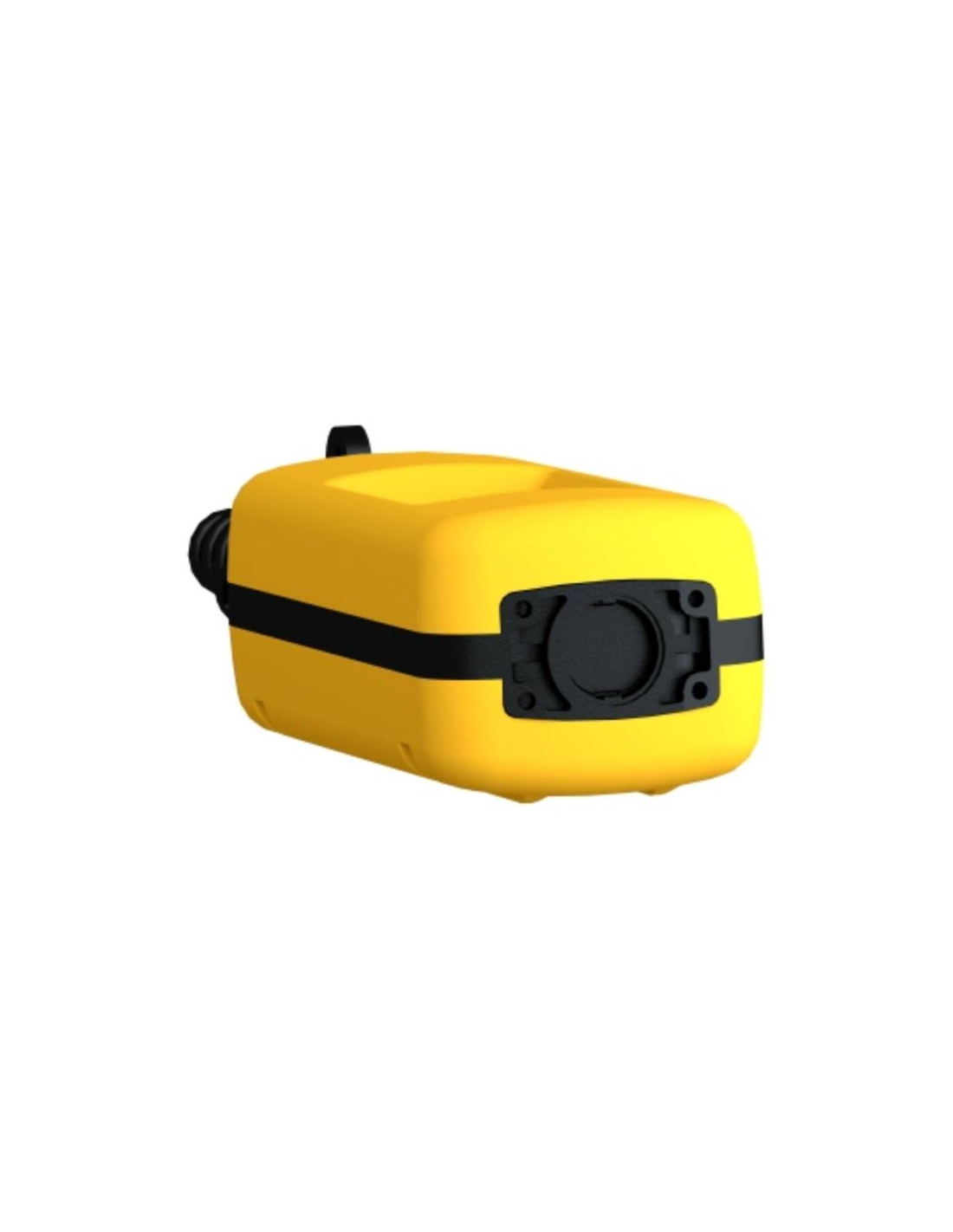

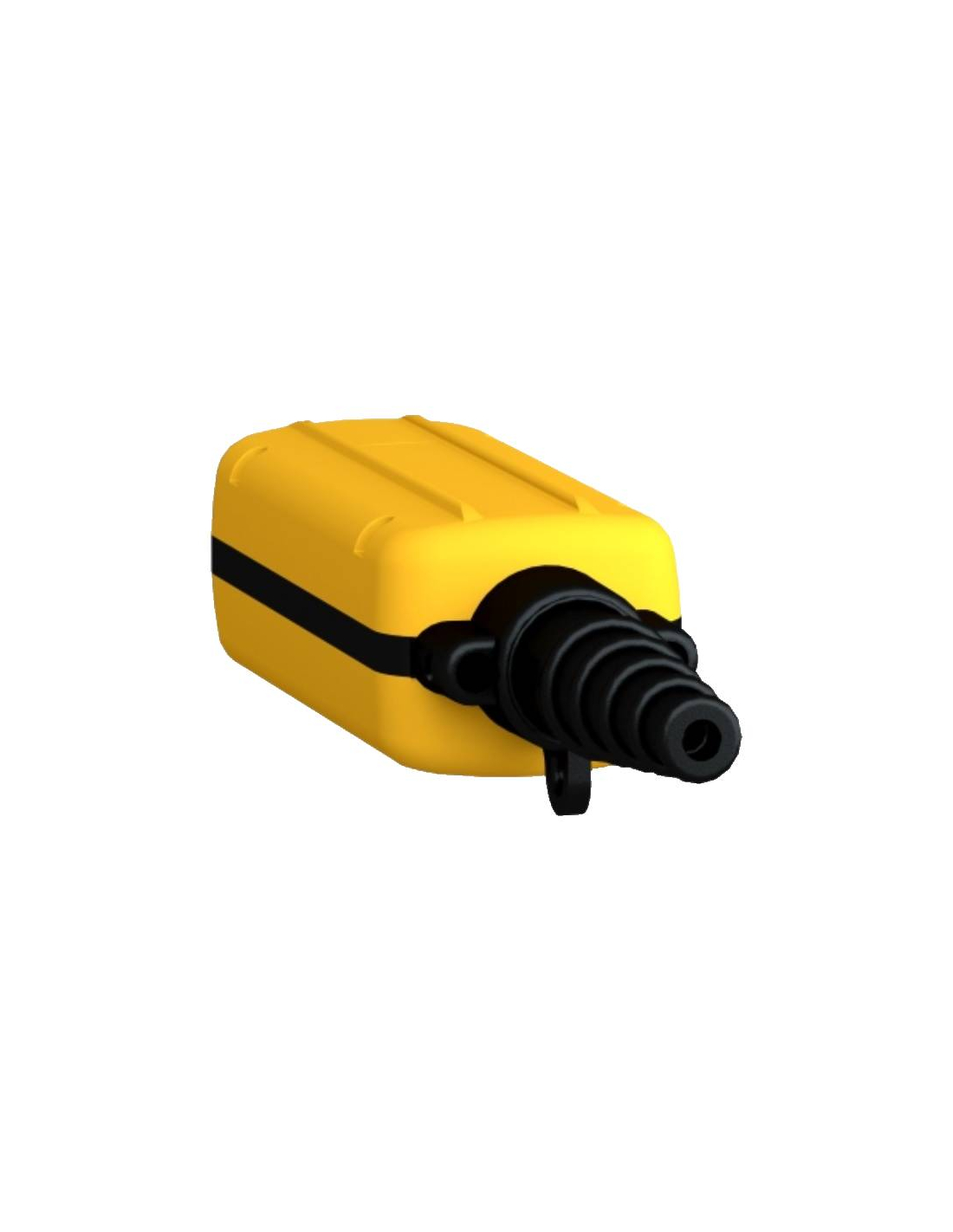

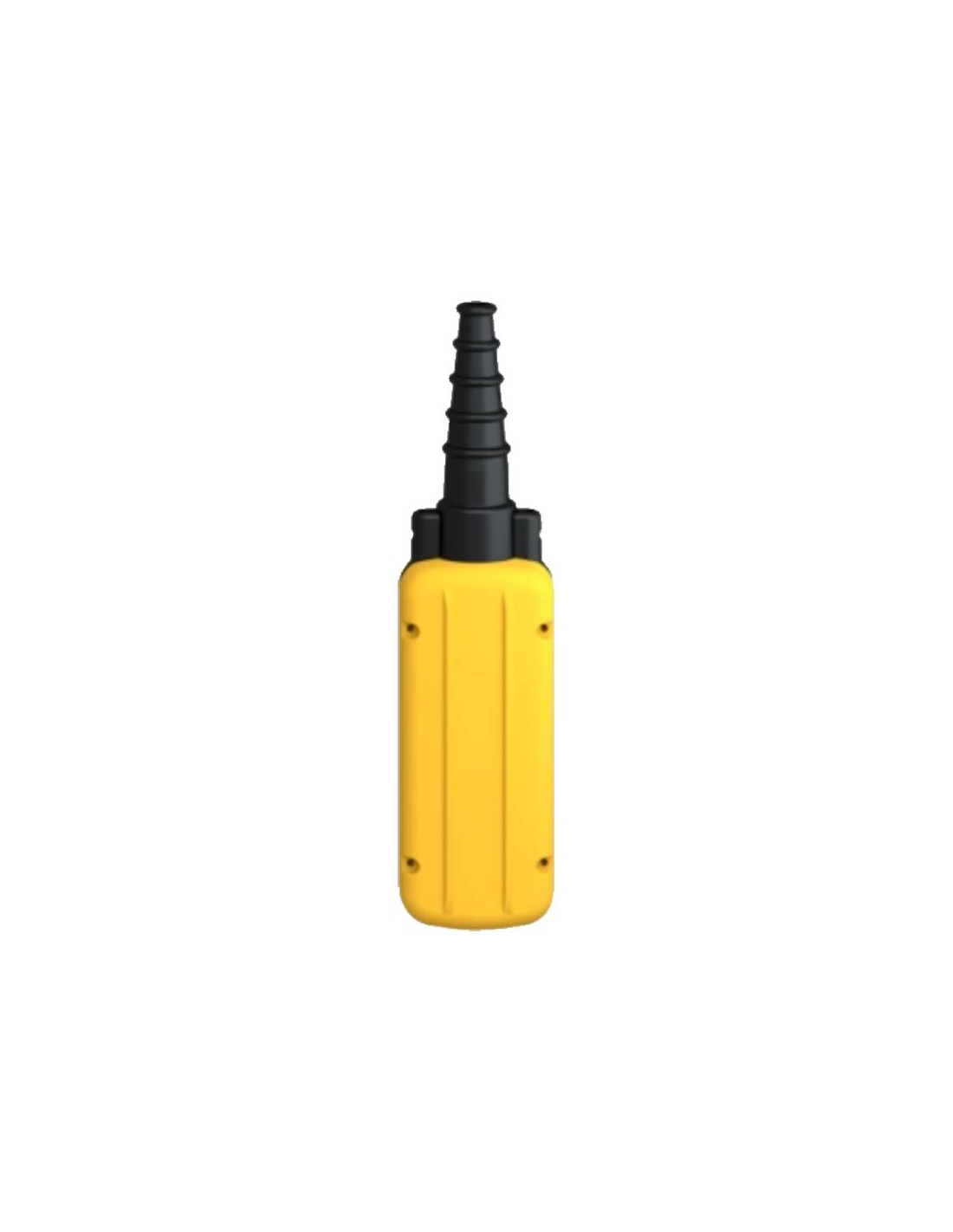

Empty Button box with die-cut for two push-buttons, allows for custom composition by adding the necessary control units for machinery control and general use. Pendant control Box ideal for elevators and crane applications, made of yellow polypropylene with stepped rubber cable entry.

Compatible with push buttons, pilot lights, switches and selectors with a diameter of 22mm.


Reference: XACA02




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Empty pendant Box with die-cut for 2 push buttons/2 functions; allows you to create custom push button boxes by adding the necessary control units for the control of machinery and general-purpose applications such as simple mass production machines, textiles, packaging, handling of small lifting systems, control of garage doors, sliding shutters and smoke extractors


Enclosure made of yellow polypropylene with 8…26 mm rubber-tipped cable entry; it is highly resistant to impacts, dust, water and vibrations thanks to its IP65 protection rating. The box is composed of an internal mounting plate, a protective cable sheath, an internal cable clamp , a suspension ring and a cable flange (to tighten the sheath onto the cable).



Characteristics:

  • Manufacturer: SCHNEIDER
  • Reference: XACA02
  • HARMONY XAC SERIES
  • Product Type: Pendant Control Station
  • Number of drills: 2
  • Surrounding material: Double insulation polypropylene
  • Cable entry: Rubber handle with 8…26mm graduated entry
  • Vertical operator cutting centers: 30mm
  • Protective treatment: TH
  • Operating temperature: -40…70C
  • Overvoltage category: Class II according to IEC 61140
  • IP protection class: IP65 according to IEC 60529
  • IK protection class: IK08
  • Mechanical durability: 1000000 cycles
  • Weight: 0.44kg
  • Regulations: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60204-32, UL 508



Dimensions (mm/in):



(1) For 2 and 3 pin XACA stations
(2) For 4 and 8 pin XACA stations
(3) With emergency stop triggering action performed with the head operator
(4) Inner diameter













    For further information, you can download the technical sheet by clicking on the "Attached Files" tab.

    Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
