Manual lever valve 1/4 3 way 2 fixed positions front lever - Metal Work

€43.55 Tax included

€35.99 tax excl.

7020001400

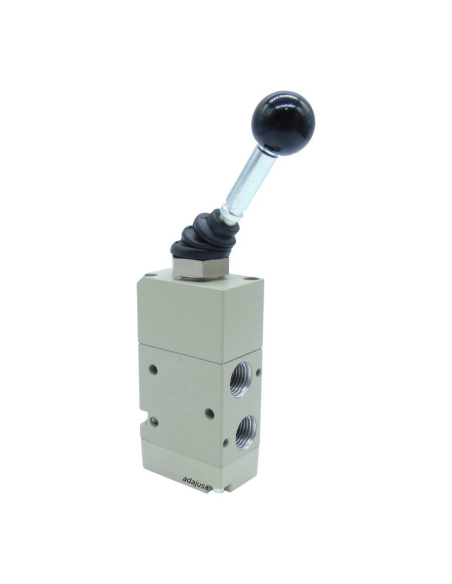

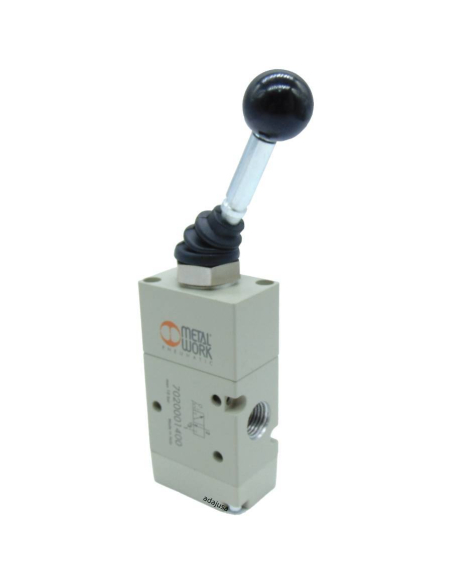

Valve of 1/4 manual drive by monostable front lever. 3 ways 2 fixed positions, metal body. For control of cylinders of simple effect.

Reference: 7010001400

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/4 manual drive by monostable lever of 2 fixed positions, 3 ways 2 fixed positions, which allow to control cylinders of simple effect. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Fixing by side screws or front nut. For pneumatic applications.

Manufacturer: Metal Work.

  • Reference: MAV 35 VLS OO Code: 7020001400
  • Operating pressure: Empty ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 7.5
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 1100

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
