Valve 1/4 5-way 3 positions spring return c.p.- Mindman

€44.78 Tax included

€37.01 tax excl.

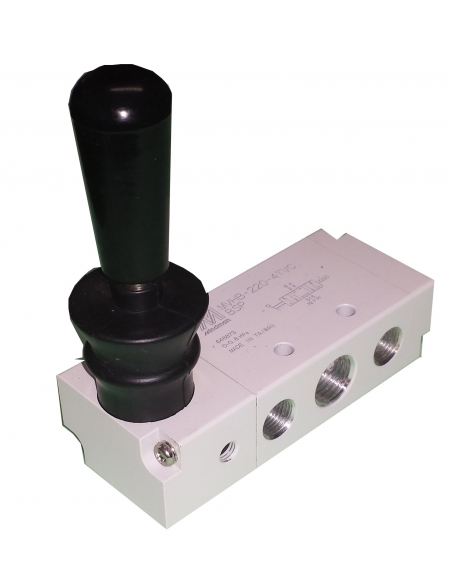

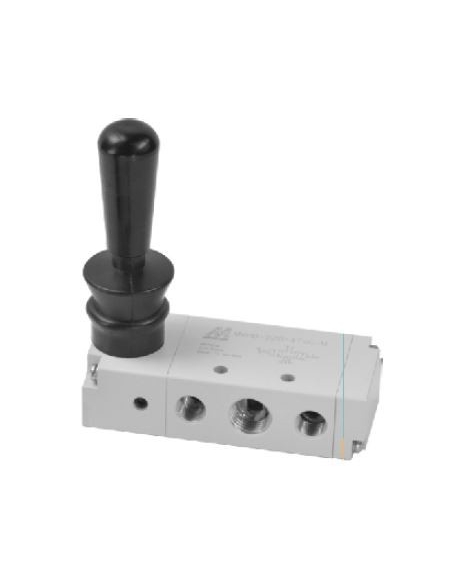

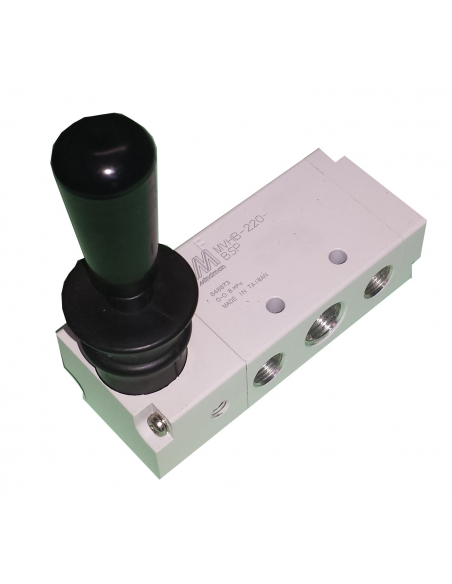

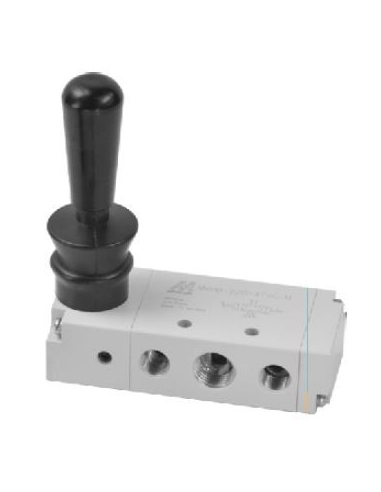

1/4 valve manual drive per lever. 5-way 3 positions, return spring, pressure centers, metal body. For dual-effect cylinder control.

Reference: 281MVHB2204TVPSP
https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 manual drive valve by 3-position lever, spring return, pressure centers, for double-effect cylinder control, the valve has 3 stable positions, in one of them the cylinder advances, in the middle, the cylinder stops but maintains pressure by the two inputs (force), and in the other position the cylinder is collected.

It can also be used as a pass-through or cutting valve and general purpose

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHB2604TVRSP.
  • Type: 5 ways.
  • Mode: 3 monostable positions (spring return), centers with pressure.
  • Thread type: G 1/4".
  • Type of exhaust threads: G 1/8".
  • Effective surface: 18mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 8 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw fastening: 4 through holes 4.2mm.
  • Valve body material: Metal.
  • Weight: 278 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones valvula mindman centros presión 1/4 3 posiciones resorte
