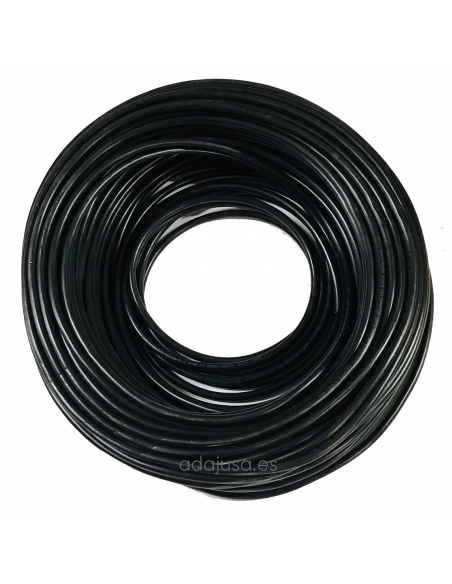

Flexible hose roll of 5 conductors 2.5mm2 section each, black PVC insulation. The TopFlex VV-F H05VVF multiconductor cable has been specially designed to connect small appliances and machinery, is recommended for indoor use and can also be used for light mobile service.
Driver Colors:
- Blue.
- Black.
- Brown.
- Grey.
- Yellow/Green.
Supplied in plastic packaging, in 100m rolls.
Technical details:
- Manufacturer: Top Cable.
- Series: TopFlex VV-F H05VV-F.
- Conductor: electrolitic copper class 5 (flexible) according to UNE-UN 60228.
- Insulation: flexible PVC black color.
- Nominal section per conductor: 2.5mm2.
- Rated voltage: 0.6/1kV.
- Thermal Features:
- Temp. driver's maximum: 90oC.
- Temp. short-circuit maximum: 250oC (maximum 5 seconds).
- Temp. minimum service: -40oC (static with protection).
- Features against fire:
- Non-flame propagator according to UNE-EN 60332-1 and IEC 60332-1.
- CPR Fire Ratio: E according to EN 50575.
- Outside diameter: 11.6mm.
- Impact resistance: AG2 Medium.
- Curvature radius: 5 x outer diameter.
- Chemical Attack Resistant: Good
- UV resistance: UNE 211605.
- Presence of water: AD7 immersion.
- Installation conditions:
- On the air.
- Buried.
- Tubing.
- Design: According to CPR standard (EN 50575).
Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
- Applications:
- Industrial use.
- Alumbado exterior.
- Packaging: roll of 100m. with retracted film.
- Weight: 21.3 kg.
