Flexible cable for photovoltaic installations 4 mm black
Flexible cable for photovoltaic installations 4 mm black

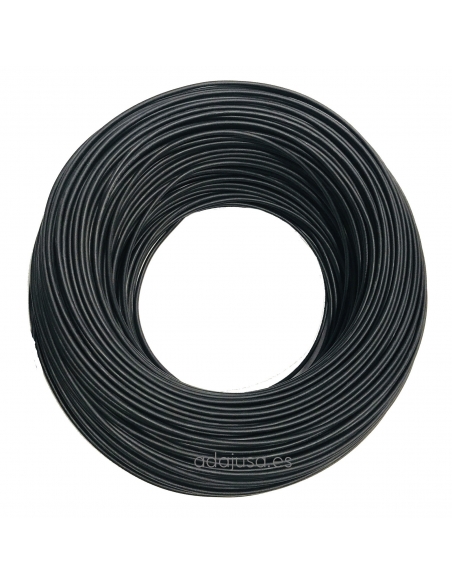

Roll of flexible cable for photovoltaic installations 4 mm halogen free black 100m

€125.45 Tax included

€103.68 tax excl.

4mm2 section flexible power cable roll, black color, suitable for use in photovoltaic systems, connection between photovoltaic panels, and from panels to DC or alternating current inverter. Thanks to the design of its materials, it can be installed outdoors with full guarantees, it is also suitable for submerged installations (AD8).

Halogen-free and designedunder CPR (EN 50618), with an intended use of at least 25 years.

  • Series: TopSolar PV
  • Color: Black.
  • Section: 4mm2.

logotipo_top_cable

logo_CPR_HQ

No queries yet, leave the first!


Flexible unipolar power cable of 4mm2 section, in black, low smoke emission and halogen-free. Suitable for use on the DC side of photovoltaic systems, with a rated voltage of 1.5kV between conductors and between conductor and ground in DC current.

This cable family is suitable for photovoltaic installations, both in mobile and fixed installation. Very flexible cable especially suitable for connection between photovoltaic panels, and from the panels to the DC or alternating current inverter.

Compatible with most connectors. Thanks to the design of its materials, it can be installed outdoors with full guarantees, resistant to ultraviolet rays.

The cables are suitable for use with Class II equipment. The period of use provided under normal conditions, as specified in EN 50618, is at least 25 years. Suitable for submerged installations (AD8).

The conductor type is flexible of annealed and tinned electrolytic copper wires, with a halogen-free rubber outer cover.

Supplied in carton packaging, in 100m rolls

Technical details:

  • Manufacturer: Top Cable
  • Series: TopSolar PV H1Z2Z2-K
  • Driver: copper annealed and stagnatedelectrolytic, class 5 according to EN60228 / IEC 60228
  • Insulation: Halogen-free rubber, according to EN 50618
  • Nominal section: 4mm2
  • Color: Black
  • Rated voltage:
    • DC voltage: 1.5kV (maximum voltage of 1.8 kV)
    • AC voltage: 1.0/1.0 kV
  • Voltage drop (V/A x km): 14.3
  • Nominal current (*):
    • Air intensity: 55A
    • Intensity on surface: 52A
    • Surface adyancent intensity: 44A.
  • Thermal Features:
    • Ambient temperature range: -40oC to +90oC
    • Temp. driver's maximum: 120oC
    • Temp. short-circuit maximum: 250oC (maximum 5 seconds)
  • Characteristics vs. Fire:
    • Non-flame propagator according to UNE-EN 60332-1 and IEC 60332-1
    • Non-fire spread: according to EN 50399
    • CPR fire ratio: Dca-s2,d2,a2 according to EN 50575
  • Outside diameter: 5.4mm
  • Curvature radius: 5 x outer diameter
  • Resistance to greases and oils: excellent
  • Resistance to chemical attacks: excellent
  • Water presence: submerged AD8
  • Installation conditions: airy or buried
  • Design: According to CPR standard (EN 50575)
  • Applications: Photovoltaic installations
  • Weight: 60 kg.
  • Note (*): The maximum permissible intensities must be multiplied by the appropriate correction factors depending on the installation conditions.
