Filter 1/8 20 micron semi-automatic purge FRL MINI series - Aignep

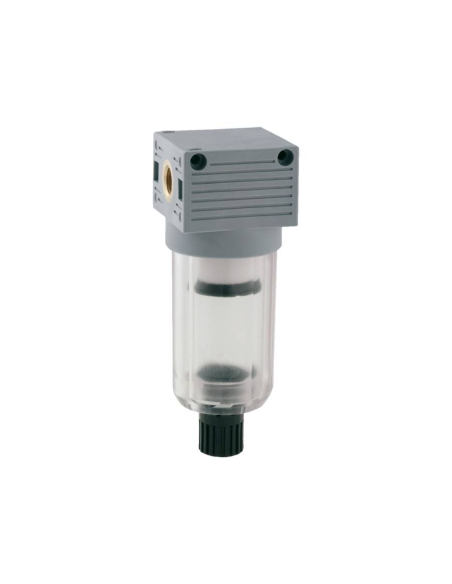

1/8 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size. The type of purge is semi-automatic, discharging when the pressure in the filter approaches zero.

Among the main features of this filtering group it has a high flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Features:

• Manufacturer: Aignep
• Manufacturer's part number: T010002201000
• Threaded drive: 1/8"
• Filtration degree: 20 μm
• Maximum inlet pressure: 15 bar
• Manual condensate drain and automatic drain when pressure is removed.
• Flow rate at 6 bar (∆P 1 bar): 800 Nl/min

• Fluid: Compressed air or other inert gases
• Cup capacity (condensation) (cm3): 17,5
• Mounting position: Vertical.
• Working temperature: -10 to +50ºC.
• Reference standard: PED 2014/68/EU

For other sizes or references: consult us.

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information, you can download the technical data sheet by clicking on the "Attachments" tab
