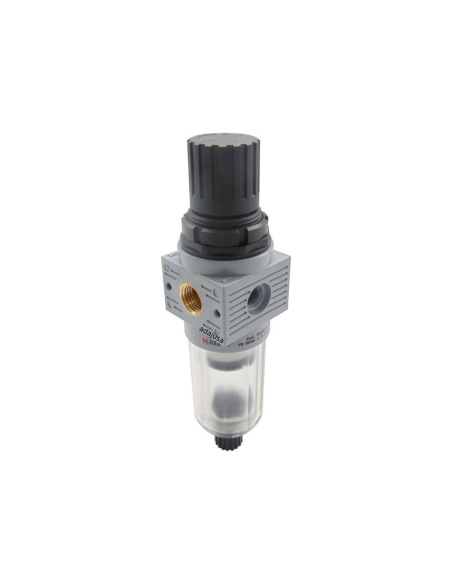

Filtering unit with pneumatic pressure regulator, consisting of 1 element (Filter-regulator) with semi-automatic drain. This device combines in a simple unit the functions of filtration, condensate separation and pressure regulator. The pneumatic pressure regulation range is between 0 and 12 kg/cm2, the filtration degree is 20 μm.
Among the main features of this filtering group, it has a high flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metal terminations.
The type of drain is semi-automatic, it discharges the condensate when the pressure approaches zero.
Note: the pressure gauge is not included in the supply, this has to be ordered separately.
Characteristics:
- Manufacturer: Aignep
- Series: FRL MINI
- Part number: T030002241000
- Thread size: 1/8"
- Adjustment range: 0 to 12 bar
- Filtration degree: 20 μm (*)
- Maximum inlet pressure: 15 bar.
- Manual condensate drain and automatic drain when pressure is removed.
- Built-in overpressure bleed valve.
- Flow rate at 6 bar (∆P 1 bar): 600 Nl/min
- Thread size for pressure gauge: 1/8"
- Screws for mounting: M3 (Not included)
- Mounting position: Vertical
- Working temperature: -10 to +50ºC
- Reference standard: PED 2014/68/EU
(*) On request, units can be supplied with a filtration degree of:
(**)Other regulation ranges on request:
Dimensions:
Material for professional use, install in compliance with the regulations in force at the place of installation.
For further information you can download the data sheet by clicking on the tab "Attachments"
