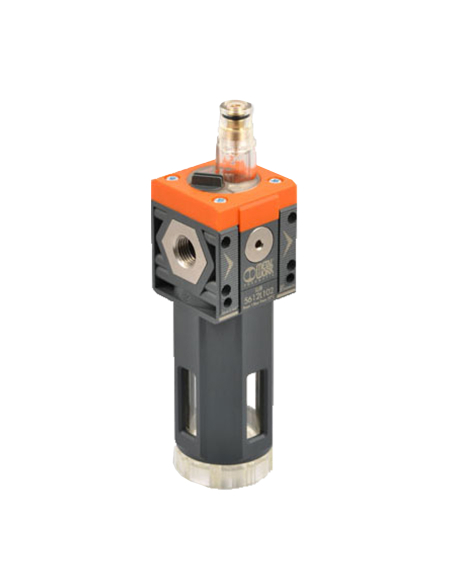

1/8 technopolymer lubricator
1/8 technopolymer lubricator

Lubricator 1/8 Size 1 Syntesi technopolymer - Metal Work

€32.62 Tax included

€26.96 tax excl.

1/8 pneumatic lubricating cup, in technopolymer. Syntesi group.

Reference: 5611L101

metal work logo


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8 size 1 pneumatic lubricator cup, to be coupled to a filter group or for independent use. The lubricating cup is made of high resistance technopolymer.

  • - Manufacturer: Metal Work
  • - Manufacturer reference: 5611L101.
  • - Thread size: 1/8.
  • - Group size: size 1.
  • - Maximum inlet pressure: 15 bar .
  • - Cup capacity: 60 cm3
  • - Flow rate at 6 bar (ΔP1bar): 1600 Nl/min.
  • - Wall fixing screws: M4.
  • - Mounting position: Vertical.
  • - Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Dimensions syntesi series lubricator

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
