Regulator quick exhaust 1/8 0-8 bar FRL MINI...
Regulator quick exhaust 1/8 0-8 bar FRL MINI series - Aignep

Regulator quick exhaust 1/8 0-8 bar FRL MINI series - Aignep

€17.44 Tax included

€14.41 tax excl.

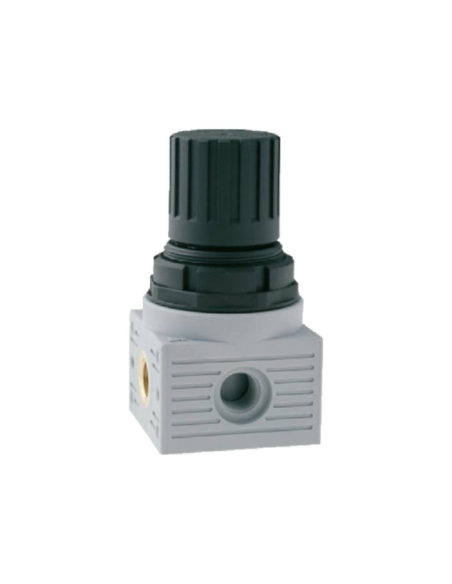

Regulator 1/8pressure regulating 0-8 bar, with technopolymer body and built-in quick exhaust valve. Allows stability of the outlet pressure at the preset pressure.

Series: FRL mini
Reference: T070002030000

Simbolo neumatico filtro Adajusa
Logotipo Aignep Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Regulator 1/8"pneumatic pressure regulator, technopolymer body, with quick release valve for applications where excess pressure must be evacuated quickly. High stability of the set pressure. The regulator provides high flow rate with reduced pressure drop.

Among the main features of this filtering group, it has a high flow performance compared to its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Characteristics:

  • Manufacturer: Aignep
  • Manufacturer's part number: T070002030000
  • Threaded actuator: 1/8"
  • Regulating range: 0-8 bar
  • Maximum inlet pressure: 15 bar
  • Flow rate at 6 bar (∆P 1 bar): 600 Nl/min
  • Medium: Compressed air or other inert gases
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Reference standard: PED 2014/68/EU

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa
TABLA T010 MINI

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
