Pneumatic filter 1/4 20 EVO series semi-automatic purge | Aignep | ADAJUSA | price

Filter 1/4 20 micron semi-automatic drain size 1 EVO FRL series - Aignep

Name: Filter 1/4 20 micron semi-automatic drain size 1 EVO FRL series - Aignep
Brand: Aignep
SKU: Y010103201000
Price: 28.02 EUR
Availability: BackOrder

€28.02 Tax included

23.16 tax excl.

Y010103201000

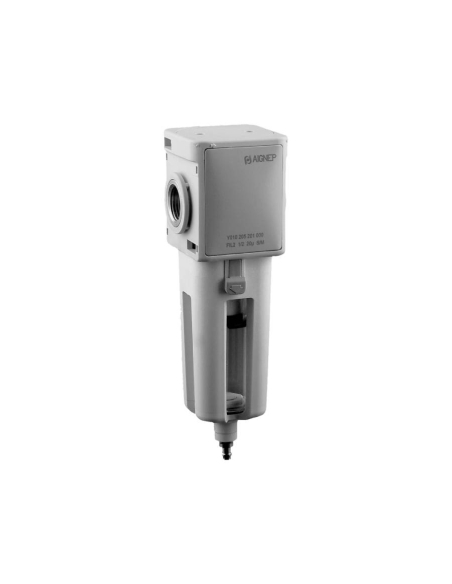

1/4 filter, with a filtration degree of 20μm and semi-automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer with metal endings. Made in Italy.

Series: EVO
Part number: Y010103201000

Simbolo neumatico filtro Adajusa
Logotipo Aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size (T1). The type of purge is semi-automatic, discharges when the pressure in the filter approaches zero.

Features:

Manufacturer: Aignep
Manufacturer's part number: Y010103201000
Threaded drive: 1/4"
Group size: size 1.
Filtration degree: 20 μm
Maximum inlet pressure: 15 bar
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 2500
Fluid: Compressed air or other inert gases
Cup capacity (condensing) (cm3): 28
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Catalogo FRL EVO

Download (4.94MB)
