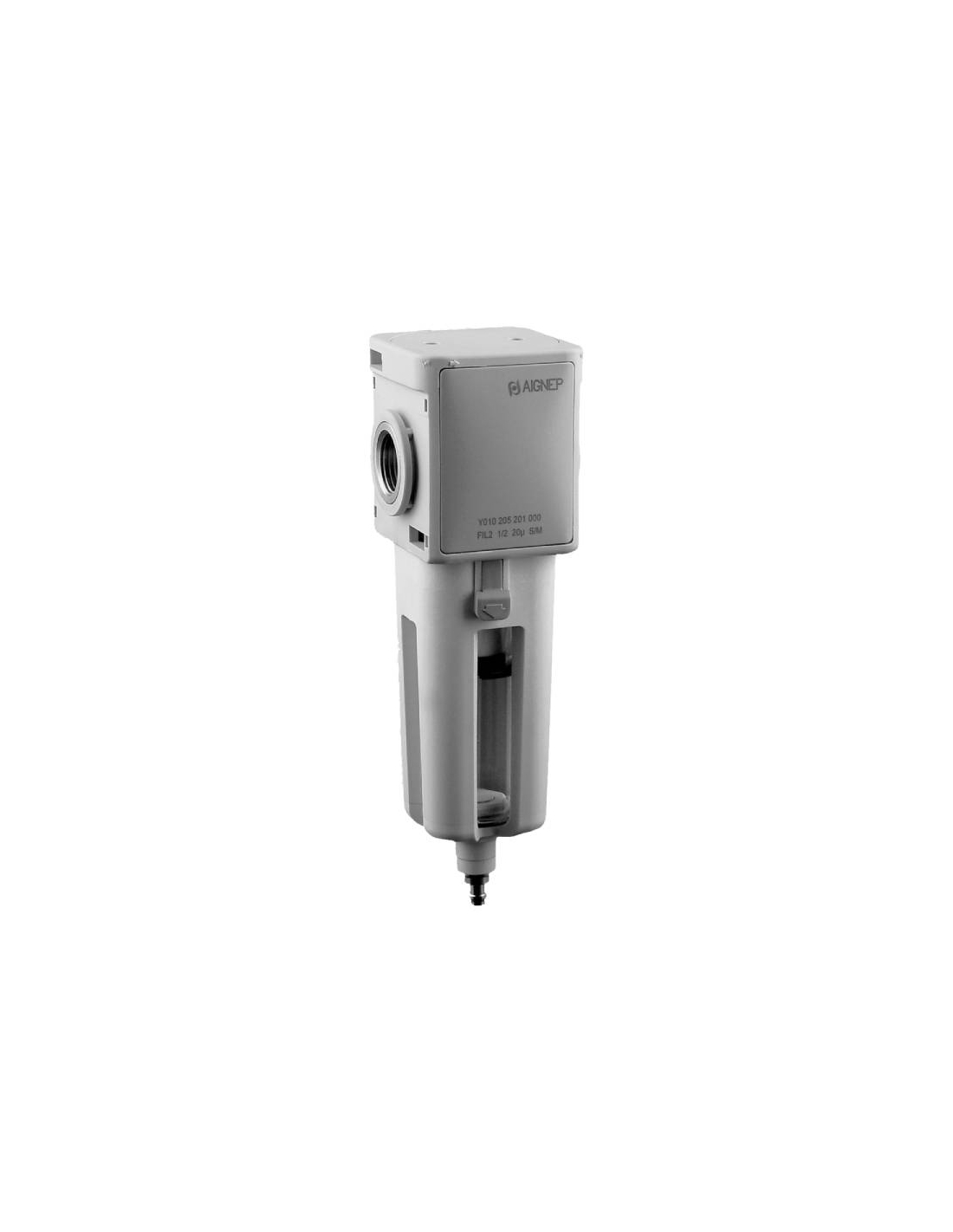

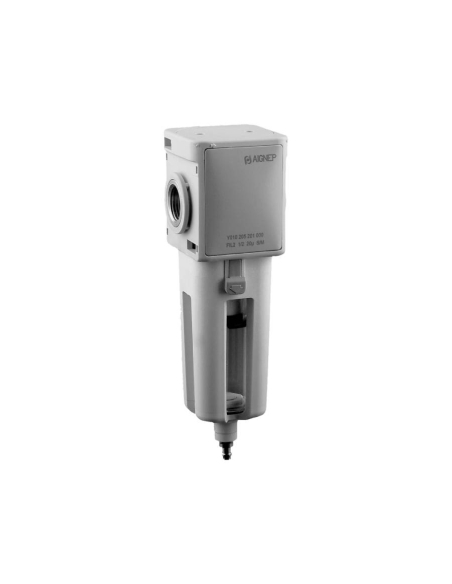

Filter 1/4 20 micron automatic purge size 1 FRL EVO series - Aignep

Name: Filter 1/4 20 micron automatic purge size 1 FRL EVO series - Aignep
Brand: Aignep
SKU: Y010103202000
Price: 49.973 EUR
Availability: PreOrder

€49.97 Tax included

€41.30 tax excl.

Filter 1/4, with a filtration degree of 20μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer with metal endings. Made in Italy.

Series: FRL Evo
Part number: Y010103202000

Simbolo neumatico filtro Adajusa
Logotipo Aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size (T1). The type of drain is automatic, discharges condensate when it reaches the maximum allowable level regardless of operating pressure.

Features:

Manufacturer: Aignep
Manufacturer's part number: Y010103202000
Threaded drive: 1/4"
Unit size: size 1.
Filtration degree: 20 μm
Maximum inlet pressure: 15 bar
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 2500
Fluid: Compressed air or other inert gases
Cup capacity (condensing) (cm3): 28
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Catalogo FRL EVO

Download (4.94MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

Metal Work

MWMP4318012

€6.06 (€5.01 tax excl.)

Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar semi-automatic drain Syntesi series - METAL WORK

Metal Work

5612B262

€43.00 (€35.54 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...

Filter groups of 1/4 FR-L

Lubricator 1/4 technopolymer size 1 Syntesi - Metal Work

Metal Work

5612L102

€32.62 (€26.96 tax excl.)

Pneumatic lubricating vessel of 1/4 in technopolymer. Gurpo SyntesiReference: 5612L102 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Filter-regulator 1/4 T1 Syntesi - Metal work - ADAJUSA

Syntesi regulator filter

Pneumatic filter-regulator 1/4 0-12 bar automatic drain Syntesi series - Metal Work

Metal Work

5612B272

€53.55 (€44.26 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: Synthesis Reference:...

Syntesi regulator filter

Pneumatic filter-regulator 1/4 0-2 bar automatic drain Syntesi series - Metal Work

Metal Work

5612B402

€65.21 (€53.89 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) and regulation range 0-2 kg/cm2, filtration degree of 5 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: Synthesis Reference:...

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-8 bar series FRL MINI - Aignep

Aignep

T030003231000

€28.86 (€23.85 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size and regulation range 0-8 kg/cm2, filtration degree of 20 μm . These filtering groups are manufactured in technopolymer and with metallic terminations. Made in ItalySeries: FRL MiniReference: T030003231000 Representative image...

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-8 bar semi-automatic purge size 1 FRL EVO series - Aignep

Aignep

Y030103231000

€49.42 (€40.84 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size (T1) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.Series: FRL Evo Reference: Y030103231000 Representative image for...

16 other products in the same category:

Pack

Compressed air filtration and treatment groups

Regulator pressure 1/4 0-8 bar complete FRL MINI series - Aignep

Aignep

PK-T020003030000

€25.53 (€21.10 tax excl.)

Regulator 1/4 fullpressure, with regulation between 0-8 bar, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure.Series: FRL MINIReference: PK-T020003030000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Filter groups of 1/4 FR-L

Lubricator 1/4 Manual Size 1 technopolymer FRL EVO series - Aignep

Aignep

Y040103000100

€28.01 (€23.15 tax excl.)

1/4" pneumatic lubricating cup in technopolymer with compact size (T1) and manual oil filling. Made in Italy. Series: FRL Evo Part number: Y040103003000100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Square clamping group series bit - Metal Work - ADAJUSA

Accessories for filtration groups

Square clamping group bit and syntesi T1 1/4 - Metal Work

Metal Work

9200701

€3.42 (€2.83 tax excl.)

Bracket for fixing filter group and pneumatic regulator of the series bit and syntesi size 1. Reference: 9200701 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-8 bar complete semi-automatic purge size 1 FRL EVO...

Aignep

PK-Y030103231000

€50.29 (€41.56 tax excl.)

Pneumatic pressure filter-regulator with 1/4pressure gauge , 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size (T1) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy. Series: FRL Evo Reference: PK-Y030103231000...

Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA

Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA 2

Filter groups 1/4

Pneumatic filter group 1/4 regulation 0-12 bar automatic drain series New Deal - Metal...

Metal Work

1226414

€104.21 (€86.12 tax excl.)

1/4 filter group, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size in 2 modules (FR+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1226414 Representative image for...

Regulator pressure 1/4 0-12 bar technopolymer - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Regulator pressure 1/4 0-12 bar technopolymer Syntesi - Metal Work

Metal Work

5612R162

€31.57 (€26.09 tax excl.)

Pressure regulator of 1/4 regulation 0-12 Kgrs, body in technopolymer extreme reliability. It allows stability of the outlet pressure to the predetermined pressure. Possibility of fixing by means of side drills. Padlock locking system. Syntesi GroupReference: 5612R162 Manometer not included (can be ordered separately, screw pressure gauge 1/8)...

Filter + Regulator + Lubricator New Deal - Metal Work - ADAJUSA

Filter groups 1/4

Pneumatic filter group1/4 regulation 0-12 bar semi-automatic purge serie New Deal -...

Metal Work

1224054

€100.05 (€82.69 tax excl.)

1/4 filter group, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1224054 Representative image for illustrative...

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar series FRL MINI - Aignep

Aignep

T030003241000

€28.86 (€23.85 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size and regulation range 0-12 kg/cm2, filtration degree of 20 μm . These filtering groups are manufactured in technopolymer and with metallic terminations. Made in ItalySeries: FRL MiniReference: T030003241000 Representative...

Filter groups of 1/4 FR-L

Regulator pressure with pressure gauge and lockable 1/4 0-12 bar size 1 FRL EVO series...

Aignep

Y020103040000

€36.80 (€30.41 tax excl.)

Regulator 1/4 pressure regulator with integrated pressure gauge, range 0-12 bar, size 1, technopolymer body with metal endings. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy. Series: FRL EvoPart number: Y020103040000 Representative image for...

Valve + Filter + Lubricator T1 Syntesi - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Filter group 1/4 with shut-off valve regulation 0-12 bar semi-automatic drain series...

Metal Work

5612V10B26L2

€116.35 (€96.16 tax excl.)

Filter group1/4 with manual shut-off valve, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European...

Filter + Lubricator T1 RA Syntesi - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Pneumatic filter group 1/4 regulation 0-8 bar automatic drain Syntesi series - Metal Work

Metal Work

5612B54L102

€97.84 (€80.86 tax excl.)

1/4 filter group, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) in 2 modules (FR+L) and regulation range 0-8 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5612B54L102 Representative image...

Compressed air filtration and treatment groups

Filter 1/4 20 micron semi-automatic purge FRL MINI series - Aignep

Aignep

T010003201000

€16.81 (€13.89 tax excl.)

Filter 1/4, with a filtration degree of 20μm and semi-automatic discharge, compact size, for retention of solid or liquid impurities from the air compressor .These filtering cups are made of technopolymer and with metal endings. Made in Italy. Series: FRL miniPart number: T010003201000 Representative image for illustrative purposes, the item...

Pack

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar complete semi-automatic purge size 1 FRL EVO...

Aignep

PK-Y030103241000

€50.29 (€41.56 tax excl.)

Pneumatic pressure filter-regulator with 1/4pressure gauge , 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size (T1) and regulation range 0-12 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy. Series: FRL Evo Reference: PK-Y030103241000...

Filter groups of 1/4 FR-L

Pneumatic filtering group 1/4 regulation 0-8 bar semi-automatic purge size 1 series FRL...

Aignep

Y100103231100

€81.71 (€67.53 tax excl.)

Filtering group of 1/4, maintenance unit of 1/4 for pneumatic applications, semi-automatic purge, compact size (T1) in 2 modules (FR+L), and regulation range 0-8 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.Series: FRL EvoReference: Y100103231100 Representative...

Compressed air filtration and treatment groups

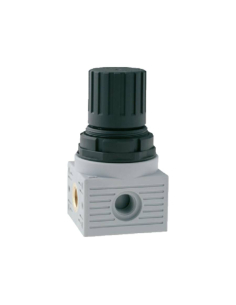

Regulator pressure 1/4 0-12 bar FRL MINI series - Aignep
