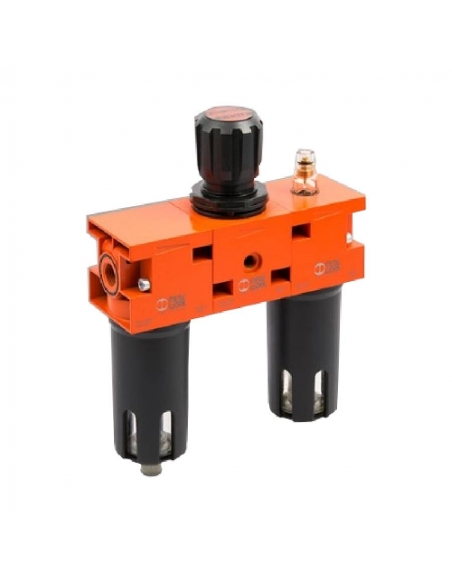

Filter + Regulator + Lubricator 1/4 20 012 SAC New Deal - Metal Work

€118.88 Tax included

€98.25 tax excl.

1/4 filter group, 1/4 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.


Series: New Deal
Reference: 1224414

FRL New Deal scheme

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 filter group, 1/4 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L). Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.

The purge type is automatic and it has a 20 μm filter element.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

  • Manufacturer: Metal Work
  • Reference: FRL 1/4 20 012 SAC
  • Manufacturer reference: 1224054
  • Thread size: 1/4"
  • Regulation field: 0 to 12 bar .
  • Maximum inlet pressure: 18 bar .
  • Condensation drain: automatic
  • Metal cup with external viewer
  • Filtration degree: 20μm.
  • Condensation drain type: SAC
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 140
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 400
  • Wall fixing screws: M4 x 40.
  • Working temperature: -10 to +50ºC.

dimensions F+R+L New deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Manometer 40 1/8 0-12 bar... Manometer 40 1/8 0-12 bar... 2
Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP4318012
€6.17 (€5.10 tax excl.)
Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...
Filter + Lubricator T1 RMSA Syntesi - Metal Work - ADAJUSA
Filter groups of 1/4 FR-L

Pneumatic filtration group 1/4 regulation 0-12 bar semi-automatic purge Syntesi series...

Metal Work
5612B26L102
€76.97 (€63.61 tax excl.)
1/4 filter group, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5612B26L102 Representative...

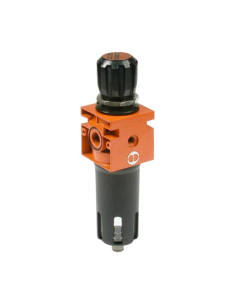

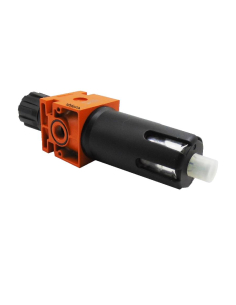

Metal 1/4 Metal Filter-Regulator New deal Metal Work - ADAJUSA Metal 1/4 Metal Filter-Regulator New deal Metal Work - ADAJUSA 2
