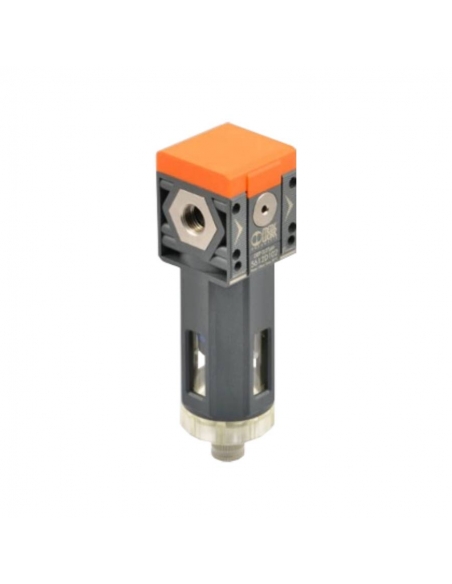

Filter Purifier 1/2 semi-automatic purge Syntesi series - Metal Work

The job of the scrubber filter is to separate solid or liquid particles dispersed in the compressed air .
This separation is achieved thanks to the special filter element called "coalescing cartridge".

Product made of technopolymer specially indicated to eliminate traces of oil present in compressed air. In the front and rear there is a port that can be used as a pressure gauge, pressure switch or as an additional filter for the inlet air.

Characteristics:

• Manufacturer: Metalwork
• Manufacturer reference: 5624D104
• Threaded drive: 1/2"
• Group Size: Size 2
• Filtered degree: 0.01 outlet air purity class ISO8573-1:1.7.2
• Maximum inlet pressure (bar/Mpa/psi): 13 / 1.3 / 188
• Flow at 6.3 bar (0.63 MPa; 91 psi) ( Nl/min): 620

• Min/max temperature at 10 bar; 1MPa; 145psi: -10º to +50ºC
• Weight: 456g
• Condensation discharge type: RMSA
• Fluid type: Compressed air or other inert gases
• Cup capacity: 40cm³
• Mounting position: Upright
• Coupling for additional 1/4" front and rear air intakes
• Flow rate for additional air intakes at 6.3 bar (Nl/min): 1500
• Wall fixing screws: 2 M5 screws

Dimensions:

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
