Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5
Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5
Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5
Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5

Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5

€190.25 Tax included

€157.23 tax excl.

With hollow output shaft of Ø28mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 100.

Reduction ratios: 7.5-10-15.

The powers of the usual engines at 1500 rpm are:

  • 3CV Max. net. i=30.
  • 4CV Max. net. i=20.
  • 5.5CV Max. net. i=10.
Reduction ratio
  • 7.5
  • 10
  • 15

No queries yet, leave the first!

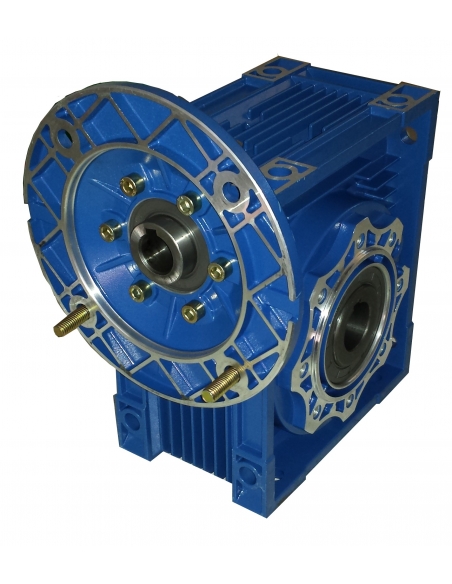

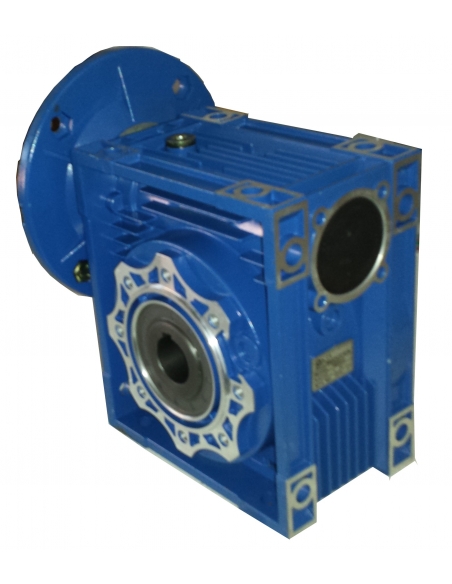

Endless crown reducer of size 75, compact execution and high performance, with hollow output shaft of Ø28mm and input shaft of Ø28mm.

This reducer size supports B5 flange motors size 100, this flange size has an Outer Ø of 250mm and the reducer has an inlet shaft diameter of 28mm., PAM 250/28.

Dimensiones brida entrada reductor sinfin corona

  • P: 250mm.
  • M: 215mm.
  • N: 180mm.
  • D: Ø28mm.

The powers of the motors at 1500 rpm usually used for this type of reducers and with higher service factor fs≥1 are:

  • 3CV 1500rpm. Maximum reduction I = 30.
  • 4CV 1500rpm. Maximum reduction I = 20.
  • 5.5CV 1500rpm. Maximum reduction I = 10.

The reduction ratios (i) available are from 7.5 to 15, depending on the input revolutions we can obtain the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor sinfin corona tamaño 75

You can download all the dimensions of the reducer by clicking on the "ATTACHMENTS" tab.
