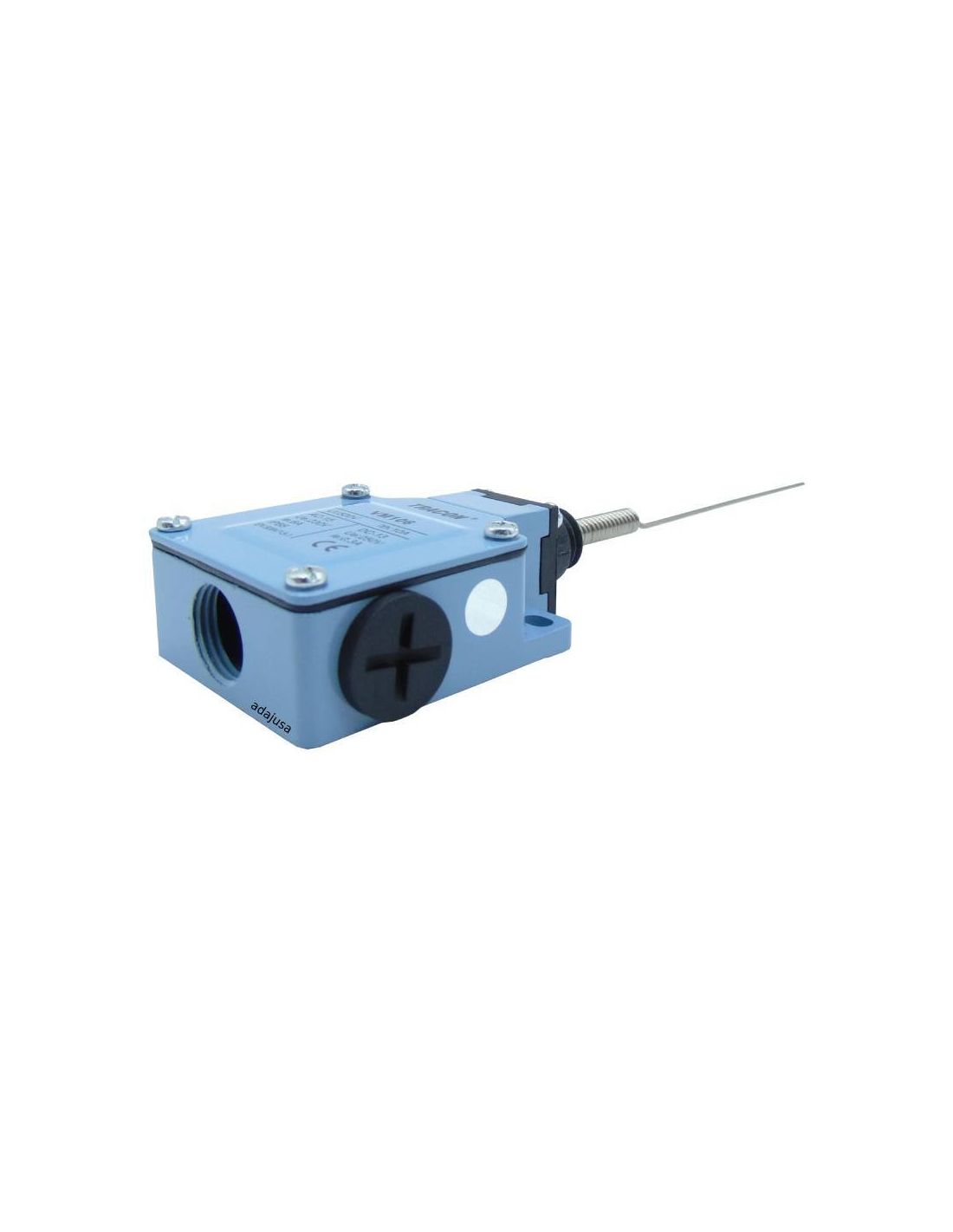

Limit switch flexible rod with spring VM Series
Limit switch flexible rod with spring VM Series
Limit switch flexible rod with spring VM Series
Limit switch flexible rod with spring VM Series

Limit switch flexible rod with spring VM Series

€16.06 Tax included

€13.27 tax excl.

Limit switch electric, contacts 1NA+1NC, vertical steel rod with spring. Manufactured with metal housing and cover, very resistant to shocks.


Reference: VM106


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch the end of the carriage incorporates an electrical, mechanical position detector, with a metal housing and cover highly resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts 1 open NO and 1 closed NC. The limit switch is operated by means of a spring-loaded vertical rod, made of steel, operated in any direction. Waterproof and oilproof, degree of protection IP66.



Operating travel (mm):


Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VM106
  • Type of drive: Spring-loaded vertical steel rod
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 6A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith): 10A
  • Rated insulation voltage: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Metal
  • Input thread: M18
  • Connection cable: 0,75 - 1,5mm2
  • Operating ambient temperature:  -25oC to +55oC
  • Degree of protection: IP66
  • Standards: EN60947-5-1, EN60947-1



Dimensions:






Material for professional use, install respecting the regulations in force at the place of installation.
This component should not be used safety or risky applications.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
