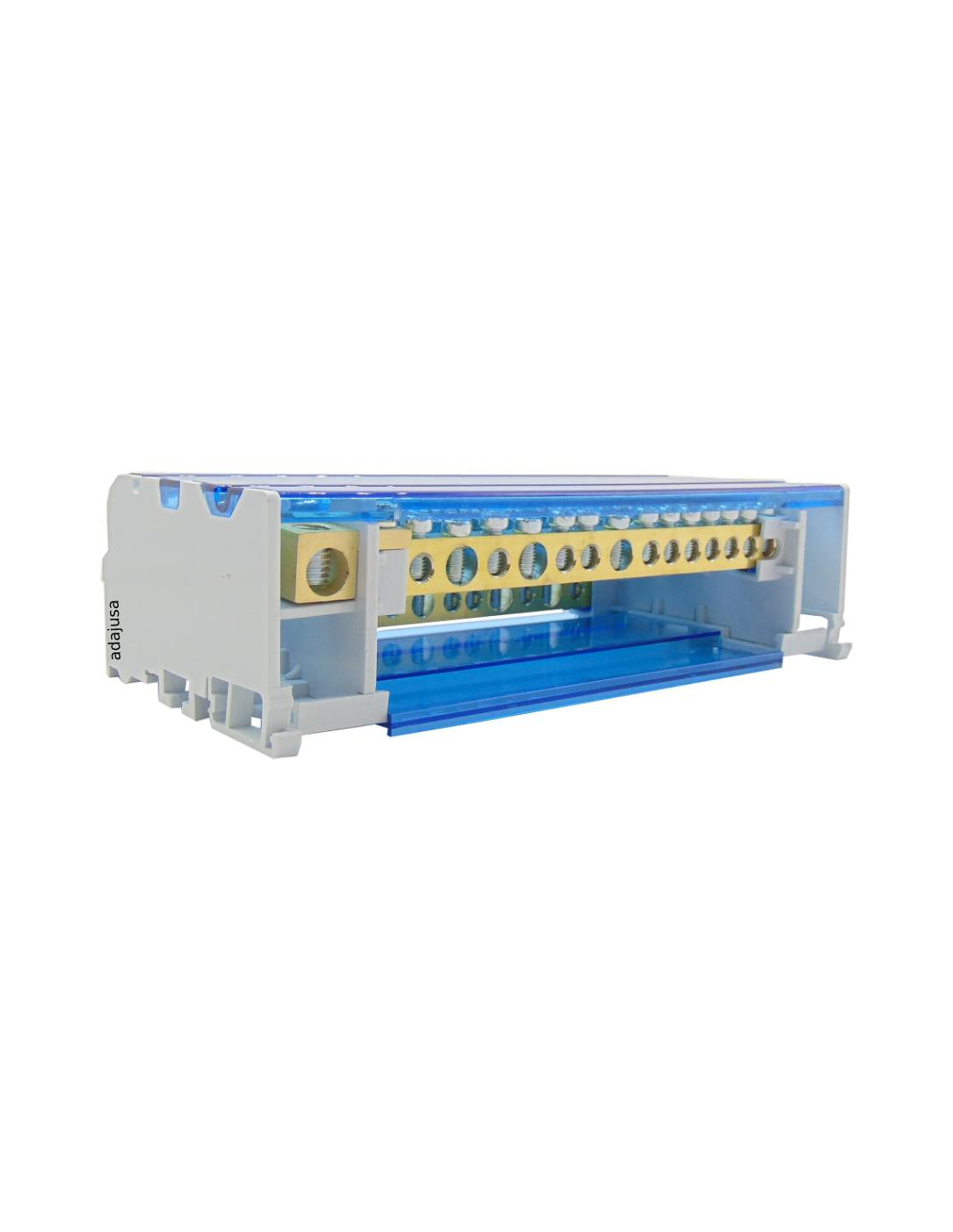

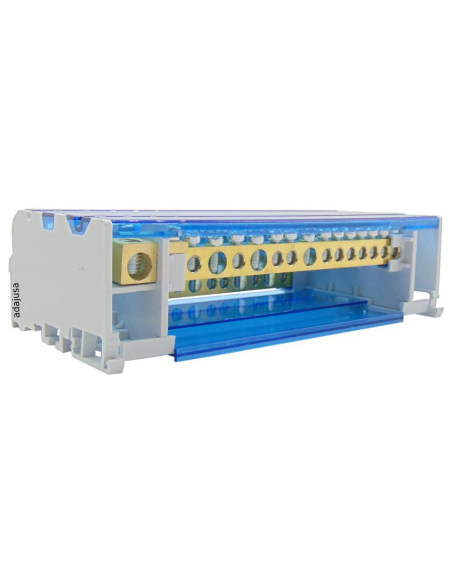

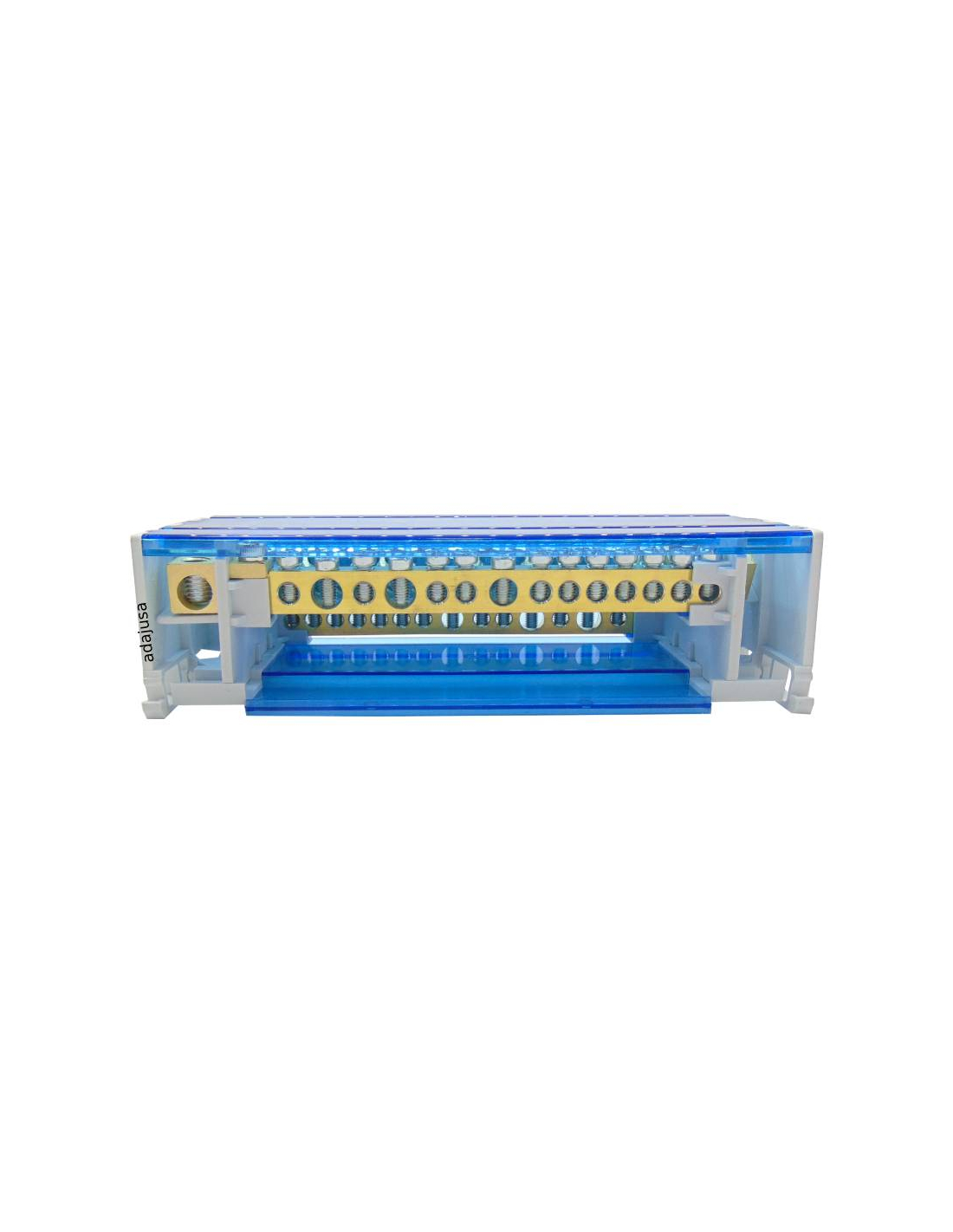

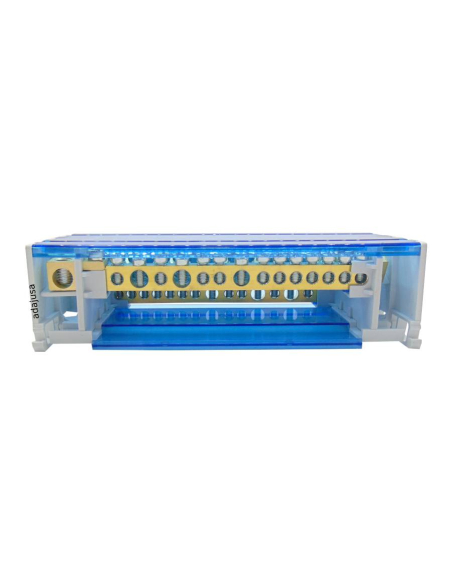

Four-pole distribution switch 14 outlets 125A

€38.32 Tax included

€31.67 tax excl.

BD125154

Four-pole (3 poles + neutral) electrical distribution board with 14 outputs and 1 input, suitable for currents up to 125A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD125154

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Four-pole electrical connection distributor with 14 outlets and 1 inlet, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

It has 4 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

1 inlet Ø9.5mm for cables 10mm² to 35mm²
11 Ø5.5mm outlets for cables 1.5mm² to 6mm²
1 Ø7.5mm outlets for cables 6mm² to 16mm²
2 outlets Ø8,5mm for cables 10mm² to 25mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Manufacturer's reference: BD125154
Type: Four-pole (3P+N)
Rated voltage: 690Vac/dc
Maximum current: 125A
Icw: 4,5kA
Ipk: 21kA
Number of holes per busbar: 14
Holes per pole (holes x Ø mm): 1x9,5 / 11x5,5 / 1x7,5 / 2x8,5
Dimensions: 90x182x50mm
Halogen free
UL94-V0 flammability rating
CE, ROHS certification
Standard: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

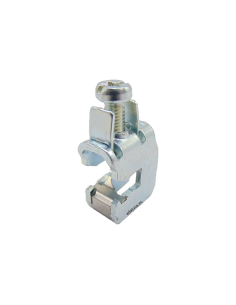

Direct mounting terminal block 120-300mm2 5mm thick plate | Adajusa
