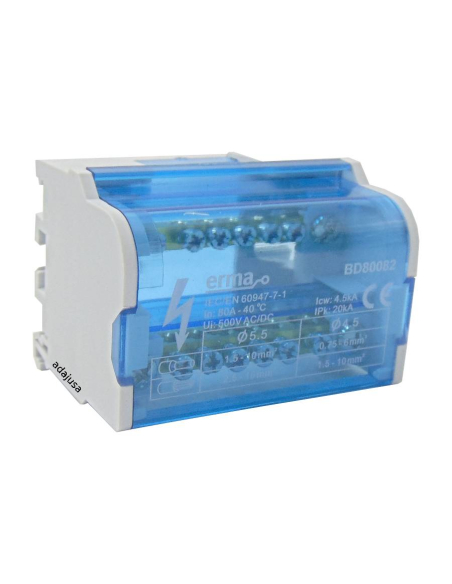

Bipolar distribution switch 5 outputs 80A

€5.25 Tax included

€4.34 tax excl.

BD80082

Two-pole (1 pole + neutral) electrical distribution board with 5 outputs and 3 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD80082

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Bipolar electrical connection splitter with 5 outputs and 3 inputs, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

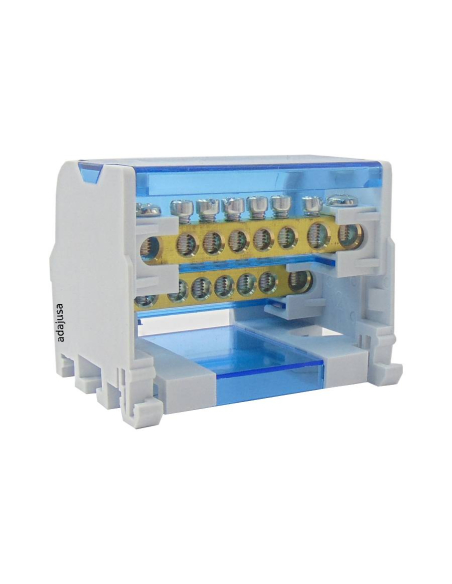

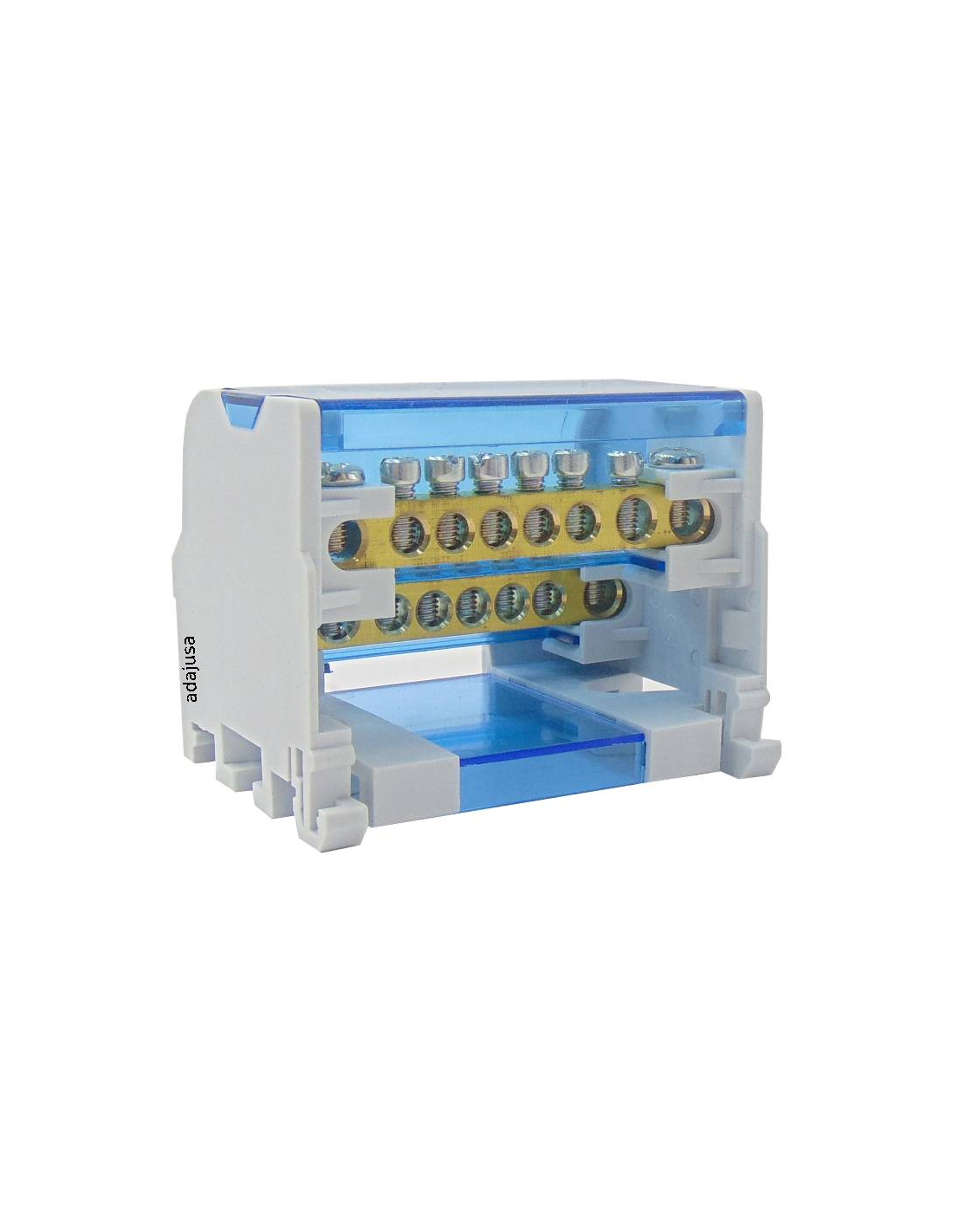

It has 2 distribution bars in brass with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver.

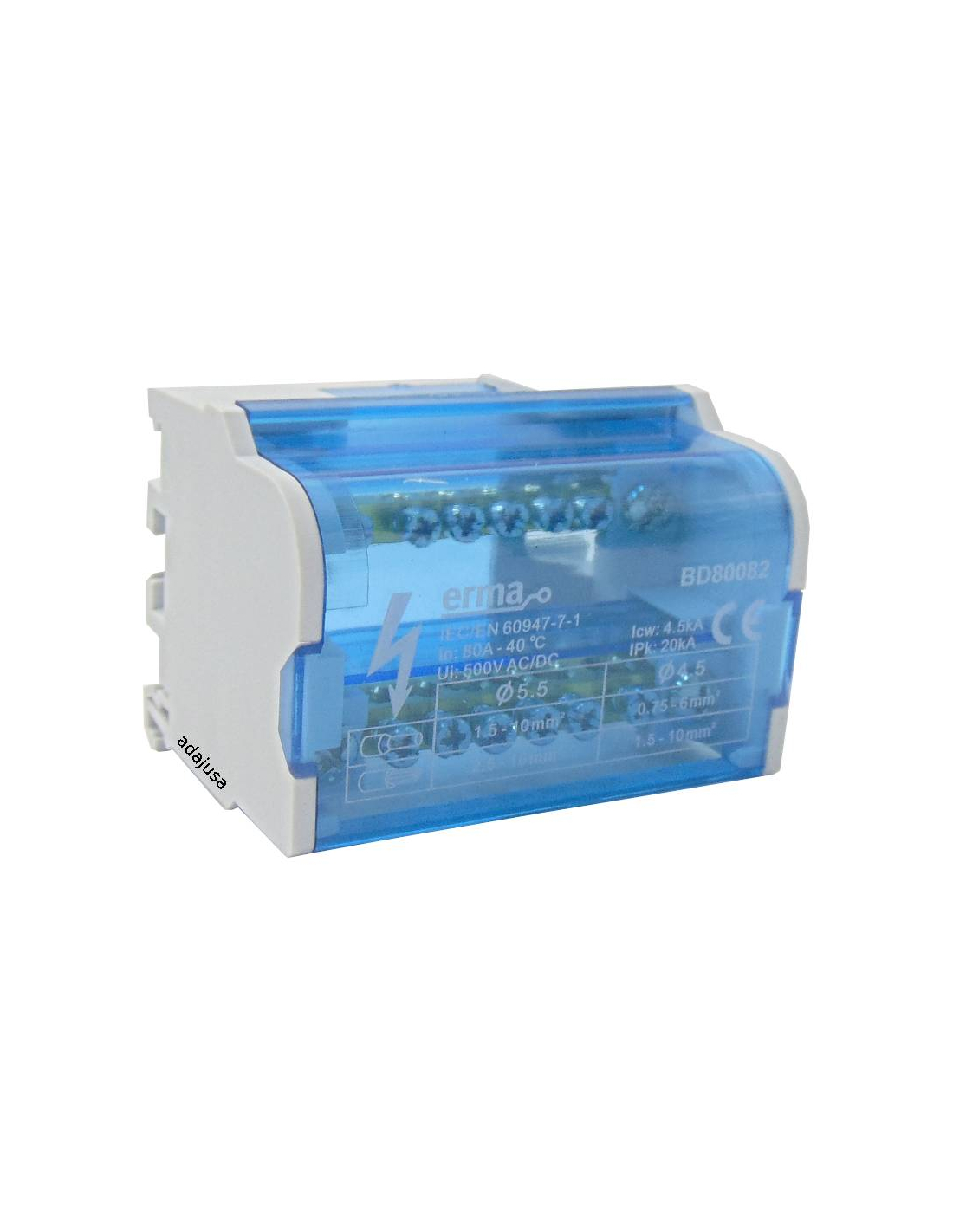

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

3 inlets Ø5.5mm for cables 1.5mm² to 6mm²
5 outlets Ø4mm for cables from 0.75mm² to 4mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Manufacturer's reference: BD80082
Type: bipolar (1P+N)
Rated voltage: 500Vac/dc
Rated current: 80A
Icw: 4,5kA
Ipk: 20kA
Number of holes per busbar: 8
Holes per pole (holes x Ø mm): 3x5,5 / 5x4
Dimensions: 50x64x50mm
Halogen free
UL94-V0 flammability rating
Certification: CE, ROHS
Standards: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.
