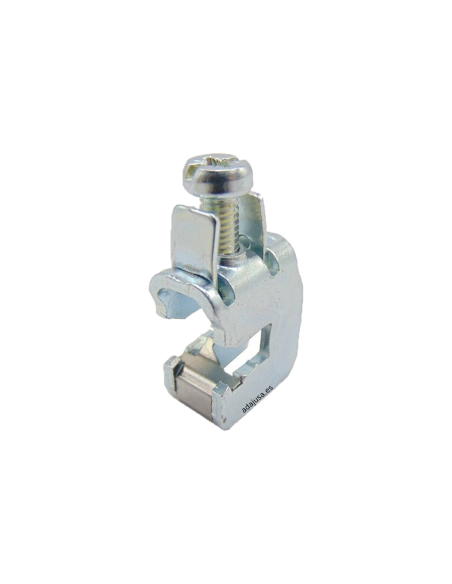

Direct mounting terminal block 16-70mm2 5mm thick plate

Name: Direct mounting terminal block 16-70mm2 5mm thick plate
Brand: XBS
SKU: SZK70F5
Price: 2.73 EUR
Availability: InStock

€2.73 Tax included

€2.26 tax excl.

SZK70F5

Direct mounting terminal block for cable cross-section ^16-70mm2, thickness of the mounting block 5mm.

Reference: SZK70F5

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Direct mounting terminal on 5mm thick copper plates, for cable cross-section between ^16-70mm2. Mounting with quick clamp type coupling. Manufactured in high quality steel, Chromium VI free. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the high clamping force provided by the screw, avoiding torsion thanks to its patented "Twist-Stop" mechanism and guaranteeing a fixed mounting after installation.

Features:

Manufacturer/supplier: XBS/Mixvil
Part number: SZK70F5
Cable cross section: ^16-70mm2
Allowable current: 245A
Mounting: 5mm thick plate
Standard: EN 60999
Material: High quality steel
Spring: Stainless steel

Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Direct mounting terminal 1.5-16mm2 plate thickness 5mm

XBS

SZK16F5

€1.05 (€0.87 tax excl.)

Direct mounting terminal on copper plate for cables with a section of 1.5-16mm 2 . Mounting plate thickness 5mm.Reference: SZK16F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Direct mounting terminal 1.5-35mm2, 5mm plate | ADAJUSA

Direct mounting terminal 1.5-35mm2, 5mm plate | ADAJUSA 2

Electrical connection dealers

Direct mounting terminal 1.5-35mm2 plate thickness 5mm

XBS

SZK35F5

€1.83 (€1.51 tax excl.)

Direct mounting terminal on copper plate for cables with a section of 1.5-35mm 2 . Mounting plate thickness 5mm.Reference: SZK35F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Direct mounting terminal 4-50mm2, 5mm plate | ADAJUSA

Direct mounting terminal 4-50mm2, 5mm plate | ADAJUSA 2

Electrical connection dealers

Direct mounting terminal 4-50mm2 plate thickness 5mm

XBS

SZK50F5

€2.52 (€2.08 tax excl.)

Direct mounting terminal on copper plate for 4-50mm 2 section cables. Mounting plate thickness 5mm.Reference: SZK50F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

16 other products in the same category:

Quick connection terminal 2 poles 32A | Adajusa

Electrical connection dealers

Quick connection terminal 2 poles 32A

TRACON

OVO2,5-2

€0.28 (€0.23 tax excl.)

2-pole quick connection terminal 32A, 400Vac for conductors from 0.5 to 4mm2. Screwless quick connection ensures a simple and safe electrical connection. Part number: OVO2,5-2 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Heat shrink tubing

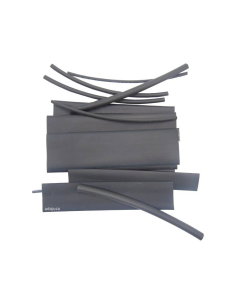

Black heat shrink tubing kit

TRACON

ZSBB-SET

€0.80 (€0.66 tax excl.)

Halogen-free polyolefin heat shrink tubing kit. Includes 15 strips of thin-walled black tubing of different diameters, each 15cm long, shrink ratio 2/1. Part number: ZSBB-SET Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Direct mounting terminal block 120-300mm2 thickness 10mm | Adajusa

Connection and assembly material

Direct mounting terminal 120-300mm2 10mm thick plate

XBS

SZK300F10

€22.09 (€18.26 tax excl.)

Direct mounting terminal block for cable cross-section 120-300mm2, thickness of the mounting block 10mm.Reference: SZK300F10Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Tubular copper terminal 25 mm2 hole 8 mm ADAJUSA

Copper terminals

25 mm2 copper tubular terminal for 8 mm hole

XBS

MSC-25/8,2

€0.47 (€0.39 tax excl.)

Tinned copper tubular terminal for 25 mm 2 section cable and 8 mm hole diameter, manufactured according to IEC 61238-1 standard. Its design guarantees easy insertion of the cable by adjusting securely around it. Reference: MSC-25 25/8.2 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Full wall multipolar connector 6 poles and ground vertical output Pg16

Industrial multipolar connectors

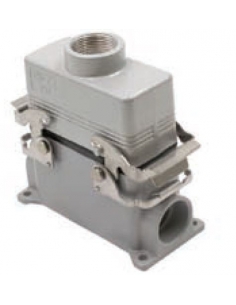

Full wall multipolar connector 10 poles and ground vertical output M20/25

ILME

992MNZ10PV

€76.65 (€63.35 tax excl.)

10-pole multipolar connectors + grounding, complete with M20/25 vertical output, wall mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. Reference: MNZ10PV

Connection Strips - Clemas

16 mm terminal strip

TRACON

S30A-H

€2.42 (€2.00 tax excl.)

Connection strip of 16mm² of 12 poles, made of white polypropylene. For electrical connections. Part number: S30A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

19mmx0.15mm Green Insulating Tape 10m Reel

Friction tape

Green Insulating Tape 19mmx0.13mm Reel 10m

XBS

1910-G

€0.67 (€0.55 tax excl.)

Self-adhesive PVC insulating tape in green color, high quality, self-extinguishing and synthetic rubber adhesive. The width of the tape is 19mm with a thickness of 0.13mm. Supplied in reels of 10m length. Reference: 1910-G Color: Green Width: 19mm Thickness: 0,13mm Reel length: 10m Representative image for illustrative purposes, the item...

View

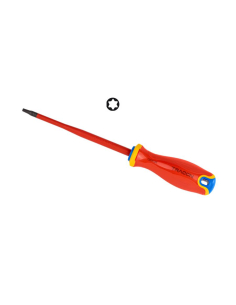

VDE 1000V T15 Torx Screwdriver CDT154100 | ADAJUSA | price

VDE 1000V T15 Torx Screwdriver CDT154100 | ADAJUSA | price 2

Tools

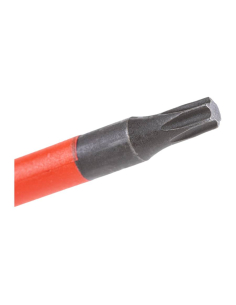

Torx Screwdriver T15 4x100mm VDE 1000V insulation

TRACON

CDT154100

€3.30 (€2.73 tax excl.)

T15 Torx Screwdriver with VDE insulation 1000Vac/1500Vdc. T15 size 4x100mm, magnetized tip and insulated handle. Its light weight and ergonomic handle make it an ideal tool for electrical work. Reference: CDT154100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrical connection dealers

Grounding dealer 14 exits

Generico-GAE

992-P1614

€8.43 (€6.97 tax excl.)

Electric connection delivery unit for distribution of ground conductors, 14 holes distributed in 2 connection bars of 7 holes, in brass with steel screws and support of green polyamide. Fixation on panel or DIN rail. Manufacturer's reference: P1614. Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Connection and assembly material

Direct mounting terminal block 1,5-16mm2 10mm thick

XBS

SZK16F10

€1.44 (€1.19 tax excl.)

Direct mounting terminal block for cables with cross section 1.5-16mm2, thickness of the mounting block 10mm.Part number: SZK16F10Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

VDE 1000V 2.5x75mm flathead Screwdriver CD2575 | ADAJUSA | price

VDE 1000V 2.5x75mm flathead Screwdriver CD2575 | ADAJUSA | price 2

Tools

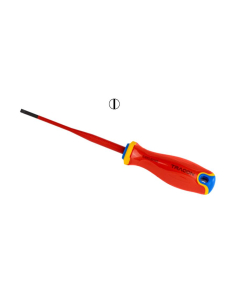

Flathead Screwdriver 2.5x75mm VDE 1000V insulation

TRACON

CD2575

€3.05 (€2.52 tax excl.)

VDE insulated flathead Screwdriver 1000Vac/1500Vdc. Size 2.5x0.4x75mm, magnetized tip and insulated handle. Its light weight and ergonomic handle make it an ideal tool for electrical work. Reference: CD2575 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Set of 9 crown wrenches VDE 1000V insulation CSSET9 | ADAJUSA | price

Set of 9 crown wrenches VDE 1000V insulation CSSET9 | ADAJUSA | price 2

Tools

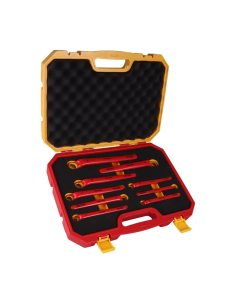

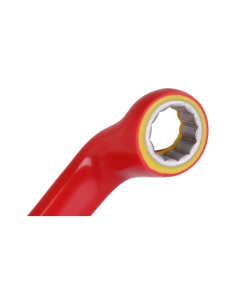

Set of ring spanners VDE 1000V insulation 9 pieces

TRACON

CSSET9

€204.85 (€169.30 tax excl.)

Set of 9 VDE insulated ring spanners 1000Vac/1500Vdc, made of CrV steel. Designed for easy and safe use in tightening or loosening hex head screws in electrical work.Includes 9 offset crown wrenches measuring 10, 11, 12, 13, 14, 17, 19, 21, 24mm and carrying case.Reference: CSSET9Representative image for illustrative purposes, the item supplied will...

Heat shrink tubing

Heat shrink tubing kit various colors

TRACON

ZSB-SET

€0.75 (€0.62 tax excl.)

Halogen-free polyolefin heat shrink tubing kit. Includes 15 strips of thin-walled tubing in different colors and diameters, each 15cm long, shrink ratio 2/1.Reference: ZSB-SET Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

50mmx0.13mm white insulating tape 20m reel

Friction tape

White insulating tape 50mmx0.13mm reel 20m

XBS

5020-W

€3.61 (€2.98 tax excl.)

Self-adhesive PVC insulating tape in white, high quality, self-extinguishing and rubber adhesive. The width of the tape is 50mm with a thickness of 0.13mm. Supplied on 20m long reels. Reference: 5020-W White color Width: 50mm thickness: 0.13mm Length on the reel: 20m

VDE 1000V 3.5x100mm flathead Screwdriver CD35100 | ADAJUSA | price

VDE 1000V 3.5x100mm flathead Screwdriver CD35100 | ADAJUSA | price 2

Tools

Flathead Screwdriver 3.5x100mm VDE 1000V insulation

TRACON

CD35100

€3.28 (€2.71 tax excl.)

VDE insulated flathead Screwdriver 1000Vac/1500Vdc. Size 3.5x0.6x100mm, magnetized tip and insulated handle. Its light weight and ergonomic handle make it an ideal tool for electrical work. Reference: CD35100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Industrial multipolar connectors

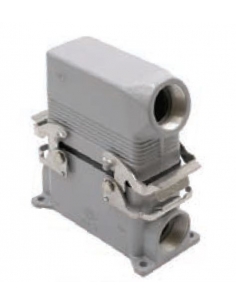

Full wall multipolar connector 6 poles and ground side outlet Pg16

ILME

992CNLZ06PO

€65.69 (€54.29 tax excl.)

6-pole multipole connectors + grounding, complete with Pg16 side outlet, wall mounting. They can be used in non-aggressive industrial environments and wherever there is a need for high quality connection. Part number: CNLZ06PO Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Simple insulated toe caps

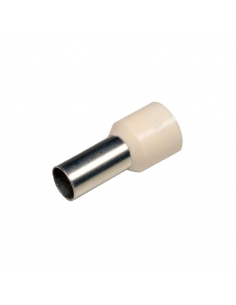

Bag of 10 pre-insulated 16mm toe
