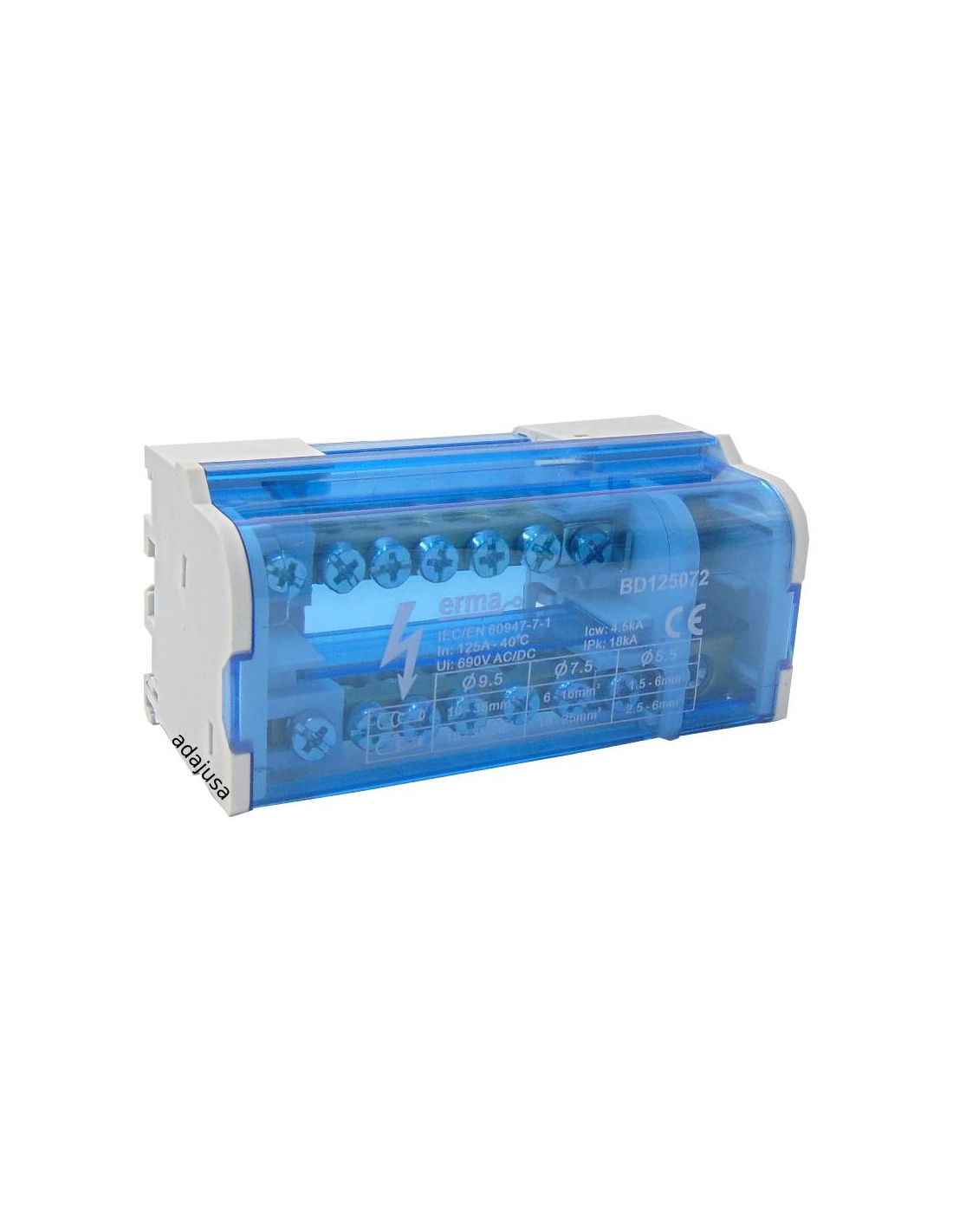

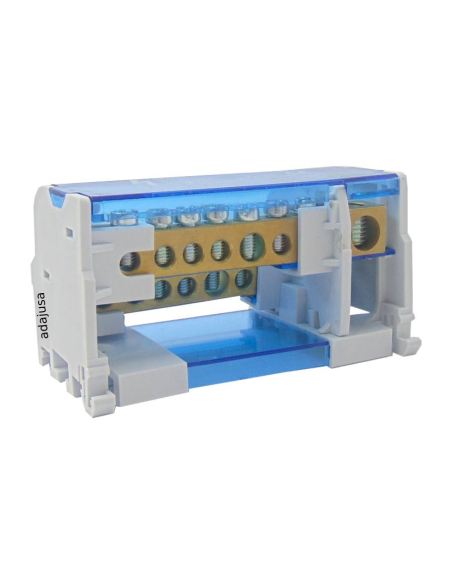

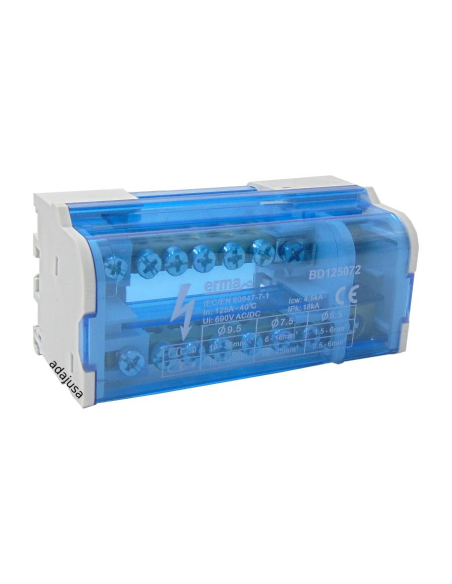

Bipolar connection distributor 7 outputs 125A Adajusa

Bipolar connection distributor 7 outputs 125A Adajusa

Bipolar connection distributor 7 outputs 125A Adajusa

Bipolar connection distributor 7 outputs 125A Adajusa

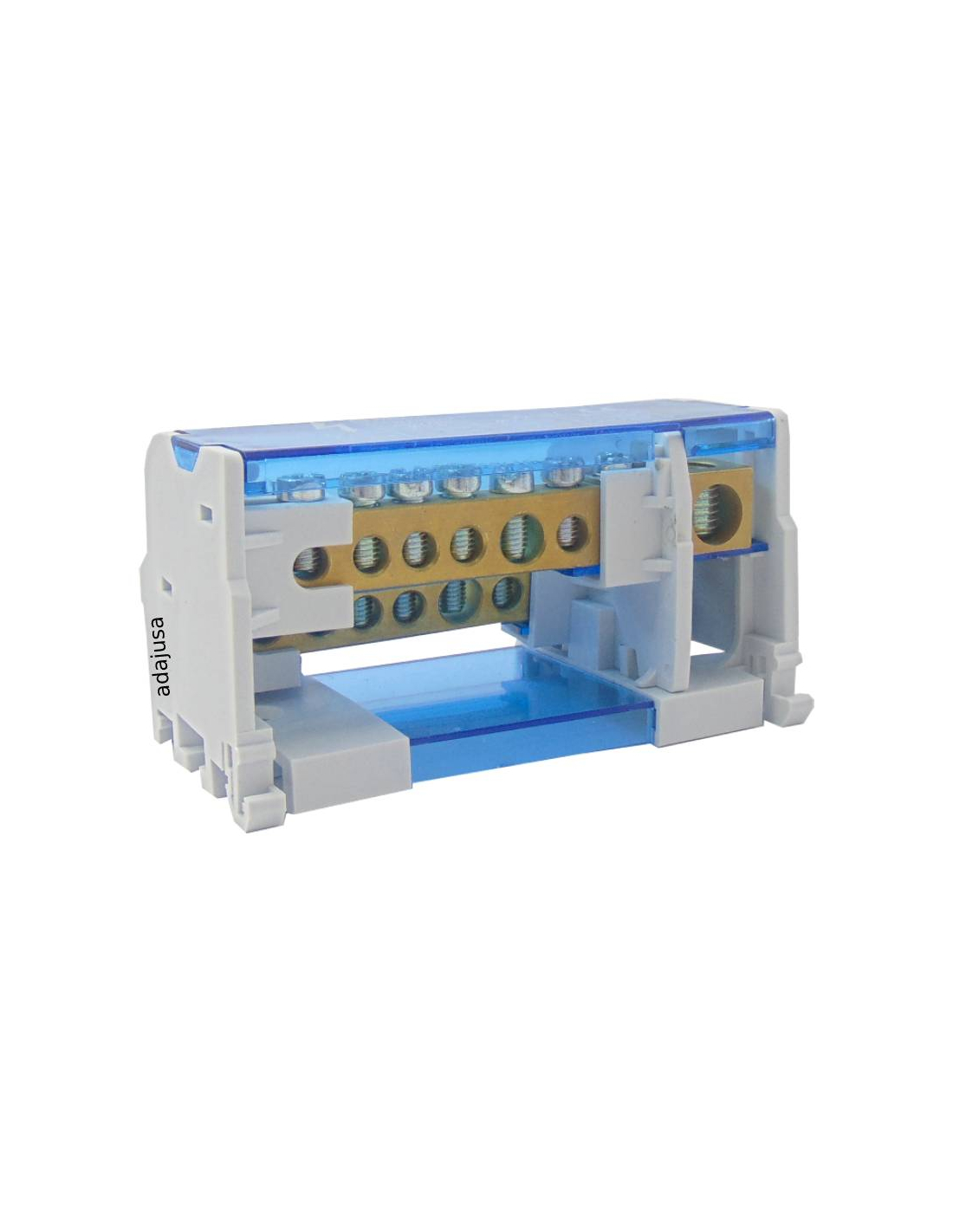

Two-pole distribution switch 6 outlets 125A

€10.35 Tax included

€8.55 tax excl.

BD125072

Two-pole (1 pole + neutral) electrical distribution board with 6 outputs and 1 input, suitable for currents up to 125A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD125072

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Bipolar electrical connection splitter with 6 outputs and 1 input, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

It has 2 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is simply fixed to the distributor with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

1 inlet Ø9.5mm for cables 10mm² to 35mm²
5 of Ø5,5mm for cables 1,5mm² to 6mm²
1 Ø9.5mm for cables from 10mm² to 35mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Manufacturer's reference: BD125072
Type: bipolar (1P+N)
Rated voltage: 690Vac/dc
Rated current: 125A
Icw: 4,5kA
Ipk: 30kA
Number of holes per busbar: 7
Holes per pole (holes x Ø mm): 1x9,5 / 5x5,5 / 1x9,5
Dimensions: 50x94x50mm
Halogen free
UL94-V0 flammability rating
Certification: CE, ROHS
Standard: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

1-pole bypass terminal 4x2.5-50mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 4x2.5-50mm² Gray

€6.88 (€5.69 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper conductors from 2.5 to 50 mm2 and aluminum conductors from 6 to 50 mm2. Gray color. Reference: FLEAL-50/2Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Neutral connection delivery man 11 outlets with cover

Electrical connection dealers

Neutral connection delivery man 11 outlets with cover

€5.22 (€4.31 tax excl.)

Electric connection delivery machine for distribution of neutral conductors, 11 holes with transparent polycarbonate lid, capable of supporting up to 50A, brass bar with steel screws and blue polyamide support. Fixation on panel or DIN rail. Manufacturer's Reference: 5011N. Representative image for illustrative purposes, the item supplied will...

Branch terminal 1 pole 2x35-150mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x35-150mm² Green/Yellow

€9.78 (€8.08 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper and aluminum conductors. Part No.: FLEAL-150/1ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double quick connection terminal 5-pole 32A OVOFT55 | ADAJUSA | price

Double quick connection terminal 5-pole 32A OVOFT55 | ADAJUSA | price 2

Electrical connection dealers

5-pole 32A double quick-connect terminal 5 poles

€1.91 (€1.58 tax excl.)

5-pole 32A, 400Vac double quick connection terminal for conductors from 0.5 to 4mm2. Screwless quick connection ensures a simple and safe electrical connection. Part number: OVOFT55 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

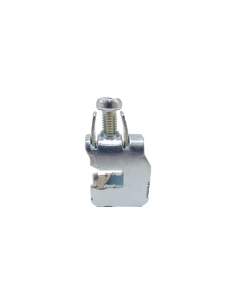

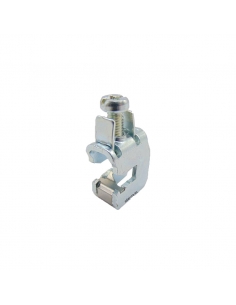

Direct mounting terminal 1.5-35mm2, 5mm plate | ADAJUSA

Direct mounting terminal 1.5-35mm2, 5mm plate | ADAJUSA 2

Electrical connection dealers

Direct mounting terminal 1.5-35mm2 plate thickness 5mm

€1.83 (€1.51 tax excl.)

Direct mounting terminal on copper plate for cables with a section of 1.5-35mm 2 . Mounting plate thickness 5mm.Reference: SZK35F5Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

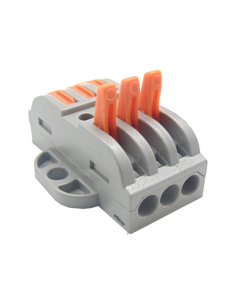

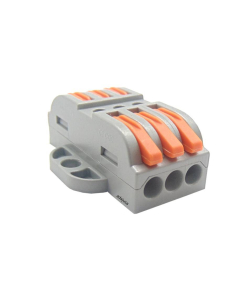

Double quick connection terminal 3 poles 32A OVOFT33 | ADAJUSA | price

Double quick connection terminal 3 poles 32A OVOFT33 | ADAJUSA | price 2

Electrical connection dealers

Double quick connection terminal 3 poles 32A

€1.14 (€0.94 tax excl.)

32A, 400Vac 3-pole quick-connect double terminal for conductors from 0.5 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Part number: OVOFT33 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Branch terminal 1 pole 4x1.5-16mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x1.5-16mm Green/Yellow

€3.07 (€2.54 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 1.5 to 16 mm 2 and aluminum conductors from 1.5 to 16 mm 2 . Green/yellow color. Reference: FLEAL-16/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Branch terminal 1 pole 2x1.5-16mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 2x1.5-16mm2 Green/Yellow

€1.78 (€1.47 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 1.5 to 16 mm 2 and aluminum conductors from 1.5 to 16 mm 2 . Green/yellow color. Reference: FLEAL-16/1ZSRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

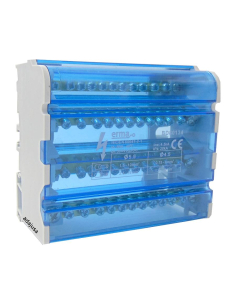

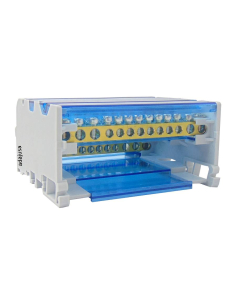

Four-pole connection distributor 13 outputs 80A Adajusa

Four-pole connection distributor 13 outputs 80A Adajusa 2

Electrical connection dealers

Four-pole distribution switch 8 outlets 80A

€14.42 (€11.92 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 8 outputs and 5 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD80134 Representative image for illustrative purposes, the item...

10mm strip

Connection Strips - Clemas

Black 10 mm terminal strip

€1.78 (€1.47 tax excl.)

10mm² 12-pole terminal strip, made of black polypropylene. For electrical connections. Part number: SF15A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16mm strip

Connection Strips - Clemas

25 mm black terminal strip

€4.27 (€3.53 tax excl.)

25mm² 12-pole terminal strip, made of black polypropylene. For electrical connections. Part number: SF60A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double quick connection terminal 8 poles 32A OVOFT88 | ADAJUSA : price

Electrical connection dealers

Double quick connection terminal 8-pole 32A

€3.05 (€2.52 tax excl.)

32A, 400Vac 8-pole quick-connect double terminal for conductors from 0.5 to 4mm2. Screwless quick connection ensures a simple and safe electrical connection. Part number: OVOFT88 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

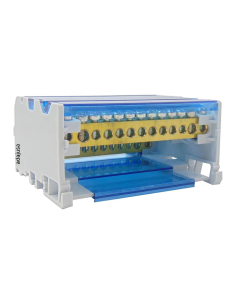

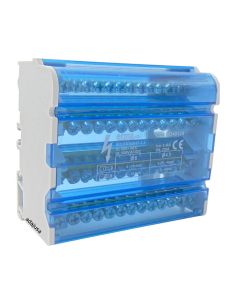

Four-pole connection distributor 13 outputs 40A | Adajusa

Four-pole connection distributor 13 outputs 40A | Adajusa 2

Electrical connection dealers

Four-pole 11-outlet 40A distribution switchgear

€20.36 (€16.83 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 11 outputs and 2 inputs, suitable for currents up to 40A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD40134 Representative image for illustrative purposes, the item...

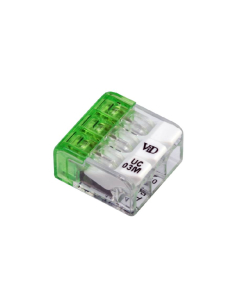

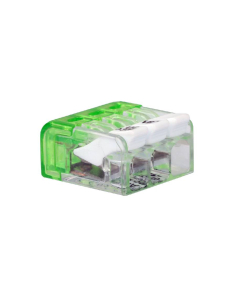

RVONK3 3-pole quick connection terminal 24A | ADAJUSA : price
