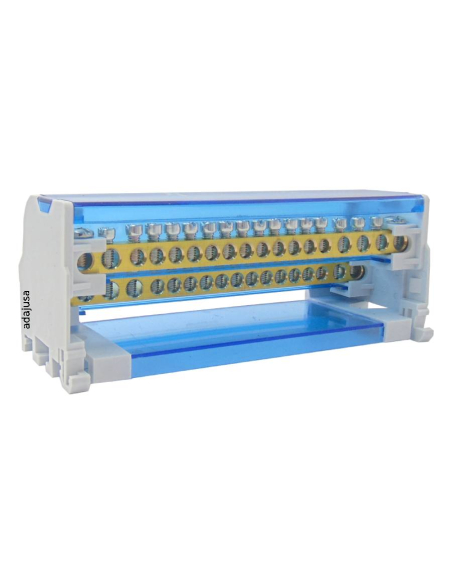

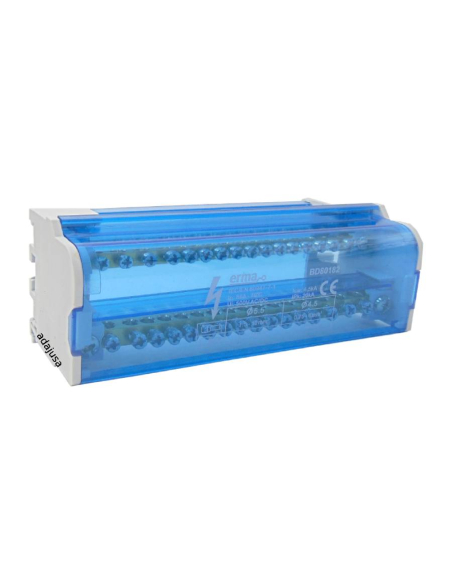

Bipolar connection distributor 18 outputs 80A Adajusa

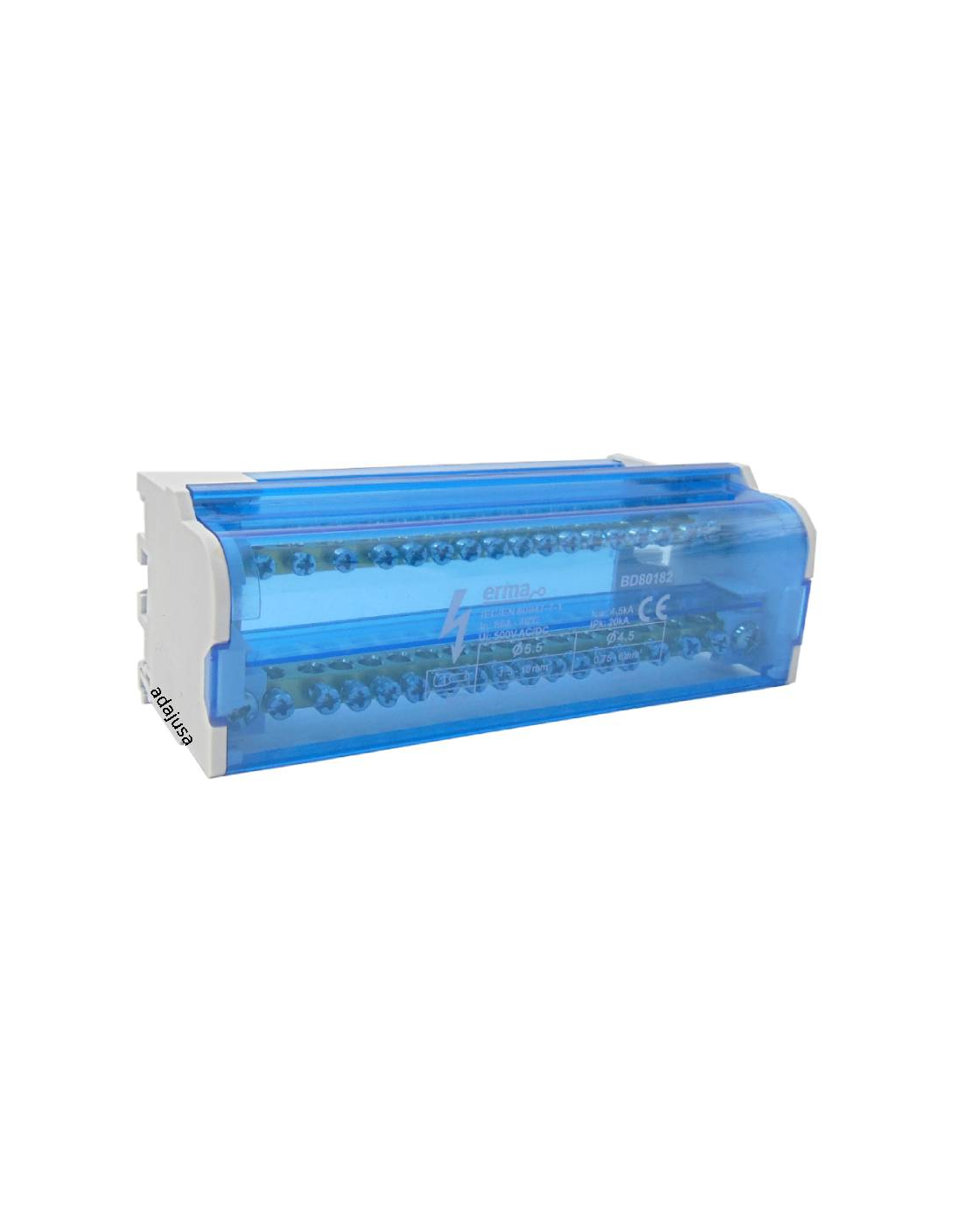

Two-pole connection distributor 12 outlets 80A

Name: Two-pole connection distributor 12 outlets 80A
Brand: ErMa
SKU: BD80182
Price: 9.74 EUR
Availability: InStock

€9.74 Tax included

8.05 tax excl.

BD80182

Two-pole (1 pole + neutral) electrical distribution board with 12 outputs and 6 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD80182

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

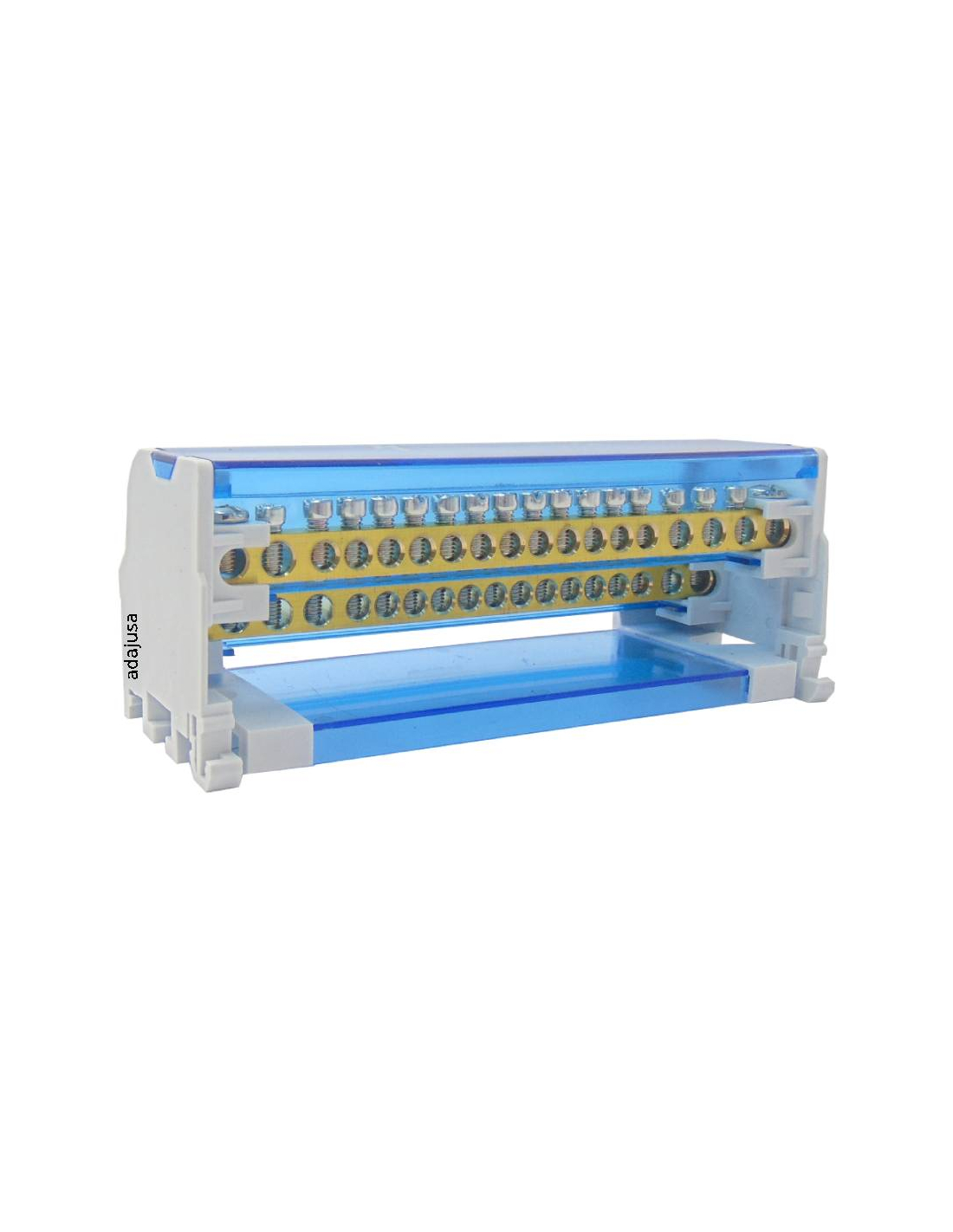

Bipolar electrical connection splitter, with 12 outputs and 6 inputs, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

It has 2 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

6 Ø5.5mm entries for cables 1.5mm² to 6mm²
12 Ø4mm for cables from 0.75mm² to 4mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Manufacturer's reference: BD80182
Type: bipolar (1P+N)
Rated voltage: 500Vac/dc
Rated current: 80A
Icw: 4,5kA
Ipk: 20kA
Number of holes per busbar: 18
Holes per pole (holes x Ø mm): 6x5.5 / 12x4
Dimensions: 50x130x50mm
Halogen free
UL94-V0 flammability rating
Certification: CE, ROHS
Standards: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Branch terminal 1 pole 4x1.5-16mm2 Gray | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x1.5-16mm Gray

TRACON

FLEAL-16/2

€3.07 (€2.54 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 1.5 to 16 mm 2 and aluminum conductors from 1.5 to 16 mm 2 . Gray. Reference: FLEAL-16/2Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Double quick connection terminal 8 poles 32A OVOFT88 | ADAJUSA : price

Electrical connection dealers

Double quick connection terminal 8-pole 32A

TRACON

OVOFT88

€3.05 (€2.52 tax excl.)

32A, 400Vac 8-pole quick-connect double terminal for conductors from 0.5 to 4mm2. Screwless quick connection ensures a simple and safe electrical connection. Part number: OVOFT88 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Connection Strips - Clemas

Black 10 mm terminal strip

TRACON

SF15A-H

€1.78 (€1.47 tax excl.)

10mm² 12-pole terminal strip, made of black polypropylene. For electrical connections. Part number: SF15A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrical connection dealers

Grounding dealer 11 outlets with cover

Generico-GAE

992-T1611

€5.12 (€4.23 tax excl.)

Electric connection delivery machine for distribution of ground conductors, 11 holes with transparent polycarbonate lid, brass bar with steel screws and green polyamide support. Fixation on panel or DIN rail. Manufacturer's reference: T1611. Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Electrical connection dealers

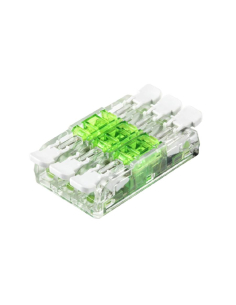

3-pin double quick connection terminal 0.5-4mm

TRACON

RVOGTT33

€0.79 (€0.65 tax excl.)

32A, 400Vac 3-pole quick connection double terminal for conductors from 0.5 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system. Part number: RVOGTT33 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Branch terminal 1 pole 6x16-95mm2 blue | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 6x16-95mm² Blue

TRACON

FLEAL-95/3K

€17.17 (€14.19 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-95/3KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 pole derivation terminal 6x2.5-50mm2 green | ADAJUSA

Bypass terminals

Bypass terminal 1-pole 6x2.5-50mm² Green/Yellow

TRACON

FLEAL-50/3ZS

€10.06 (€8.31 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper conductors from 2.5 to 50 mm2 and aluminum conductors from 6 to 50 mm2. Color green/yellow. Reference: FLEAL-50/3ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

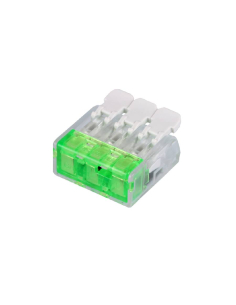

RVOG3 3 Pole Quick Connect Terminal 32A | ADAJUSA | price

Electrical connection dealers

Quick connection terminal 3 poles 0,2-4mm

TRACON

RVOG3

€0.35 (€0.29 tax excl.)

3-pole quick connection terminal 32A, 450Vac for conductors from 0.2 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system. Part number: RVOG3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Electrical connection dealers

Grounding dealer 30 exits

Generico-GAE

992-P1630

€15.19 (€12.55 tax excl.)

Electric connection delivery machine for distribution of ground conductors, 30 holes distributed in 2 connection bars of 15 holes, in brass with steel screws and green polyamide support. Fixation on panel or DIN rail. Manufacturer's reference: P1630. Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Branch terminal 1 pole 2x2.5-50mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x2.5-50mm² Gray

TRACON

FLEAL-50/1

€3.73 (€3.08 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper conductors from 2.5 to 50 mm2and aluminum conductors from 6 to 50 mm2. Gray color. Reference: FLEAL-50/1Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Connection Strips - Clemas

4 mm terminal strip

TRACON

S5A-H

€0.96 (€0.79 tax excl.)

12-pole 4mm² terminal strip, made of white polypropylene. For electrical connections. Part number: S5A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 2x35-150mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x35-150mm² Blue

TRACON

FLEAL-150/1K

€9.78 (€8.08 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper and aluminum conductors. Part No.: FLEAL-150/1KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

RVONK5 5-pole quick connection terminal 24A : ADAJUSA : price

RVONK5 5-pole quick connection terminal 24A : ADAJUSA : price 2

Electrical connection dealers

Quick connection terminal 5 poles 0,2-2,5mm

TRACON

RVONK5

€0.92 (€0.76 tax excl.)

5-pole 24A, 450Vac quick connection terminal for conductors from 0.2 to 2.5mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system. Part number: RVONK5 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications

Bipolar connection distributor 15 outputs 100A Adajusa

Bipolar connection distributor 15 outputs 100A Adajusa 2

Electrical connection dealers

Bipolar distribution switch 13 outputs 100A

ErMa

BD100152

€12.33 (€10.19 tax excl.)

Two-pole (1 pole + neutral) electrical distribution board with 13 outputs and 2 inputs, suitable for currents up to 100A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD100152 Representative image for illustrative purposes, the item...

Bypass terminals

Branch terminal 1 pole 2x2.5-35mm2 Blue

TRACON

FLEAL-35/1K

€2.21 (€1.83 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Color blue. Reference: FLEAL-35/1KRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Connection Strips - Clemas

Black 4 mm terminal strip

TRACON

SF5A-H

€0.99 (€0.82 tax excl.)

12-pole 4mm² terminal strip, made of black polypropylene. For electrical connections. Part number: SF5A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Electrical connection dealers

Bipolar distribution switch 13 outputs 100A

ErMa

BD100152

€12.33 (€10.19 tax excl.)

Four-pole connection distributor 8 outputs 80A Adajusa

Four-pole connection distributor 8 outputs 80A Adajusa 2

Electrical connection dealers

Four-pole 5-outlet 80A distribution switchgear

ErMa

BD80084

€9.61 (€7.94 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 5 outputs and 3 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD80084 Representative image for illustrative purposes, the item...

Electrical connection comb 1 pole magneto-thermal and differential circuit breakers | ADAJUSA | price

Electrical connection comb 1 pole magneto-thermal and differential circuit breakers | ADAJUSA | price 2

Connection combs

Electrical connection comb 1 pole 63A strip of 1 meter

TRACON

TFSS-1

€10.29 (€8.50 tax excl.)

1 poleelectrical connection comb for circuit breakers and differential circuit breakers. PIN type, maximum intensity 63A. Length 1 meter. Pitch 18mm, 56 modules. Part number: TFSS-1 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

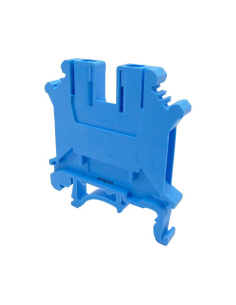

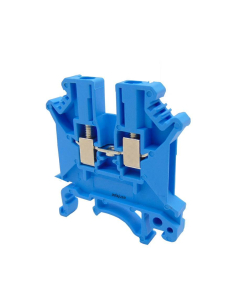

Terminal neutral 2.5 mm blue TSKA2.5-K : ADAJUSA : price

Terminal neutral 2.5 mm blue TSKA2.5-K : ADAJUSA : price 2

Screw terminal blocks - Series TSKA

Terminal 2.5 mm blue TSKA Series

TRACON

TSKA2,5-K

€0.39 (€0.32 tax excl.)

Terminal blue 2.5mm for DIN rail, screw connection and tightening by clamp. Quick installation and use for general applications. Part number: TSKA2,5-K Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

male pre-insulated faston terminal for cbles of different diameters

Faston terminals

Bag of pre-insulated terminals faston male for cable of 0.5-1.5 mm2

XBS

AS1

€3.85 (€3.18 tax excl.)

Bag of 100 faston male terminals pre-insulated of 6,3x0.8mm for cable from Ø 0,5mm² up to 1,5mm², made of polyamide and electrolytic copper estañado. Color: Blue/Red/YellowTerminal dimensions: 6.3x0.8mm reference: AS1Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Electrical connection dealers

Grounding dealer 11 outlets with cover

Generico-GAE

992-T1611

€5.12 (€4.23 tax excl.)

Terminal phase 2.5 mm gray TSKA2.5 | ADAJUSA | price

Terminal phase 2.5 mm gray TSKA2.5 | ADAJUSA | price 2

Screw terminal blocks - Series TSKA

Terminal 2.5 mm gray TSKA Series

TRACON

TSKA2,5

€0.39 (€0.32 tax excl.)

Terminal gray 2.5mm for DIN rail, screw connection and tightening by clamp. Quick installation and use for general applications. Part number: TSKA2,5 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

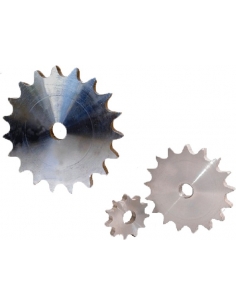

Toothed discs or simple toothed chains - ADAJUSA

Toothed discs or toothed crowns ISO DIN 606 - DIN 8187 - ASA DIN 8188

Simple toothed discs or crowns Z10 1/2 x 5/16 08B-1 ISO DIN 606

Generico-TE

DISCZ1008B-1

€1.89 (€1.56 tax excl.)

Toothed discs or simple toothed chains for roller chain 1/2" 08B-1 according to European standard DIN ISO 606 Reference: DISCO Z10 1/2 Teeth: 10 ISO: 08B-1 (1/2" - 5/16mm) Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

MCB circuit breakers 2 poles

MCB circuit breaker 2 poles 10A (2x10A) - Hyundai Electric

Hyundai Electric

HHGD63M2P010C

€6.99 (€5.78 tax excl.)

MCB circuit breaker 2 poles 10A curve C, for protection against short circuits and overloads in single-phase or biphasic installations. With an breaking capacity of 6000A. Active protection of both poles with individual status indication. Protects both drivers. It can be used in installations and assemblies up to 500V AC. Reference: HGD63-M2P010C...

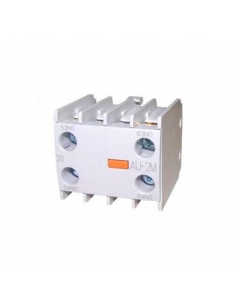

Block 2 NA+NC contacts for mini-contacts
