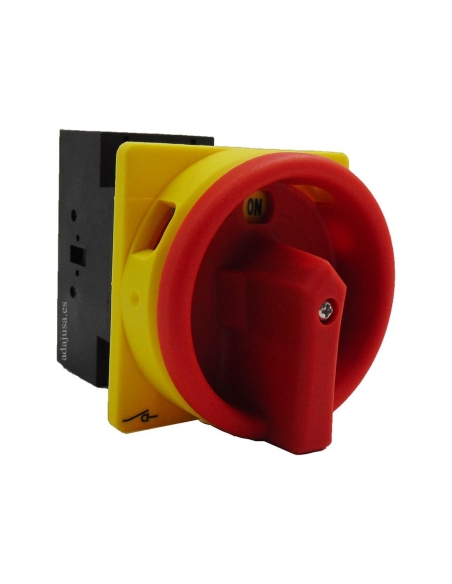

Three-phase Switch disconnector 100A (4 poles) yellow-red

€49.57 Tax included

€40.97 tax excl.

Rotary switch, 100A four-pole 4-pole main disconnector. 0-I, with yellow-red drive, lockable in position O. Front panel size 66x66 mm.

Suitable for interruption, connection and switching of electrical circuits, as well as direct starting of motors and main switch in machines.


Reference: MX-4100Y



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Rotary switch, 100A four-pole 4-pole disconnector , to be used as a main switch in machinery, AC motors, water and ventilation pumps, and general use. It has a high separation distance between contacts and a very fast response, this provides a very good response even in direct current circuits.

Characteristics:

  • Manufacturer/Supplier: OMU/Mixvill
  • Reference: MX-4100Y
  • Number of switch poles: 4
  • Nominal voltage: 400Vac, 50-60Hz
  • Maximum intensity: 100A
  • Power: 37kW
  • Locking possibility with 3 padlocks when off
  • Front protection grade: IP65
  • Contact protection grade: IP00
  • Front panel size: 66x66mm
  • Regulations: EN 60947-1, EN-60947-3, EN 60947-5-1, EN 60204-1





Material for professional use, install in compliance with the regulations in force at the installation site.
