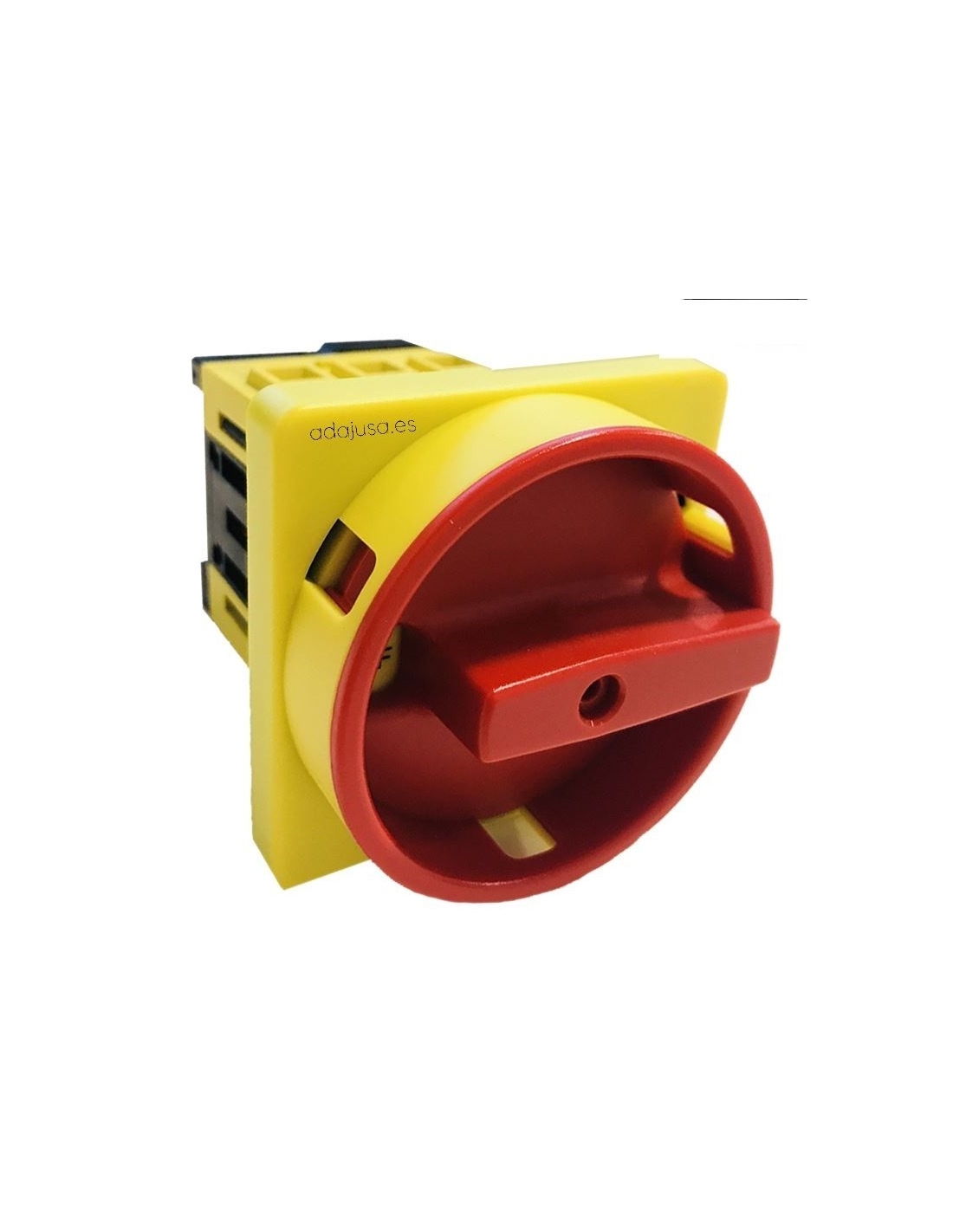

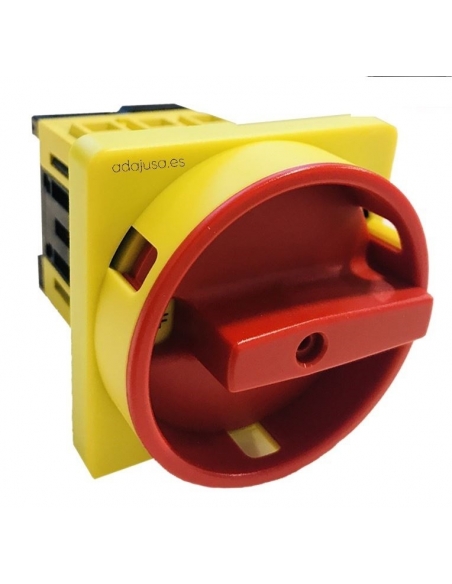

4-pole disconnector switch (tetrapolar) 40a for inductive loads (Electric motors) and general control. Rotary control 90º with two positions 0-1, 67x67mm, faceplate in yellow and lever in red. Possibility of locking by padlock.
This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.
Mounting by fixing panel (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.
This three-phase switch is suitable for machinery, engines and installations.
The supply includes:
- 3-pole switch: SQ0403003R
- Faceplate: 010/0001
- Side contact: PL004002
Padlock not included in the supply.
characteristics:
- Brand: Giovenzana
- Switch reference: SQ040003R
- Faceplate reference: 010/0001
- Additional pole reference: PL004002
- Number of poles: 3 + 1 additional
- Rated voltage Ue: 690V.
- Nominal intensity Ie (AC21A): 40a.
- Nominal thermal intensity ith: 63a.
- Rated interrupt capacity: 8kA.
- Contacts: Slow opening of double interrupt.
- Number of maneuvers / hours: 120.
- Mechanical durability: 100,000 maneuvers.
- Maneuver angle: 90º.
- Built-in assembly.
- Degree of protection:
- Controls type 1-4-4X: IP-65.
- Bornes: IP-20.
- Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14
Table of intensities and powers of employment:
- Use category AC-21A: 63a.
- Use category AC-22A: 63a.
- Use category AC-23A:
- Standard three-phase motors 230Vac: 45A
- Standard three-phase motors 400Vac: 50A
- Use category AC-3:
- Standard three-phase motors 230Vac: 45A
- Standard three-phase motors 400VAc: 40a
dimensions:
assembly:
Material for professional use, has to be installed respecting the regulations in force at the place of installation.
