Aluminum profile 30x30 cut to size

Name: Aluminum profile 30x30 cut to size
Brand: LIPRO
SKU: 10003
Price: 16.24 EUR
Availability: BackOrder

Special material, cut to size, delivery time approximately 5-7 days

€16.24 Tax included

13.42 tax excl.

10003

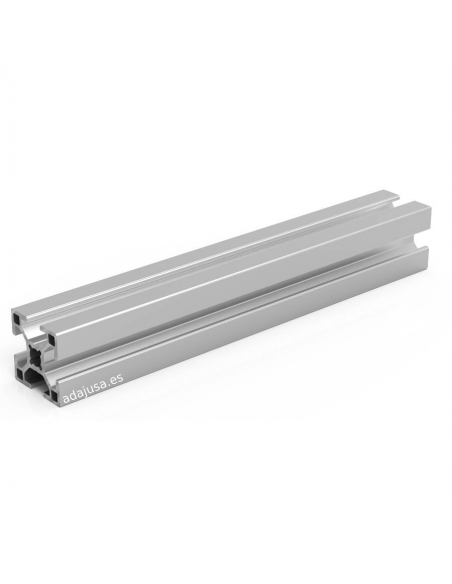

Structural profile of industrial aluminum of 30x30mm, groove of 8mm.

Anodized aluminum profile in natural color for industrial and general applications of 30x30mm, has a groove on each side for 8mm accessories.

Reference: 10003

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.

This measure cannot be supplied until after January 17 due to lack of product from the manufacturer. Sorry for the inconvenience.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Structural aluminum profile of 30x30mm for industrial applications and general use. It has an 8mm slot along its entire length for each of its four faces.

Made of high-strength aluminum, anodized in natural color (aluminum).

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

Perfil aluminio 30x30

Specifications:

Manufacturer/supplier: LIPRO/Metal Work
Reference: 10003
Dimensions: 30x30mm
Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
Minimum tensile strength (Rm): 195 N/mm2
Yield strength: Rp 0.2= 145 N/mm2
Modulus of elasticity (E): 70000 N/mm2
Anodizing thickness: 15 μm
Dimensional tolerance according to ISO-EN 755
Moment of inertia:
- Lx (cm⁴): 2.76
- Ly (cm⁴): 2.76
resistance module:
- Wx (cm³): 1.84
- Wy (cm³): 1.84
Profile area: 297.33 mm2
Mass (Kg/m): 0,77
Slot width: 8 mm
Number of slots: 4

Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.
