Aluminium profile 45x45
Aluminium profile 45x45

Aluminium profile 45x45 Cut to size

Special material, cut to size, delivery time approximately 5-7 days
€31.07 Tax included

25.68 tax excl.

10007

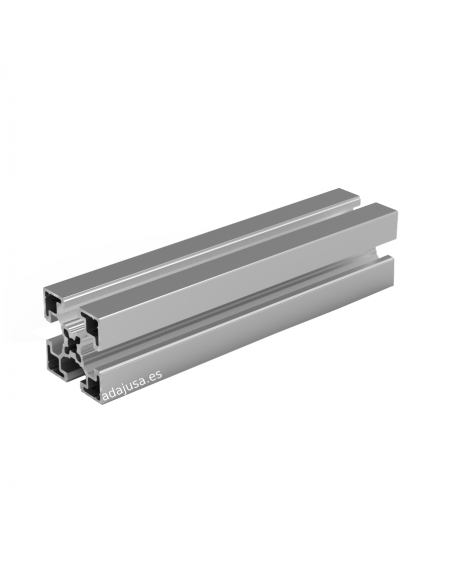

Structural profile of industrial aluminum of 45x45mm, groove of 10mm.

Reference: 10007

Lightweight anodized aluminum profile in natural color for industrial and general applications of 45x45mm, has a groove on each side for 10mm accessories.

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.




Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Lightweight structural aluminium profile of 45x45mm for industrial and general use applications. It has a 10mm groove in its entire length for each of its four faces.

Made of high-strength aluminum, anodized in natural color (aluminum).

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

Perfil aluminio 45x45 L

Specifications:

  • Manufacturer/distributor: LIPRO/Metal Work
  • Reference: 10007
  • Dimensions: 45x45mm
  • Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
  • Minimum tensile strength (Rm): 195 N/mm2
  • Yield strength: Rp 0.2= 145 N/mm2
  • Modulus of elasticity (E): 70000 N/mm2
  • Anodizing thickness: 15 μm
  • Dimensional tolerance according to ISO-EN 755
  • Moment of inertia:
    • Lx (cm⁴): 11.46
    • Ly (cm⁴): 11.46
  • resistance module:
    • Wx (cm³): 5.10
    • Wy (cm³): 5.10
  • Profile area: 604.85 mm2
  • Mass (Kg/m): 1,63
  • Slot width: 10 mm
  • Number of slots: 4

Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Heavy 45x45 aluminum profile
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 45x45 heavy cut to measure

LIPRO
10008
Starting from €41.87 (€34.60 tax excl.)
Heavy structural profile of aluminum of 45x45mm, groove of 10mm. Reference: 10008 Anodized aluminum profile for heavy loads in color natural for industrial and general applications of 45x45mm, has a groove on each side for 10mm accessories. The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All...
View
Aluminium profile 45x45 1 smooth face
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminium profile 45x45 1 smooth side cut to size

LIPRO
10009
Starting from €29.66 (€24.51 tax excl.)
Structural profile of industrial aluminum of 45x45mm 1 smooth face, groove of 10mm. Reference: 10009 Anodized aluminum profile in natural color for industrial and general applications of 45x45mm, has a groove for each of the non-smooth sides for accessories of 10mm. The main applications are the manufacture of structures, benches for machinery,...
View
Aluminium profile 45x45 1 curved face
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 45x45 curved face cut to size

LIPRO
10010
Starting from €26.15 (€21.61 tax excl.)
Structural profile of industrial aluminum of 45x45mm 1 curved face, groove of 10mm. Reference: 10010 Anodized aluminum profile in color natural for industrial and general applications of 45x45mm curved face, has a groove for each of the non-smooth sides for 10mm accessories. The main applications are the manufacture of structures, benches for machinery,...
View

16 other products in the same category:

Aluminium profile 80x80
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 80x80 cut to size

LIPRO
10023
Starting from €70.79 (€58.50 tax excl.)
Structural profile of industrial aluminum of 80x80mm, groove of 10mm. Reference: 10023 Anodized aluminum profile in natural color for industrial and general applications of 80x80mm, has a groove on each side for 10mm accessories. The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a...
View
Aluminium profile 30x30 - ADAJUSA
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 30x30 cut to size

LIPRO
10003
Starting from €16.24 (€13.42 tax excl.)
Structural profile of industrial aluminum of 30x30mm, groove of 8mm. Anodized aluminum profile in natural color for industrial and general applications of 30x30mm, has a groove on each side for 8mm accessories.Reference: 10003 The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a...
View
Aluminium profile 30x90
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 30x90 cut to size

LIPRO
10006
Starting from €36.34 (€30.03 tax excl.)
Structural profile of industrial aluminum of 30x90mm, groove of 8mm. Reference: 10006 Anodized aluminum profile in natural color for industrial and general applications of 30x90mm, has a groove on each side for 8mm accessories. The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a...
View

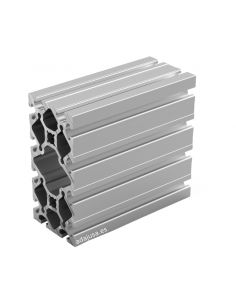

Aluminium profile 90x180
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 90x180 cut to size

LIPRO
10020
Starting from €302.10 (€249.67 tax excl.)
Structural profile of aluminum of 90x180mm, groove of 10mm. Reference: 10020 Anodized aluminum profile for heavy loads in color natural for industrial and general applications of 90x180mm, has a groove on each side for 10mm accessories. The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this...
View
Aluminium profile 22.5x180
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminum profile 22.5x180 cut to size

LIPRO
10019
Starting from €128.71 (€97.41 tax excl.)
Heavy structural profile of aluminum of 22.5x180mm, groove of 8/10mm. Anodized aluminum profile for heavy loads in natural color for industrial and general applications, has a groove on each side for accessories of 8/10mm.Reference: 10019 The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All...
View

Customers who bought this product also bought:

Aluminium profile 45x90 Lightweight
Special material, cut to size, delivery time approximately 5-7 days
Aluminum profiles

Aluminium profile 45x90 Light cut to measure

LIPRO
10011
Starting from €59.05 (€48.80 tax excl.)
Lightweight structural profile of aluminum of 45x90mm, groove of 10mm. Reference: 10011 Anodized aluminum profile for heavy loads in color natural for industrial and general applications of 45x90mm, has a groove on each side for 10mm accessories. The main applications are the manufacture of structures, benches for machinery, workbenches and roller...
View

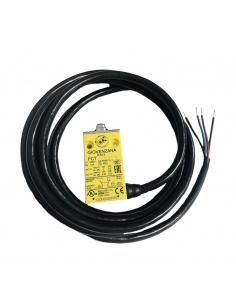

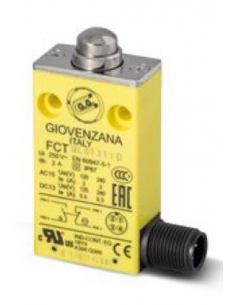

Short piston end FCT series with cable - Giovenzana Short piston end FCT series with cable - Giovenzana 2
