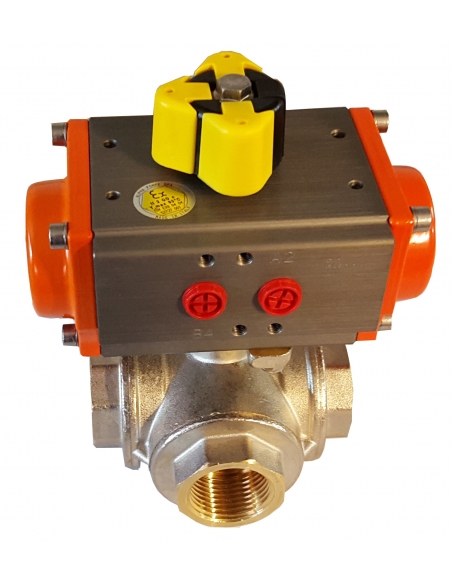

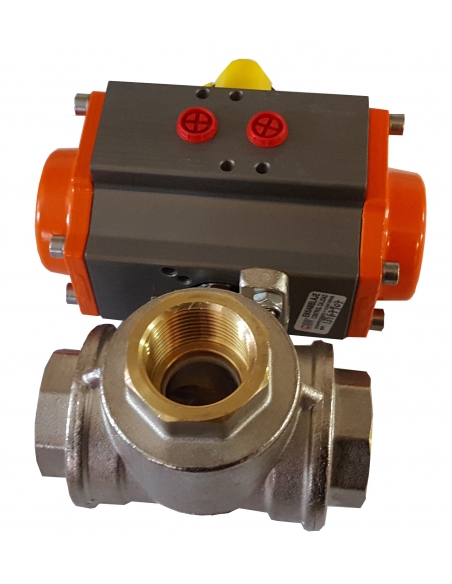

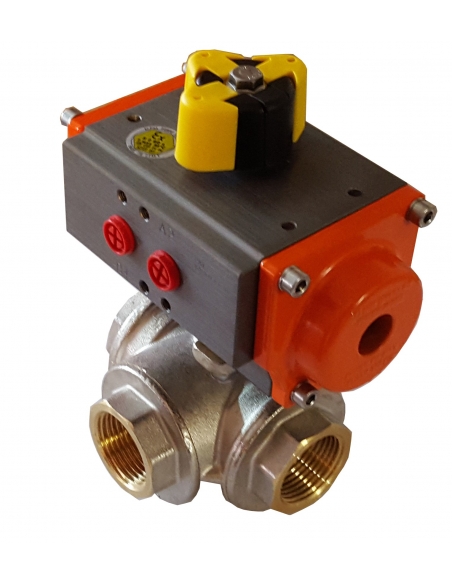

1/4 3/2-way "L" valve with pneumatic rotary actuator

Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work

Name: Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work
Brand: Metal Work
SKU: VB3L2IA025050
Price: 357.2162 EUR
Availability: PreOrder

€357.22 Tax included

€295.22 tax excl.

Stainless steel 1" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: Z33VB3L2IA025050D/ W0900300084

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1" ball valve, 3 way 2 positions, 3/2, made of stainless steel, with "L" valve configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 2 to 1 remaining the 3 closed; in the other position, the passage is allowed from 1 to 3 or 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Technical specifications:

Manufacturer of the assembly: Metal Work.
Manufacturer's reference: Z33VB3L2IA025050D
Type of actuator: Ø50 double acting pneumatic.
Valve type: 3 way 2 positions (3/2).
Valve configuration: "L" shaped.
Thread type: G 1" female.
Valve body: stainless steel AISI 316
Ball: stainless steel
Seals: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to actuator)
Temperature: -20ºC to +80ºC

Dimensiones actuadores neumaticos con valvulas 3 vías

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

L-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB025050

€315.42 (€260.68 tax excl.)

1" dial valve, 3 ways 2 positions, 3/2, with "L" configuration, with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB025050D / W0900300125 Representative...

1/4 3/2-way "L" valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

T-way valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2LB025050

€315.42 (€260.68 tax excl.)

1" dial valve, 3-way 2-position, 3/2, with "T" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2LB025050D / W0900300135 Representative image...

Valves with pneumatic actuators

Stainless steel T-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2IA025050

€310.29 (€256.44 tax excl.)

1" valve in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2IA025050D Representative...

16 other products in the same category:

Valves with pneumatic actuators

Valve 1/4 3/2-way L- with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB008032

€185.89 (€153.63 tax excl.)

Valve 1/4" dial , 3-way 2-position, 3/2, with "L" configuration, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB008032D / W0900300121...

Valves with pneumatic actuators

Stainless steel T-valve 1/2 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2IA015032

€226.63 (€187.30 tax excl.)

1/2" valve in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2IA015032D...

1/4 2/2-way valve with pneumatic rotary actuator

1/4 2/2-way valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

3/8 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC010032D

€139.66 (€115.42 tax excl.)

Valve of 3/8" of sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC010032D / W0900300102 Representative image for...

Valves with pneumatic actuators

Angled seat valve 1 NC actuator in technopolymer - Aignep

Aignep

X2Y0910630

€142.43 (€117.71 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Valves with pneumatic actuators

Valve 1/2 2/2 way stainless steel with actuator pneumatic rotary - Metal Work

Metal Work

VB22IA015032D

€156.96 (€129.72 tax excl.)

Stainless steel valve 1/2" ball, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: Z33VB22IA015032D Representative image for...

Valves with pneumatic actuators

Valve 1 1/4 2/2 ways stainless steel with pneumatic rotary actuator - Metal Work

Metal Work

VB22IA032063D

€249.95 (€206.57 tax excl.)

Stainless steel valve with 1 1/4" dial, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22IA032063D Representative image for...

Valves with pneumatic actuators

Compact valve for fluids 1 NC with pneumatic actuator Fluxa series - Aignep

Aignep

51100

€84.74 (€70.03 tax excl.)

Compact seat valve, with simple acting pneumatic actuator , 40mm diameter, and normally closed (NC), with 1" thread. FKM joints. The actuator body is made of anodized aluminum alloy and is pneumatically actuated. The valve is made in brass.Reference: 51100 Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Valves with pneumatic actuators

2 3/2-way T-valve with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2LB050063

€853.81 (€705.63 tax excl.)

2" dial valve, 3-way 2-position, 3/2, with "T" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2LB050063D / W0900300138 Representative image...

Valves with pneumatic actuators

Valve 2 3/2-way L with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB050063

€853.81 (€705.63 tax excl.)

Valve 2" dial , 3-way 2-position, 3/2, with "L" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB050063D / W0900300128 Representative...

Valves with pneumatic actuators

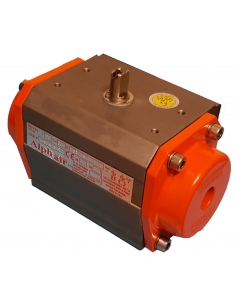

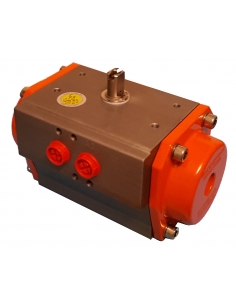

Rotary actuator diameter 85 - Metal Work
