Three-phase gear motor 0.18kW 0.25hp 230/400Vac 1500 rpm ratio 20 T30 (70 rpm)
Three-phase gear motor 0.18kW 0.25hp 230/400Vac 1500 rpm ratio 20 T30 (70 rpm)
Three-phase gear motor 0.18kW 0.25hp 230/400Vac 1500 rpm ratio 20 T30 (70 rpm)
Three-phase gear motor 0.18kW 0.25hp 230/400Vac 1500 rpm ratio 20 T30 (70 rpm)

Three-phase Gear motor 0.18kW 0.25CV 230/400Vac 1500 rpm ratio 25 T30 (56 rpm )

€145.02 Tax included

€119.85 tax excl.

Three-phase Gear motor 0.18kW 0.25HP 230/400Vac B14, reducer size 30 with reduction ratio I:25 that allows output revolutions of approximately 56 rpm .

  • Motor: three-phase 0.18Kw 230/400Vac 1500 rpm
  • Reducer : size 30 I:25
  • For output shaft: Ø14mm

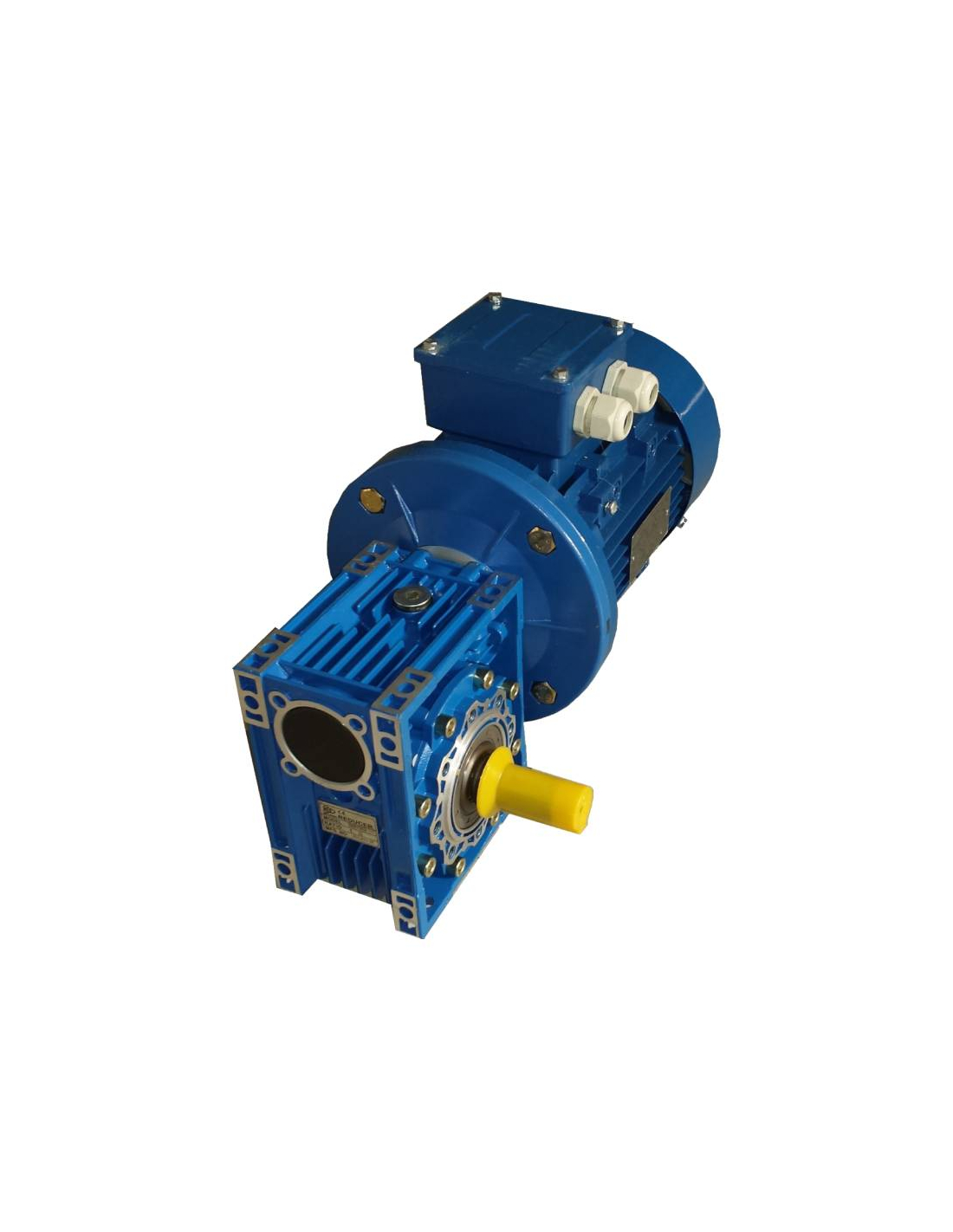

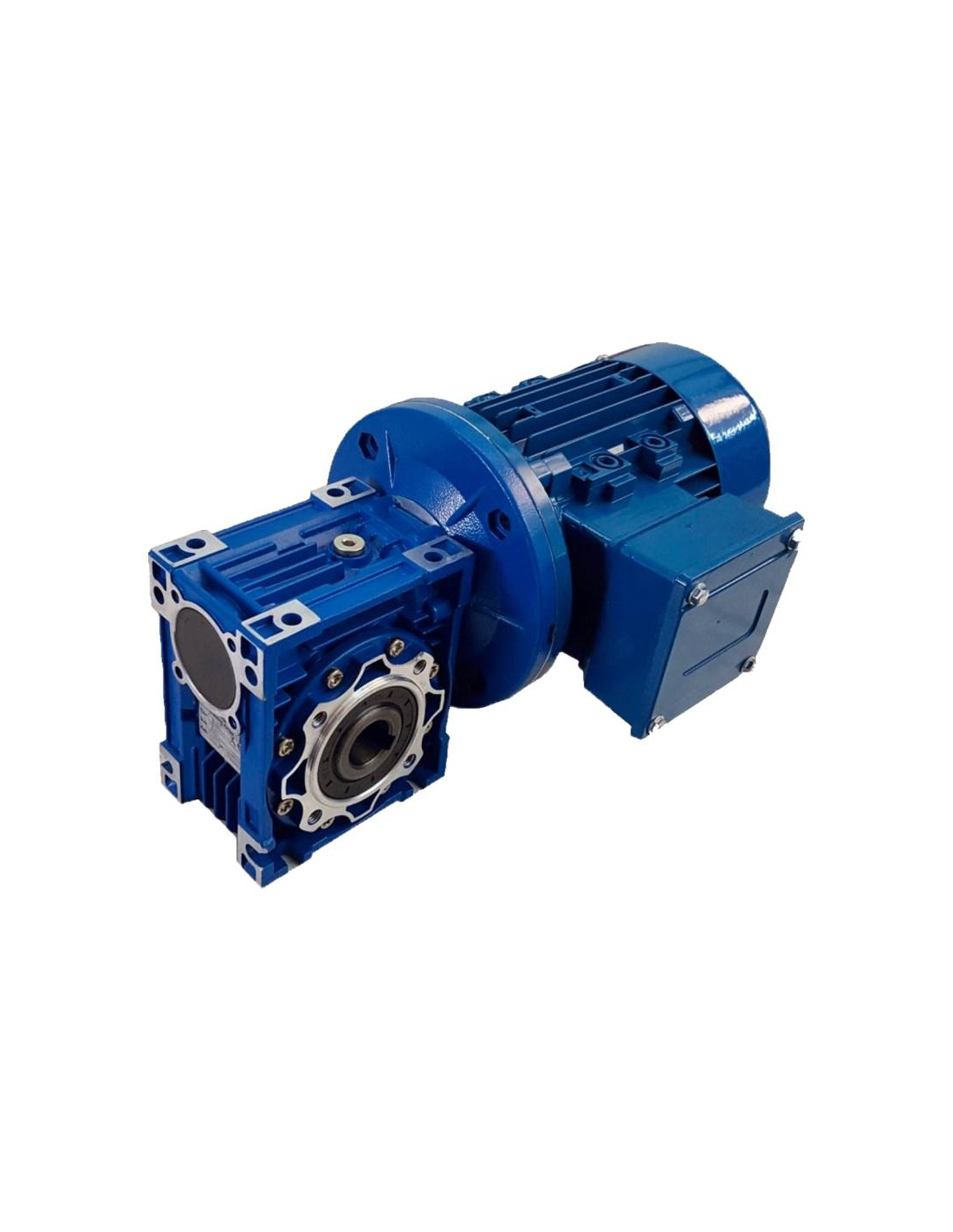

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase Gear motor 0.18kW 0.25HP 230/400Vac, reducer size 30 with reduction ratio I:25 that allows an output of approximately 56 rpm at its output.

Engine technical characteristics:

  • Motor: Three-phase.
  • Nominal voltage: 230/400Vac 50/60Hz.
  • Nominal power: 0.18kW 0.25HP.
  • Revolutions: 1400 rpm .
  • Flanges: B14

Technical characteristics of the reducer:

  • Reducer type: worm gear.
  • Reducer size: 30.
  • Reduction ratio: 25
  • Final revs: 56 rpm .
  • Output torque: 8.4 Nm.
  • Service factor: 3.3
  • For output shaft: Ø14mm

The output shaft is not included in the supply and must be ordered separately. As with all asynchronous electric motors, it is mandatory to install a motor protection device to prevent damage due to overload.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems .

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site
